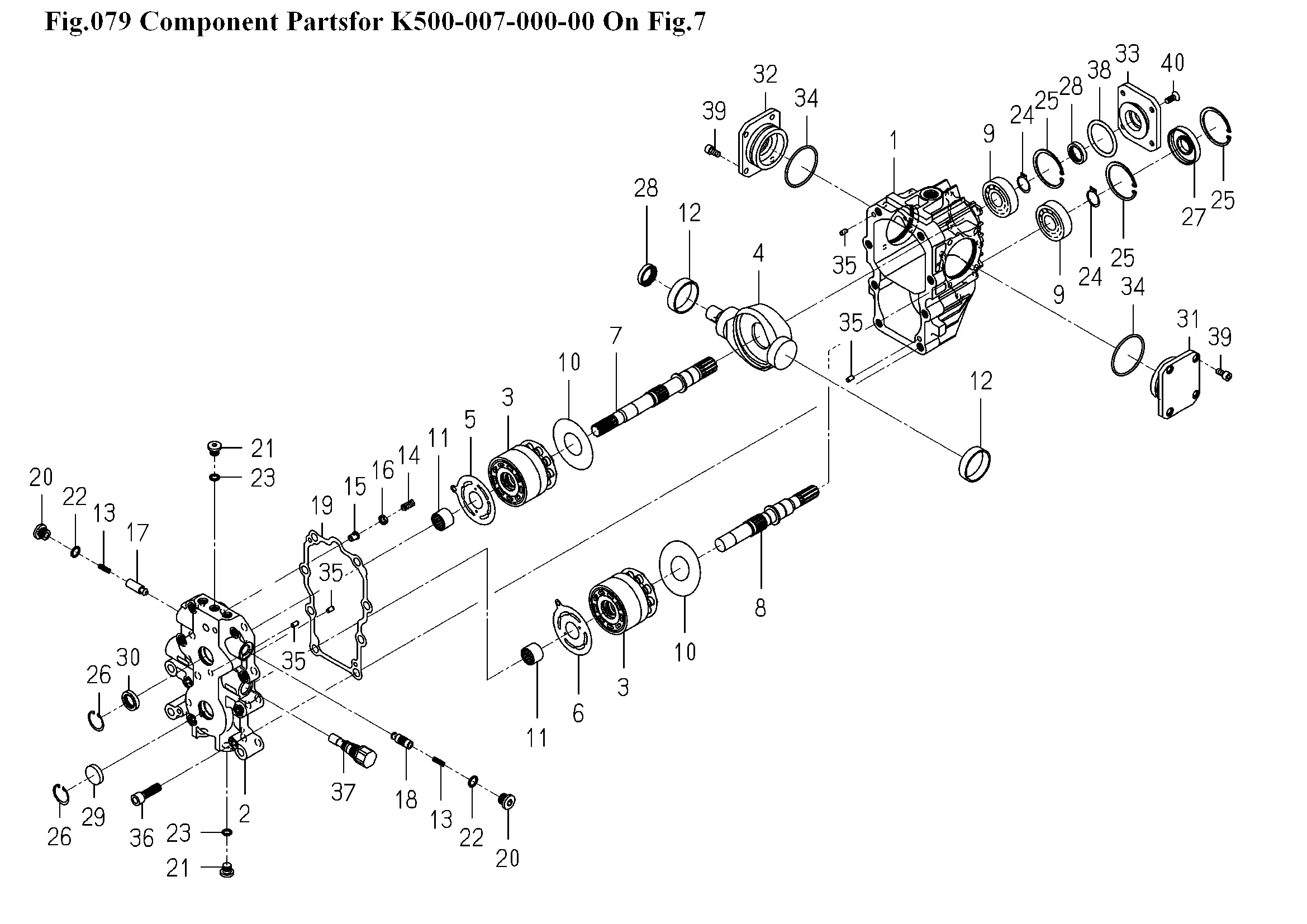

Einzelteile Hydrostat K500-007-000-00
Ersatzteile (40 Teile)
1
K500-007-001-00
2
K500-007-004-00
3
K500-003-300-00
4
K500-003-006-00
5
PLATE/VALVE/PUMP
6
PLATE/VALVE/MOTOR
7
K500-003-012-00
8
K500-003-013-00
9
BEARING,RB/6305
10
PLATE/THRUST
11
NEEDLE
12
K500-001-017-00
13
SPRING/HC030
14
SPRING/HC021
15
K510-003-022-00
16
K510-003-037-00
17
POPPET/CHECK
18
K500-007-023-00
19
GASKET
20
PLUG(G3/8)
21
PLUG(PF1/4)
22
O-RING/1B,P14
23
O-RING/1B,P11
24
RING,SNAP/25 C
25
RING/SNAP/R62
26
RING,SNAP/32 C
27
SEAL/OIL
28
SEAL,OIL/TC25357
29
CAP/32X7
30
OIL SEAL
31
K500-007-034-00
32
K500-007-035-00
33
K500-007-025-00
34
O-RING/1A,G65
35
K510-001-036-00
36
K500-001-039-00
37
K500-001-100-00
38
O-RING/1A,P52
39
K500-007-039-00
40
K510-003-038-00
