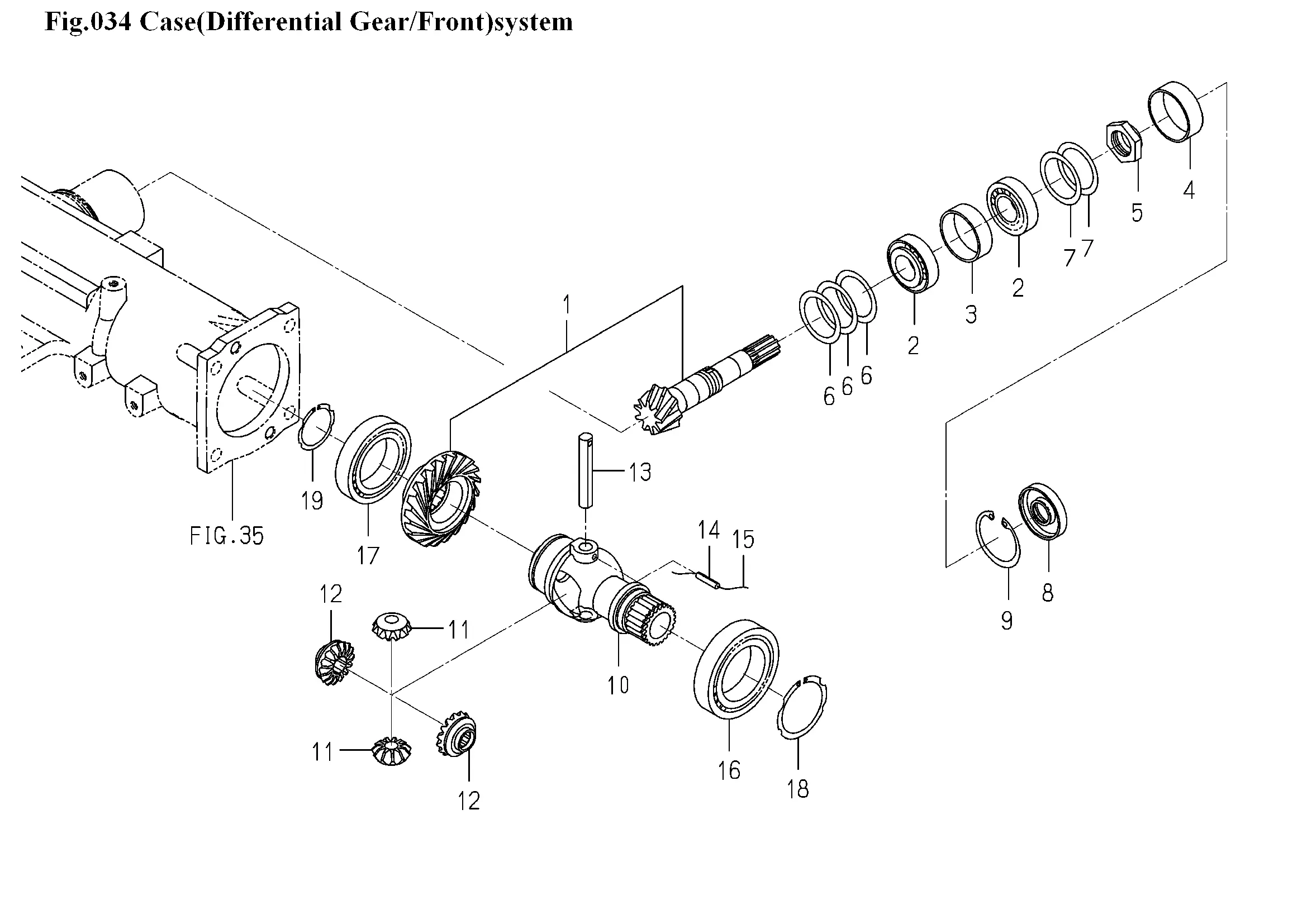

Teller-Kegelrad, Differenzial
Ersatzteile (18 Teile)
1
GEAR/09X20 SET
2
BEARING/TAPERROLLER
3
COLLAR/46X51X16
4
COLLAR/48X52X17
5
NUT/M25
6
SHIM (C)
7
SHIM D T=0.1
8
SEAL,OIL/21
9
RING,SNAP/52 C
10
CASE/DIFF
11
1614-432-003-20
12
1675-432-001-20
13
PIN/12X75
14
PIN,SPRING/5X25 W
16
BEARING/BALL/6011C
17
BEARING/BALL/6010C
18
V706-140-055-00
19
RING,SNAP/S40
