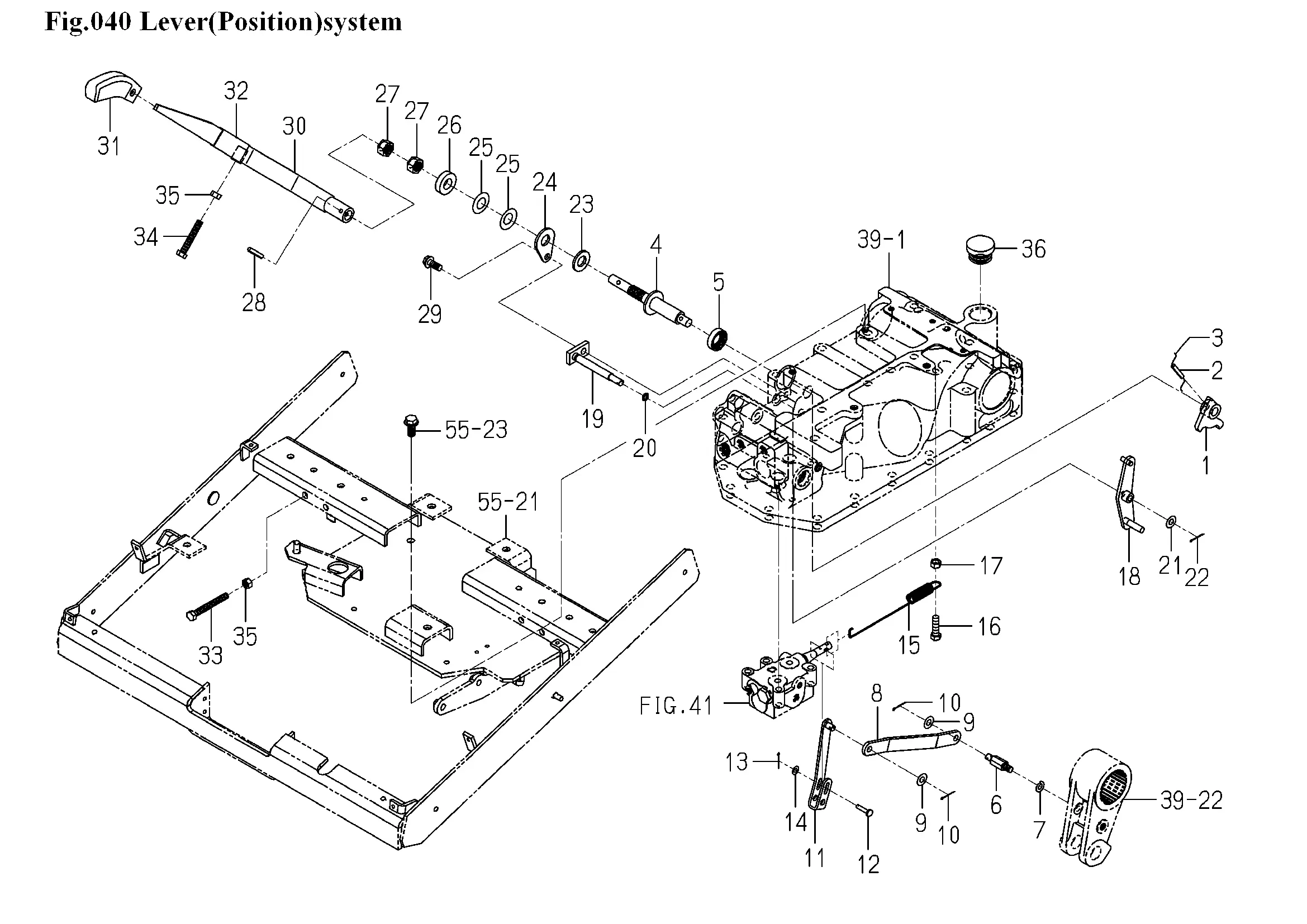

Steuerung, Heckaushebung
Ersatzteile (35 Teile)
1
1805-504-210-00
2
PIN,SPRING/5X25 W
4
1805-504-240-20
5
SEAL,OIL/TC18308
6
PIN
7
WASHER,SP/M8
8
1805-504-001-00
9
WASHER,PL/M8
10
PIN,SPLIT/2X20
11
LINK/SPOOL COMP
12
1614-503-005-00
13
PIN,SPLIT/2X20
14
V411-260-005-00
15
SPRING/HE172
16
V231-360-803-00
17
NUT/M8
18
1805-504-220-00
19
1805-504-200-00
20
O-RING/1A,P7
21
WASHER,PL/M8
22
PIN,SPLIT/2X20
23
1763-505-002-20
24
1821-504-012-10
25
1614-531-004-00
26
1821-504-011-00
27
V334-260-014-00
28
PIN,SPRING/5X25 W
29
V231-360-802-00
30
1821-504-230-10
31
1824-504-007-00
32
INSULATOR/LEVER/SUB
33
W201-260-806-00
34
BOLT/M 8X50
35
NUT/M8
36
CAP/OIL(30)
