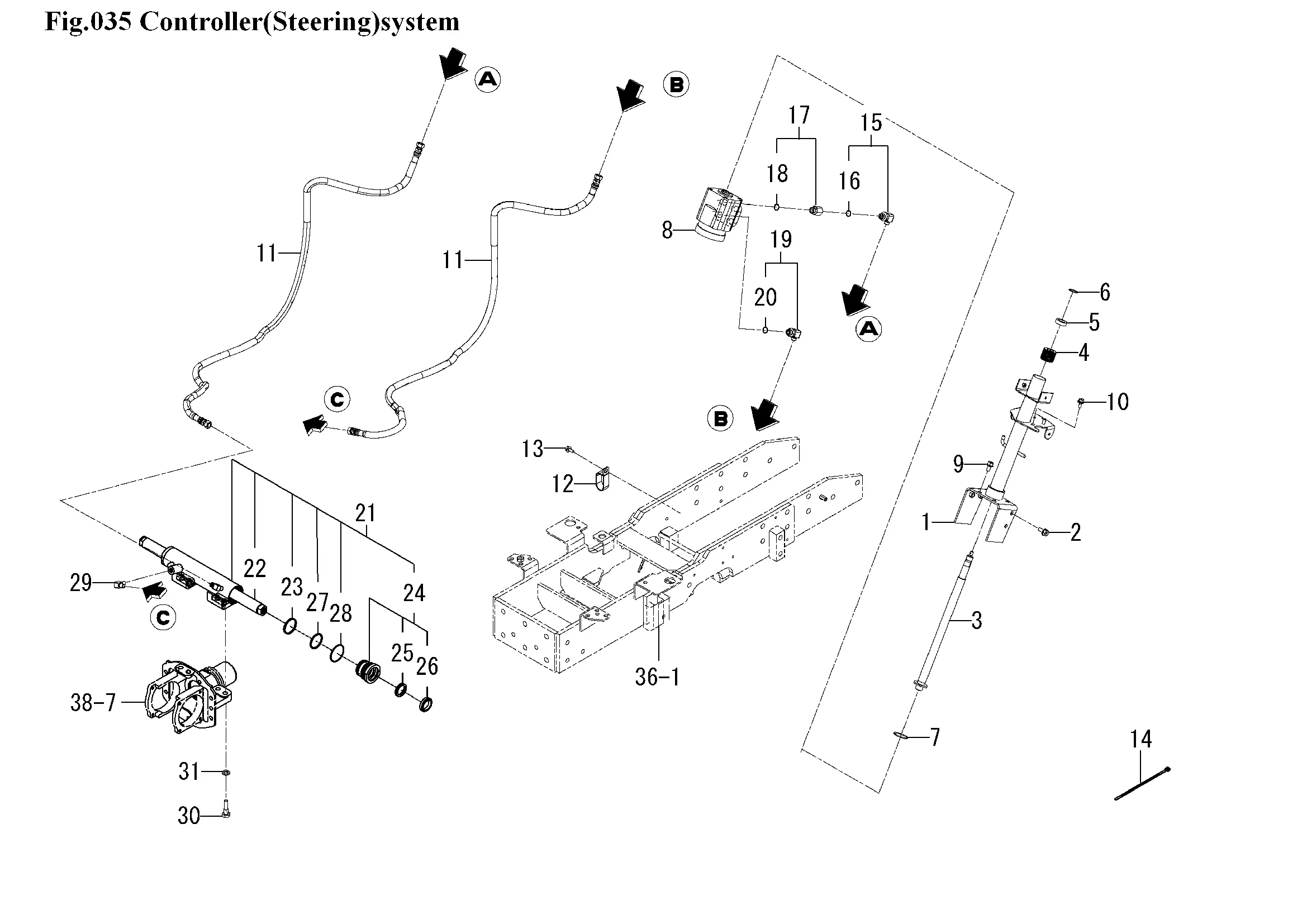

Hydraulische Lenkung
Ersatzteile (31 Teile)
1
1837-407-210-10
2
V231-361-002-00
3
1806-407-220-00
4
1429-406-205-10
5
WASHER/20X32X09
6
WASHER/20X25X01
7
O-RING/1A,P36
8
1646-407-670-20
9
V231-361-001-60
10
BOLT,SP/M8X20
11
1837-407-600-10
12
CLAMP/28X55
13
FLANGEBOLT/M8X16
14
1342-402-006-00
15
ELBOW/90DEG ASSY
16
O-RING/1B,P14
17
ADAPTER/G3/8 ASSY
18
O-RING/1B,P14
19
ELBOW/90DEG ASSY
20
O-RING/1B,P14
21
K167-007-000-10
22
ROD/PISTON COMP
23
PACKING/PISTON
24
COVER/ROD SET
25
PACKING/ROD
26
SEAL/DUST
27
O-RING/1B,P44
28
O-RING/1A,S53
29
ADAPTER/90DEG/PUMP
30
1763-410-006-10
31
WASHER,SP/M12
