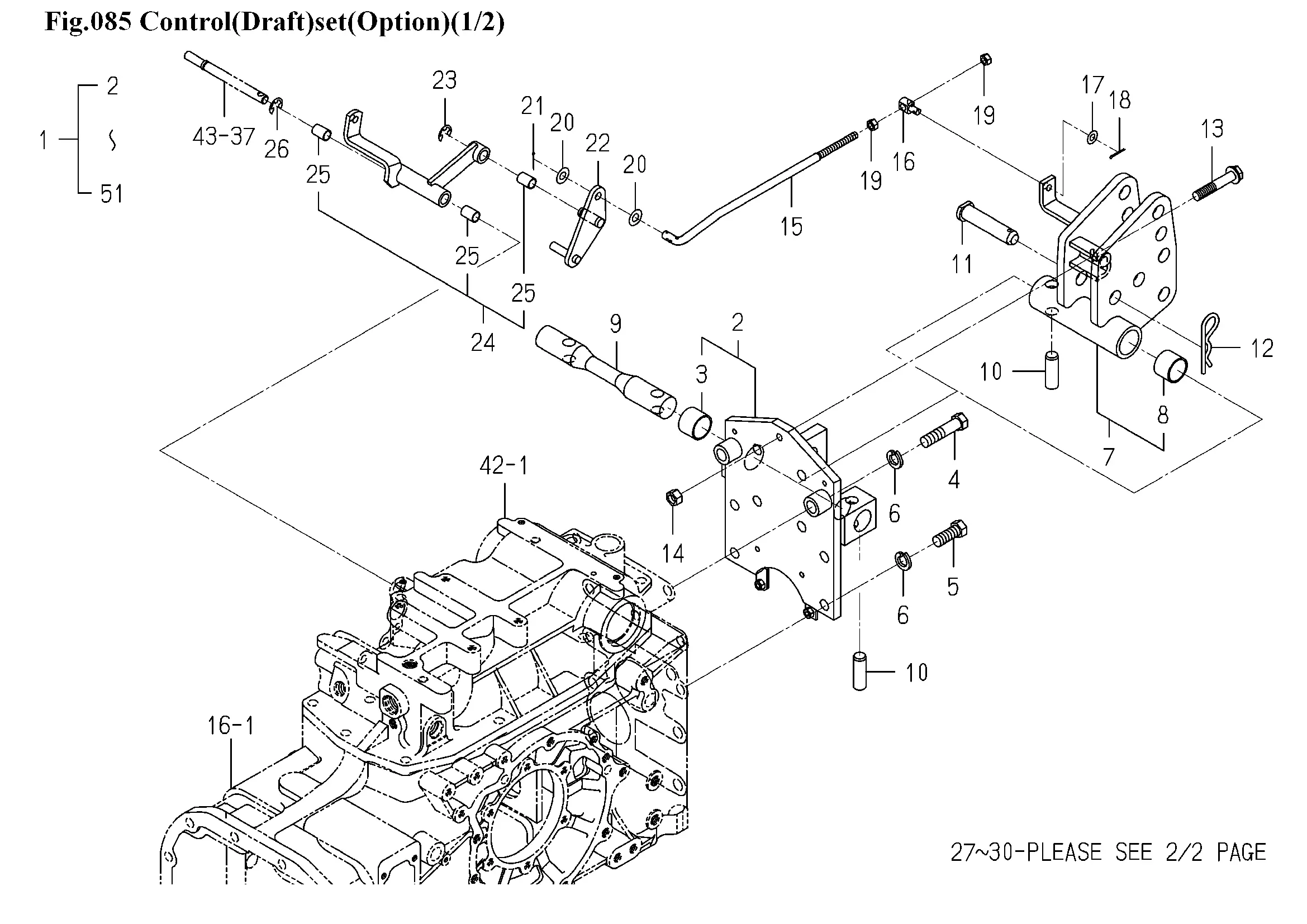

Control(Draft)set(Option)(1/2)
Ersatzteile (51 Teile)
1
CONTROL/DRAFT SET
2
1837-506-610-00
3
BUSH/30X34X25
4
BOLT/M14X60/7T
5
BOLT/M14X35/7T
6
WASHER,SP/M14
7
1801-506-230-00
8
BUSH/30X34X25
9
1742-506-001-10
10
PIN/16X50
11
PIN/19X86
12
PIN,HAIR (19) *
13
V231-361-206-50
14
V304-460-012-00
15
1742-506-002-10
16
PIN
17
WASHER,PL/M8
18
PIN,SPLIT/2.5X20
19
NUT/M8
20
V411-260-010-00
21
PIN,SPLIT/2X20
22
1742-506-220-10
23
V710-140-010-00
24
1837-506-640-00
25
1560-511-015-10
26
V710-140-010-00
27
ROD/DRAFT
28
WASHER,PL/M8
29
V500-163-002-00
30
PIN,SPLIT/2X20
31
1785-506-220-00
32
1600-505-007-10
33
PLATE
34
1742-506-250-00
35
SPRING/WASHER
36
V411-260-010-00
37
V335-260-010-00
38
1837-506-210-10
39
INSULATOR/LEVER/SUB
40
GRIP/SUB
41
BUSH/16X24X16
42
1785-506-001-00
43
PIN,SPRING/8X28 W
44
1837-504-230-00
45
1646-640-057-00
46
JOINT/BALL/M08/LH
47
NUT/M8/7T
48
NUT/LH/M08
49
WASHER,PL/M8
50
WASHER,SP/M8
51
NUT/M8/7T
