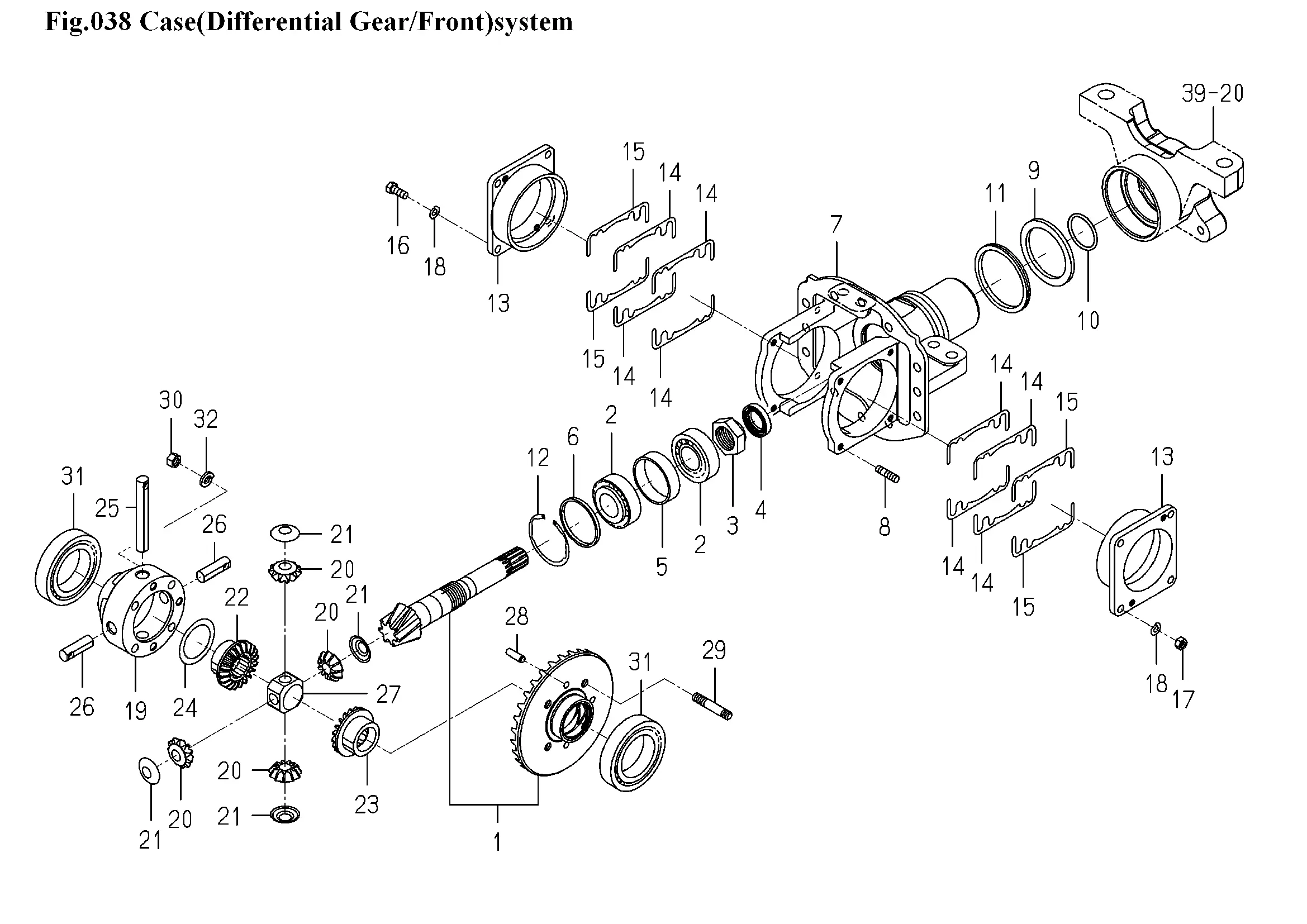

Teller-Kegelrad, Differenzial
Ersatzteile (32 Teile)
1
1802-432-200-10
2
BEARING/TAPERROLLER
3
NUT (30)
4
SEAL,OIL/TC25407
5
COLLAR 55X60X16
6
COLLAR/57X62X4
7
1656-432-001-50
8
STUD/M8X20/7T
9
COLLAR,THRUST
10
O-RING/1A,P40
11
X-RING
12
RING,SNAP/R62
13
METAL/DIFF
14
SHIM (A)
15
SHIM (B)
16
V201-460-802-00
17
NUT/M8/7T
18
WASHER,SP/M8
19
1656-432-007-10
20
PINION/DIFF/11
21
COLLAR,PINION THRUST
22
GEAR/BEVEL/20
23
1656-432-002-10
24
COLLAR/43X58X1
25
1488-411-006-20
26
1488-411-007-20
27
HOLDER/SHAFT/DIFF
28
PIN,ST,B/8X24
29
BOLT/STUD/M10X47
30
NUT/SM/M10X1.25
31
BEARING,RB/6011
32
1656-432-006-00
