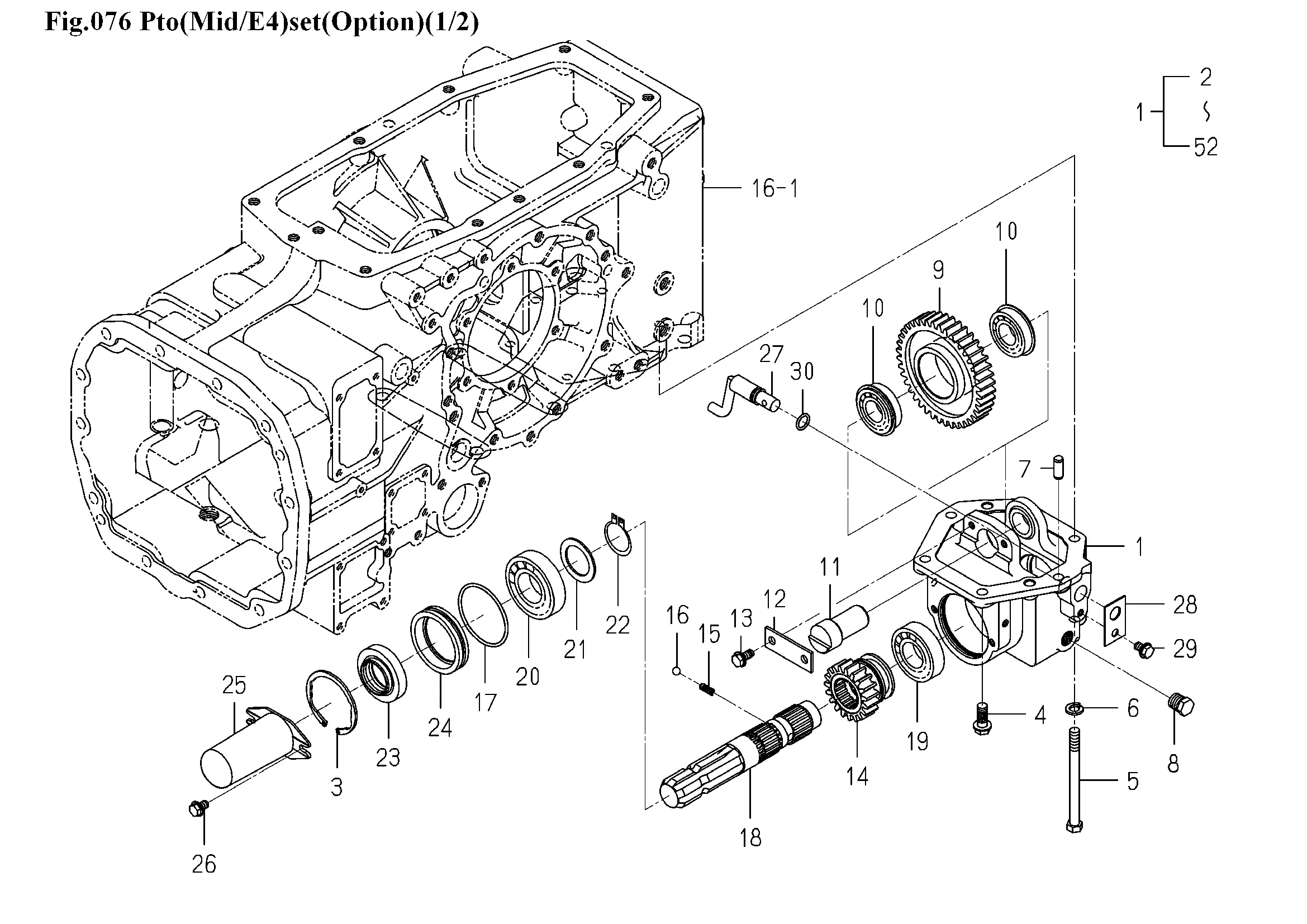

Zwischenachs PTO
Ersatzteile (51 Teile)
1
1837-229-600-10
2
CASE/PTO
3
RING,SNAP/R72
4
V231-361-002-50
5
V201-361-012-00
6
WASHER,SP/M10
7
PIN,ST,B/10X24
8
PLUG/SCREW/SEAL
9
GEAR/SPUR/40
10
BEARING,RB/6205NR
11
1742-229-004-00
12
PLATE
13
FLANGEBOLT/M8X16
14
GEAR/SPUR/19
15
SPRING,SHIFTER
16
BALL,STEEL
17
O-RING
18
SHAFT/PTO
19
BEARING,RB/6206
20
BEARING/BALL
21
COLLAR(35X50X2)
22
RING,SNAP/35 C
23
SEAL ASSY
24
METAL
25
1444-314-009-10
26
V231-360-801-20
27
ARM/SHIFT/MID COMP
28
PLATE/I/30X50
29
V231-360-801-20
30
O-RING/1A,P14
31
ARM/PLATE/MID COMP
32
PIN,SPRING/6X25 W
34
PLATE/MID
35
WASHER,PL/M8
36
PIN,SPLIT/2X20
37
1837-229-660-00
38
3640-111-001-10
39
1837-229-620-10
40
PIN,SPRING/8X28 W
41
1837-229-640-00
42
BOLT,SP/M8X25
43
INSULATOR/120
44
GRIP/PTO/E1
45
1837-229-650-00
46
BOLT,SP/M6X16
47
Bremslichtschalter
48
ARM
49
FLANGEBOLT/M6X16
50
BAND,WIRE/140
51
1837-229-062-00
52
1837-229-061-00
