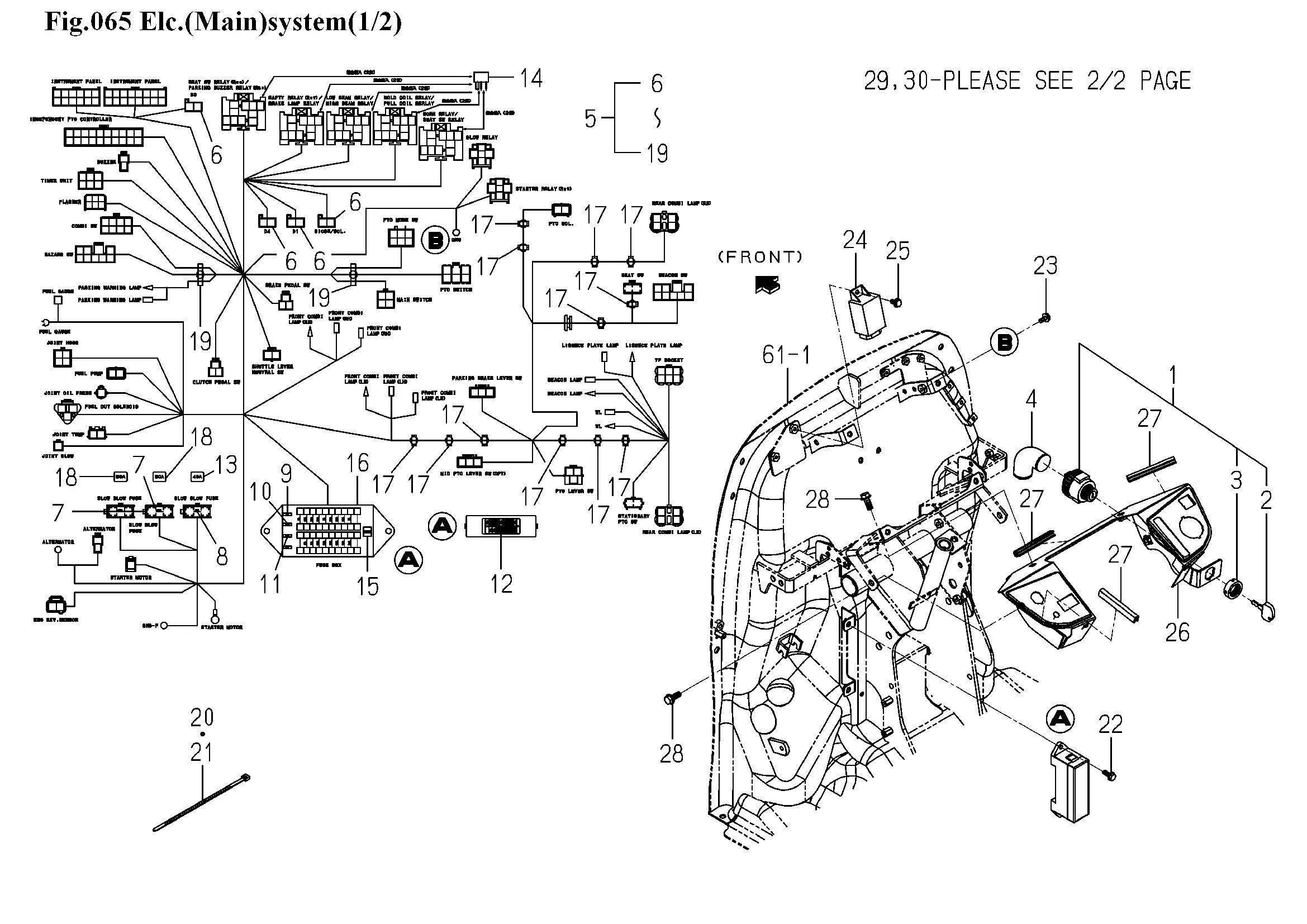

Kabelbäume, Relais
Ersatzteile (64 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
COVER/SWITCH
5
1833-652-600-10
6
DIODE
7
FUSE/SLOW BLOW/50A
8
FUSE/SLOW BLOW/40A
9
FUSE/BLADE/32V05A
10
FUSE/BLADE/32V10A
11
FUSE/BLADE/32V15A
12
1833-652-601-00
13
1834-652-502-00
14
RELAY/5P ASSY
15
TOOL/FUSE
16
COVER/FUSE
17
1805-652-207-00
18
1834-652-503-00
19
1725-690-071-00
20
1342-402-006-00
21
BAND,WIRE/140
22
FLANGEBOLT/M6X16
23
FLANGEBOLT/M6X12
24
1739-681-220-10
25
FLANGEBOLT/M6X12
26
1833-652-610-00
27
1757-730-004-00
28
V231-360-802-00
29
SWITCH/COMBINATION/E
30
Kombischalter, Blink,Licht,Hupe
31
1544-623-232-00
32
LEVER
33
KNOB
34
BOOT/HORN
35
1738-680-211-00
36
1738-680-212-00
37
SWITCH/HAZARD ASSY
38
BULB/LAMP/14V60MA
39
LAMP/LED ASSY
40
V120-365-001-60
41
RELAY ASSY
42
1674-654-200-10
43
1674-654-211-00
44
Glühlampe 12V _SW
45
1342-402-006-00
46
SWITCH/PTO ASSY
47
SWITCH/ALTERNAT ASSY
48
BULB/LAMP/12V1W
49
1837-652-640-10
50
STAY/CONTROLLER
51
FLANGEBOLT/M6X12
52
RELAY/CONTROL/ENGINE
53
FLANGEBOLT/M6X12
54
SWITCH ASSY
55
LEVER/SWITCH
56
SCREW/M03X20
57
PLATE,SWITCH
58
SWITCH ASSY
59
ACTUATOR ASSY
60
SCREW/M03X20
61
1729-652-006-00
62
V120-365-001-60
63
BUZZER ASSY
64
V120-365-001-60
