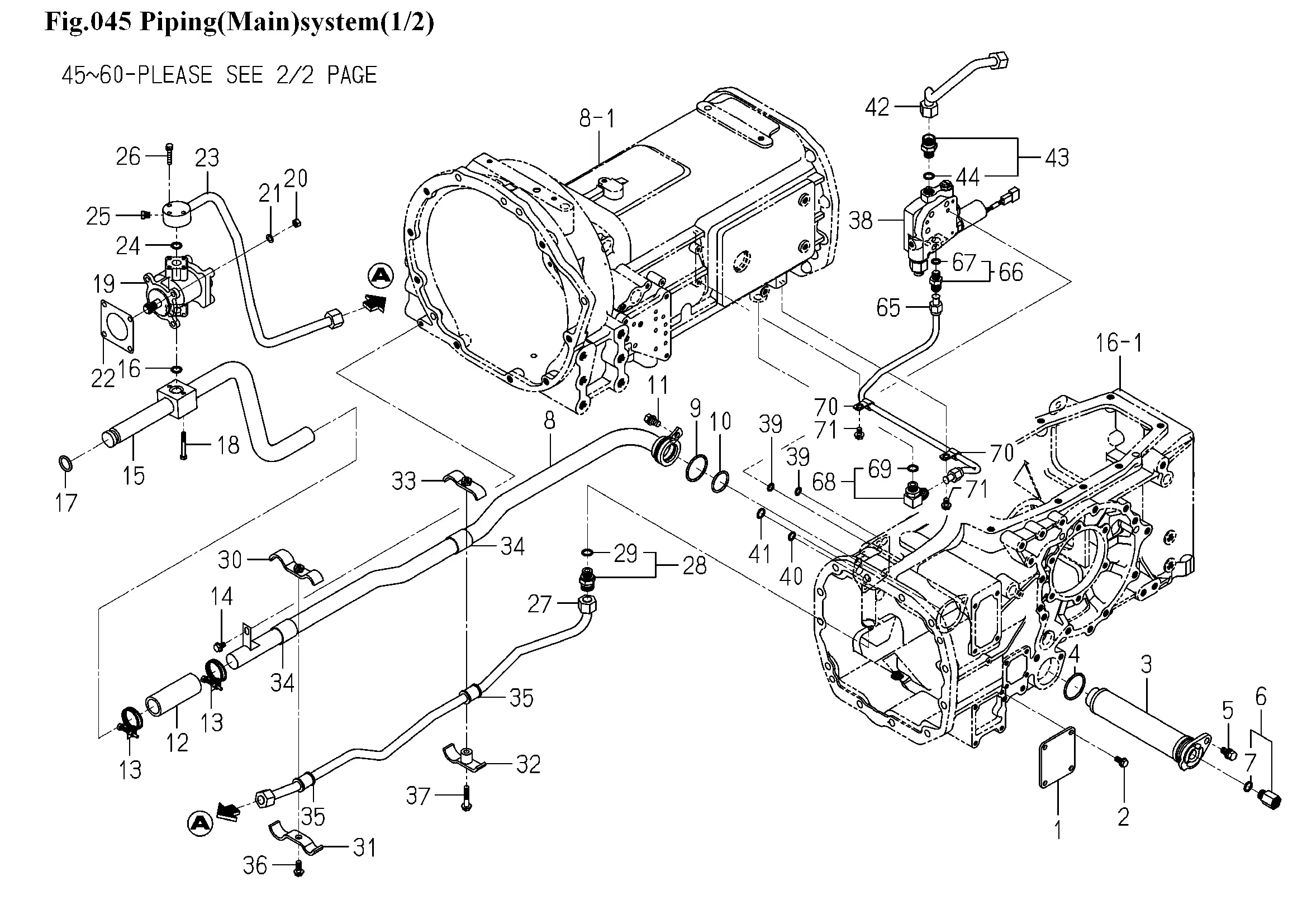

Hydraulikpumpe, Hydraulikleitung
Ersatzteile (71 Teile)
1
1785-508-006-00
2
FLANGEBOLT/M8X16
3
FILTER/SUCTION/400
4
O-RING/1A,G45
5
BOLT,SP/M10X25
6
ADAPTER/G3/8 ASSY
7
O-RING/1B,P14
8
1833-508-210-00
9
O-RING/1A,G45
10
O-RING/1A,G35
11
BOLT,S/M10X20
12
1833-508-061-00
13
J061-232-040-00
14
V231-360-801-20
15
1833-508-600-00
16
O-RING/1B,P20
17
RING/O
18
BOLT,S/M6X50/7T
19
PUMP/GEAR/13.2 ASSY
20
NUT/M8
21
WASHER,SP/M8
22
PACKING,OIL PUMP
23
1748-508-420-10
24
O-RING/1B,P20
25
PLUG/SCREW/SEAL
26
BOLT,S/M6X35/7T
27
1833-508-230-00
28
1729-508-290-20
29
O-RING/1B,P14
30
1824-508-280-00
31
1824-508-001-00
32
1837-508-200-00
33
1837-508-240-00
34
1824-508-004-00
35
1824-508-005-00
36
V231-360-802-00
37
FLANGEBOLT/M8X40
38
K200-288-000-00
39
O-RING/1B,P10A
40
O-RING/1B,P12
41
O-RING/1B,P14
42
1742-508-270-20
43
1729-508-290-20
44
O-RING/1B,P14
45
VALVE/CONTROL/107
46
1742-508-009-10
47
V211-260-806-50
48
V211-260-805-00
49
VALVE,RELIEF ASSY
50
O-RING/1B,P12
51
O-RING/1B,P18
52
K231-008-000-20
53
O-RING/1B,P10A
54
RING/BACK UP
55
COLLAR/11X21X03
56
RING/SNAP
57
SEAL,DUST
58
O-RING/1B,P22
59
O-RING/1B,P16
60
NUT/M10
61
1568-507-001-10
62
KNOB
63
SCREW/M6X40
64
V401-160-006-00
65
1742-508-280-00
66
ADAPTOR/PF1/4 ASSY
67
O-RING/1B,P11
68
ADAPTER/L/PF1/4 ASSY
69
O-RING/1B,P11
70
HOLDER/10
71
V231-360-801-20
