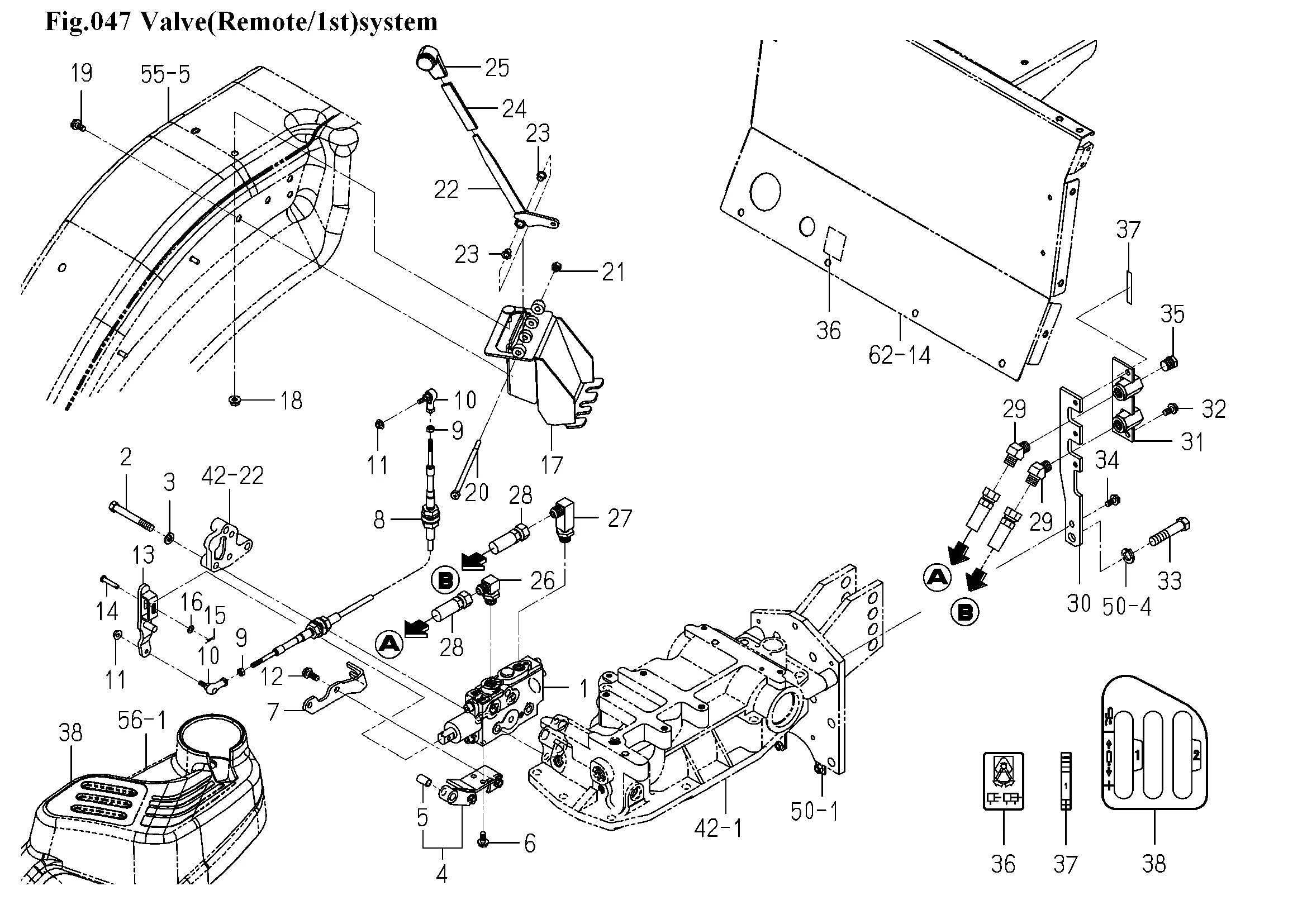

Steuergerät
Ersatzteile (38 Teile)
1
VALVE/CONTROL ASSY
2
V201-261-008-00
3
WASHER,SP/M10
4
HOLDER ASSY
5
BUSH/10X12X20
6
FLANGEBOLT/M8X16
7
STAY/CABLE
8
CABLE ASSY
9
V301-260-006-00
10
JOINT/BALL/M06
11
NUT/FLANGE/M06
12
V231-360-802-00
13
ARM COMP
14
PIN/06X31
15
PIN,SNAP/6
16
V411-260-006-00
17
BRACKET/LEVER COMP
18
Kombimutter-M8
19
FLANGEBOLT/M8X16
20
BOLT/SM/M8X140
21
NUT/M8
22
LEVER/SUBCOM/1 COMP
23
BUSH/08X10X10
24
TUBE/090
25
GRIP
26
CONNECTOR
27
CONNECTOR/L
28
1837-512-600-10
29
ADAPTER/45/R3/8XG3/
30
1742-512-001-20
31
1815-512-310-00
32
FLANGEBOLT/M8X16
33
V201-361-406-50
34
FLANGEBOLT/M8X16
35
PLUG/SCREW/SEAL
36
1831-512-003-00
37
1833-512-062-00
38
1833-512-061-00
