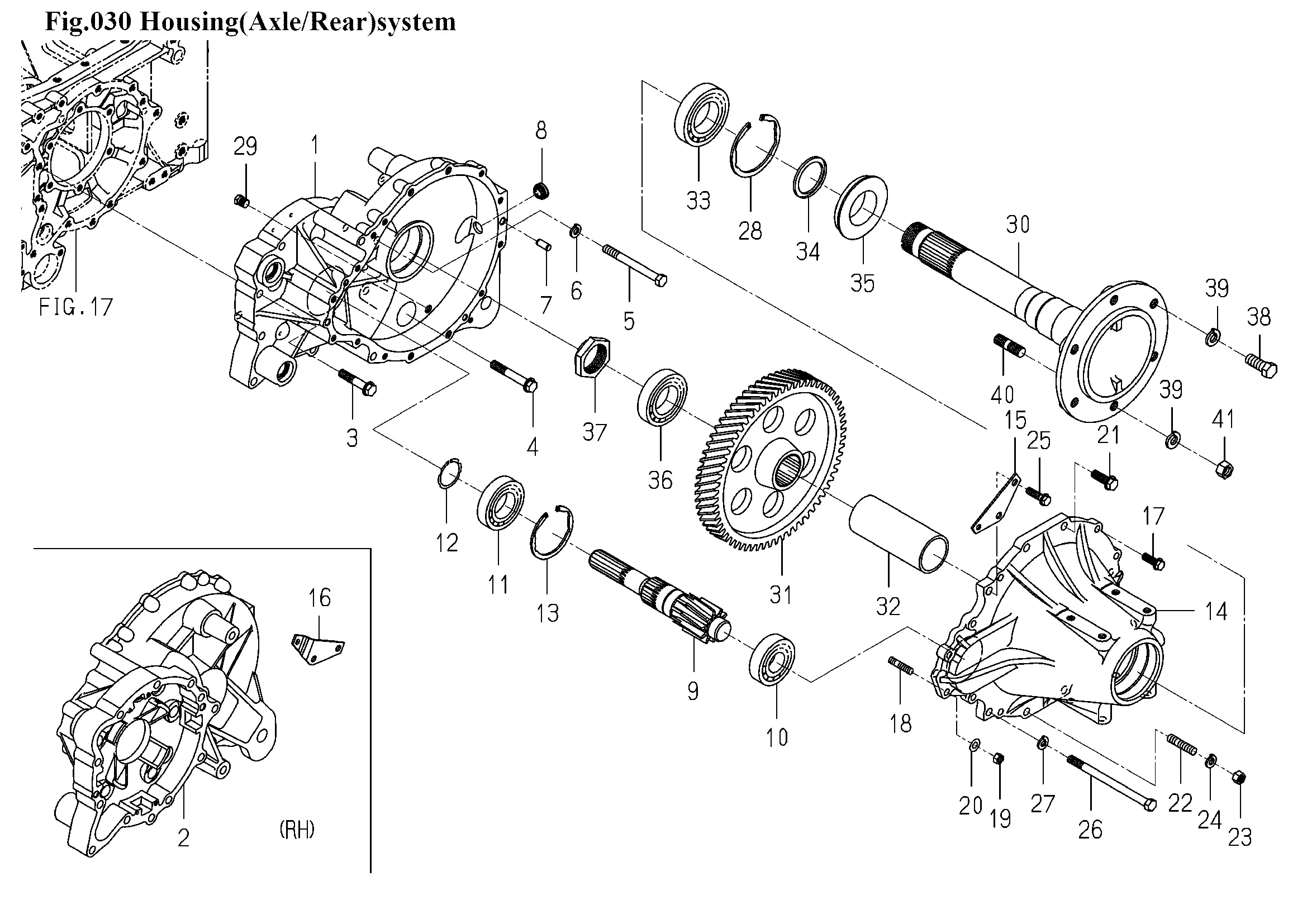

Achstrichter, hinten
Ersatzteile (41 Teile)
1
1831-306-001-00
2
1831-306-002-00
3
FLANGEBOLT/M12X60
4
V231-361-208-00
5
BOLT/M12X160/7T
6
V402-160-012-00
7
PIN,ST,B/10X24
8
GAUGE/LEBEL
9
1999-306-012-00
10
BEARING,RB/6307
11
BEARING/BALL/6209C
12
V706-140-045-00
13
RING,SNAP/R85
14
1831-306-006-00
15
1734-306-010-00
16
1837-306-001-00
17
FLANGEBOLT/M10X30
18
V251-441-003-00
19
V304-460-010-00
20
WASHER,SP/M10
21
FLANGEBOLT/M12X35
22
V251-441-203-50
23
V304-460-012-00
24
V402-160-012-00
25
V231-361-003-50
26
1734-306-008-00
27
V402-160-012-00
28
V707-140-100-00
29
PLUG/SCREW/SEAL
30
SHAFT/WHEEL
31
1796-306-002-10
32
COLLAR/56X65X156
33
BEARING,RB/6211
34
COLLAR/55X70X4
35
SEAL/OIL/UNITIGHTS
36
BEARING,RB/6201R
37
NUT/M50X1.5
38
1833-306-061-00
39
1746-306-003-00
40
BOLT,STUD/M16X30
41
1833-306-062-20
