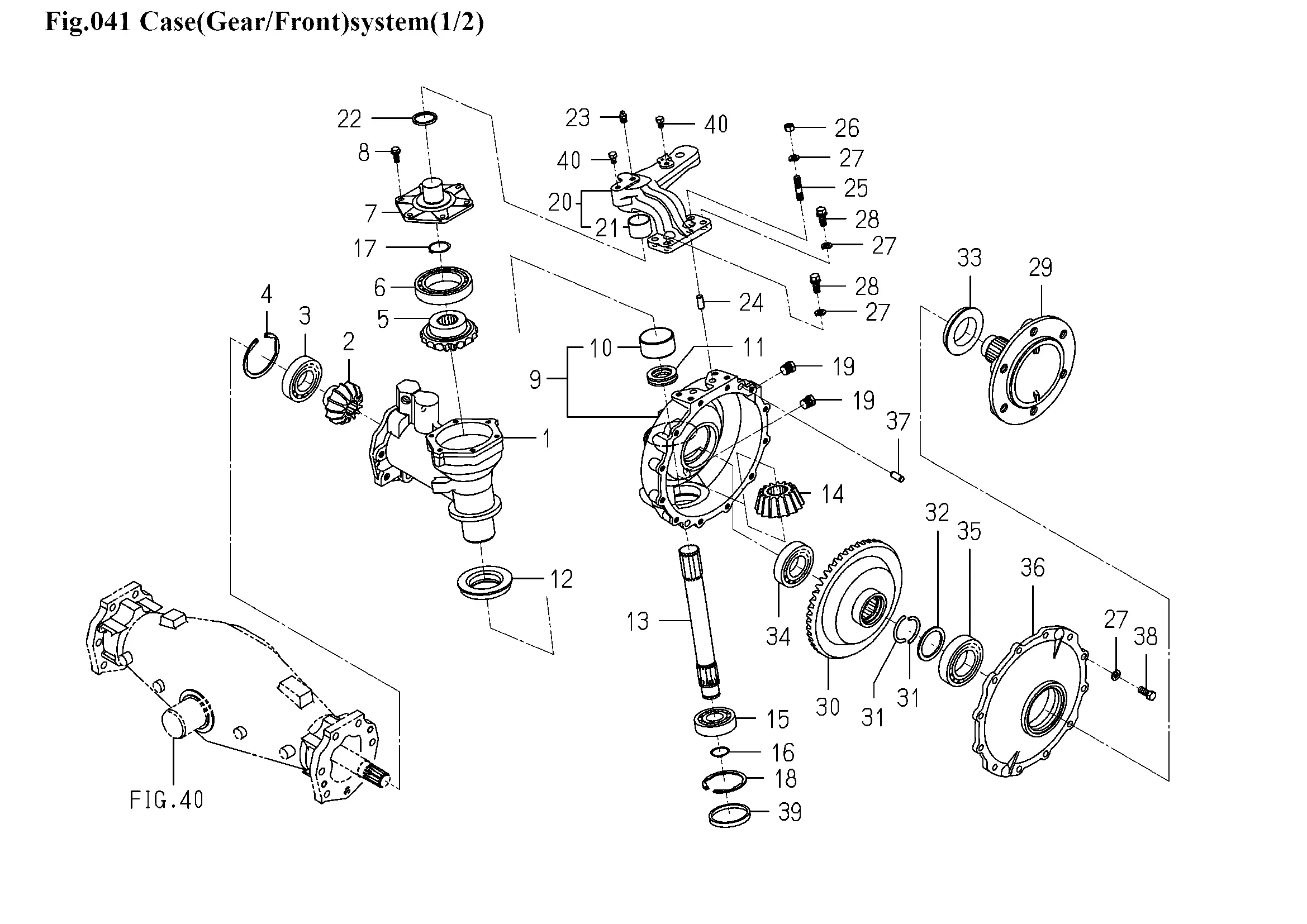

Achsgehäuse, vorne
Ersatzteile (85 Teile)
1
CASE/FINAL/LH/E
2
GEAR/BEVEL/13
3
1796-434-104-00
4
1796-434-105-00
5
GEAR/BEVEL/17
6
1796-434-111-00
7
COVER/BEARING
8
1796-434-113-00
9
CASE/FINAL/LH ASSY
10
BUSH/55X60X30
11
BEARING/BALL/THRUST
12
SEAL OIL
13
1796-434-114-00
14
GEAR/BEVEL/16
15
BEARING/BALL
16
1725-219-125-00
17
1725-308-102-00
18
1796-434-117-00
19
1796-434-119-00
20
1816-434-800-10
21
BUSH/35X39X26
22
SEAL/OIL
23
1796-434-130-00
24
PIN/B
25
1796-434-120-00
26
1796-434-121-00
27
1796-434-134-00
28
1796-434-123-00
29
SHAFT/WHEEL
30
GEAR/BEVEL/49
31
RING
32
WASHER/50X64X03
33
1564-434-013-20
34
BEARING,BALL 6208SH2
35
BEARING/BALL
36
COVER
37
PIN/B
38
1796-434-123-00
39
PLUG/SEAL/72X08
40
1796-434-135-00
41
CASE/FINAL/RH/E
42
GEAR/BEVEL/13
43
1796-434-104-00
44
1796-434-105-00
45
GEAR/BEVEL/17
46
1796-434-111-00
47
COVER/BEARING
48
1796-434-113-00
49
CASE/FINAL/RH ASSY
50
BUSH/55X60X30
51
BEARING/BALL/THRUST
52
SEAL OIL
53
1796-434-114-00
54
GEAR/BEVEL/16
55
BEARING/BALL
56
1725-219-125-00
57
1725-308-102-00
58
1796-434-117-00
59
1796-434-119-00
60
1816-434-810-10
61
BUSH/35X39X26
62
SEAL/OIL
63
1796-434-130-00
64
PIN/B
65
1796-434-120-00
66
1796-434-121-00
67
1796-434-134-00
68
1796-434-123-00
69
SHAFT/WHEEL
70
GEAR/BEVEL/49
71
RING
72
WASHER/50X64X03
73
1564-434-013-20
74
BEARING,BALL 6208SH2
75
BEARING/BALL
76
COVER
77
PIN/B
78
1796-434-123-00
79
PLUG/SEAL/72X08
80
1796-434-135-00
81
RING/HUB/170
82
1833-306-061-00
83
1746-306-003-00
84
1817-306-002-00
85
1833-306-062-20
