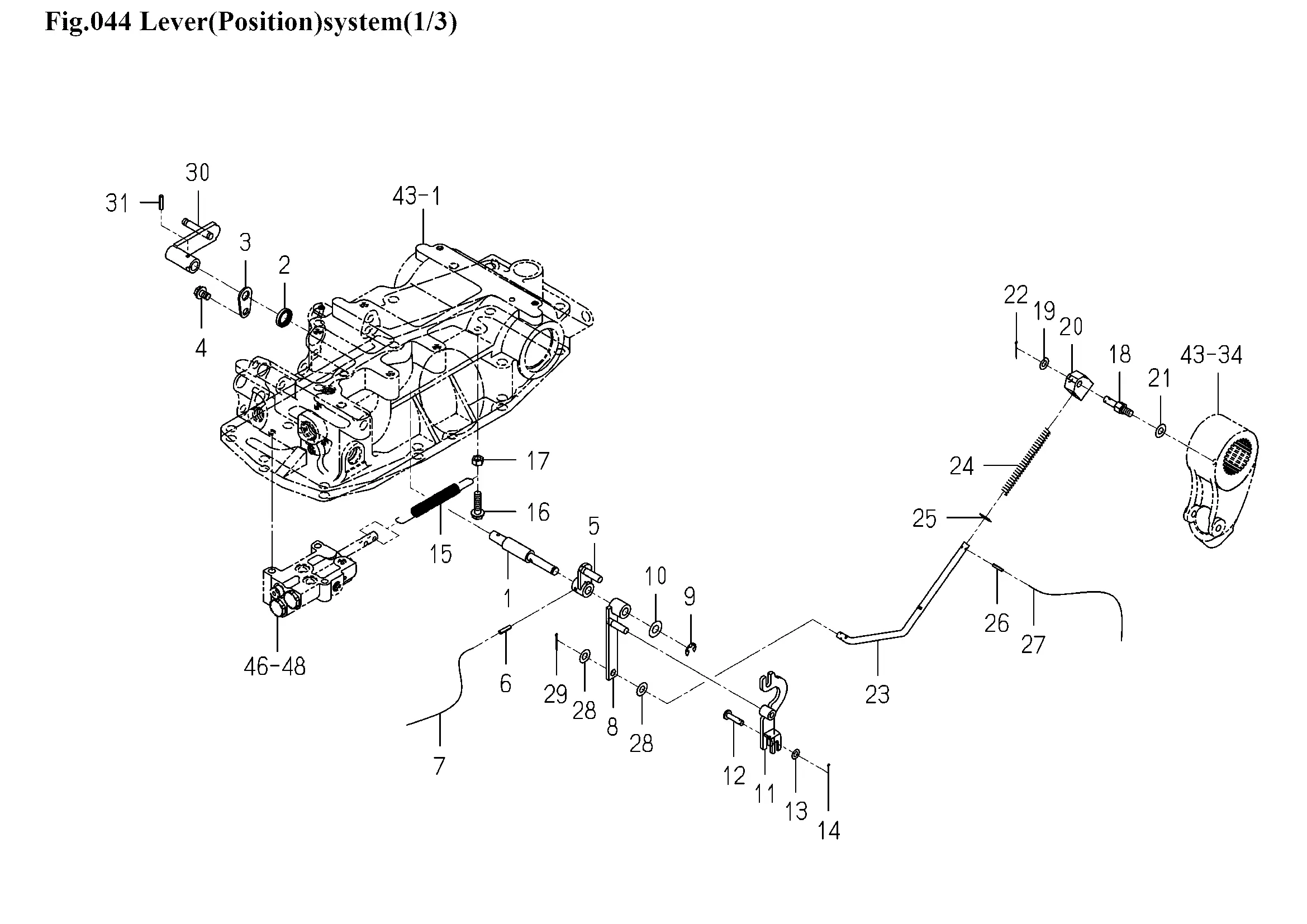

Schaltgestänge, Heckhydraulik
Ersatzteile (73 Teile)
1
PIN/10X113
2
SEAL,OIL/VC162404
3
STOPPER
4
V231-360-801-20
5
ARM COMP
6
PIN,SPRING/4X18 W
8
1831-504-250-00
9
RING,SNAP/8 E
10
V411-260-010-00
11
ARM
12
PIN/06X25
13
V411-260-006-00
14
PIN,SPLIT/2X20
15
SPRING
16
V231-360-803-00
17
NUT/M8
18
PIN/12X45
19
WASHER,SP/M8
20
LINK
21
WASHER,PL/M8
22
PIN,SPLIT/2X20
23
ROD
24
SPRING
25
WASHER,PL/M8
26
PIN,SPRING/3X16 W
28
WASHER,PL/M8
29
PIN,SPLIT/2X20
30
ARM COMP
31
PIN,SPRING/4X20 W
32
1833-504-610-00
33
1560-511-015-10
34
V201-361-012-00
35
BOLT,SP/M10X25/7T
36
WASHER,SP/M10
37
1833-504-062-00
38
BOLT/SM/M08X20
39
V305-260-012-00
40
V411-260-012-00
41
1833-504-620-00
42
ARM COMP
43
PIN,SPRING/4X20 W
44
SPRING
45
ROD/M08X130
46
PIN
47
NUT/M8
48
WASHER,PL/M8
49
V500-163-002-00
50
1837-504-630-00
51
1600-505-007-10
52
PLATE
53
SPRING/WASHER
54
V411-260-010-00
55
V335-260-010-00
56
1837-504-200-10
57
BUSH/25X28X10
58
Kombimutter-M8
59
1837-504-001-20
60
INSULATOR/LEVER/SUB
61
1824-504-007-00
62
1833-504-220-00
63
1999-504-230-00
64
FLANGEBOLT/M8X16
65
V201-260-809-50
66
WASHER,PL/M8
67
WASHER,SP/M8
68
1837-504-230-00
69
1560-695-021-00
70
1560-695-022-00
71
NUT/M8
72
NUT/LH/M08
73
WASHER,PL/M8
74
WASHER,SP/M8
75
NUT/M8
