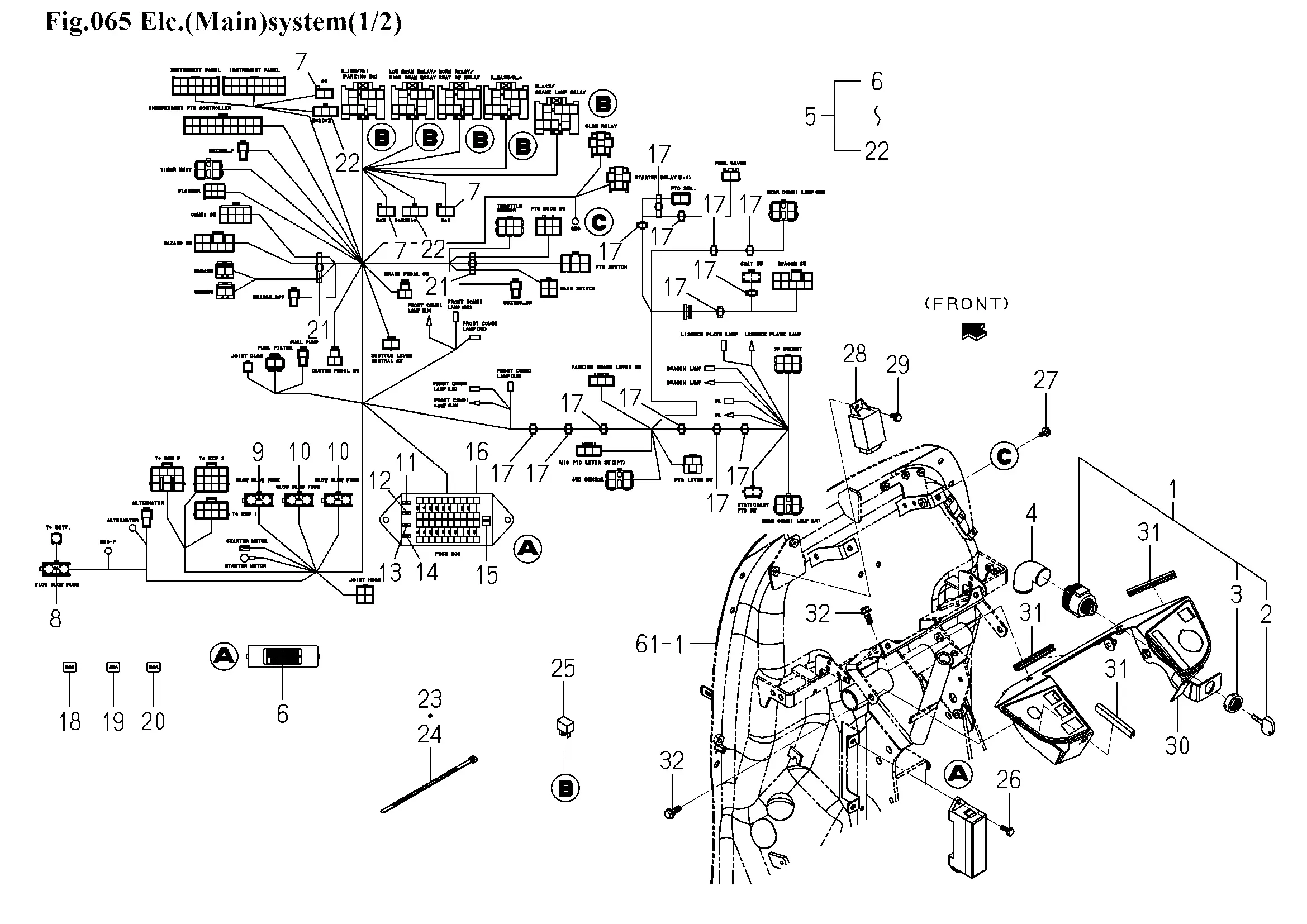

Schalter, Relais, Zündschloss
Ersatzteile (70 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
COVER/SWITCH
5
1833-652-650-20
6
1833-652-651-00
7
DIODE
8
FUSE/SLOWBLOW/30A
9
FUSE/SLOW BLOW/40A
10
FUSE/SLOW BLOW/50A
11
FUSE/BLADE/32V05A
12
FUSE/BLADE/32V10A
13
FUSE/BLADE/32V15A
14
FUSE/BLADE/32V20A
15
TOOL/FUSE
16
COVER/FUSE
17
1805-652-207-00
18
1834-652-232-00
19
1834-652-502-00
20
1834-652-503-00
21
1725-690-071-00
22
DIODE
23
1342-402-006-00
24
BAND,WIRE/140
25
RELAY/5P ASSY
26
FLANGEBOLT/M6X16
27
FLANGEBOLT/M6X12
28
1739-681-220-20
29
FLANGEBOLT/M6X12
30
1834-652-220-00
31
1821-630-003-00
32
V231-360-802-00
33
SWITCH/COMBINATION/E
34
Kombischalter, Blink,Licht,Hupe
35
1544-623-232-00
36
LEVER
37
KNOB
38
BOOT/HORN
39
1738-680-211-00
40
1738-680-212-00
41
SWITCH/HAZARD ASSY
42
BULB/LAMP/14V60MA
43
V120-365-001-60
44
RELAY ASSY
45
1674-654-200-10
46
1674-654-211-00
47
Glühlampe 12V _SW
48
1342-402-006-00
49
SWITCH/PTO ASSY
50
SWITCH/ALTERNAT ASSY
51
BULB/LAMP/12V1W
52
CONTROLLER/PTO/ST
53
STAY/CONTROLLER
54
FLANGEBOLT/M6X12
55
UNIT/TIMER ASSY
56
FLANGEBOLT/M6X12
57
SWITCH ASSY
58
LEVER/SWITCH
59
SCREW/M03X20
60
PLATE,SWITCH
61
SWITCH ASSY
62
ACTUATOR ASSY
63
SCREW/M03X20
64
1729-652-006-00
65
V120-365-001-60
66
BUZZER ASSY
67
V120-365-001-60
68
BUZZER
69
SWITCH ASSY
70
1560-666-004-00
