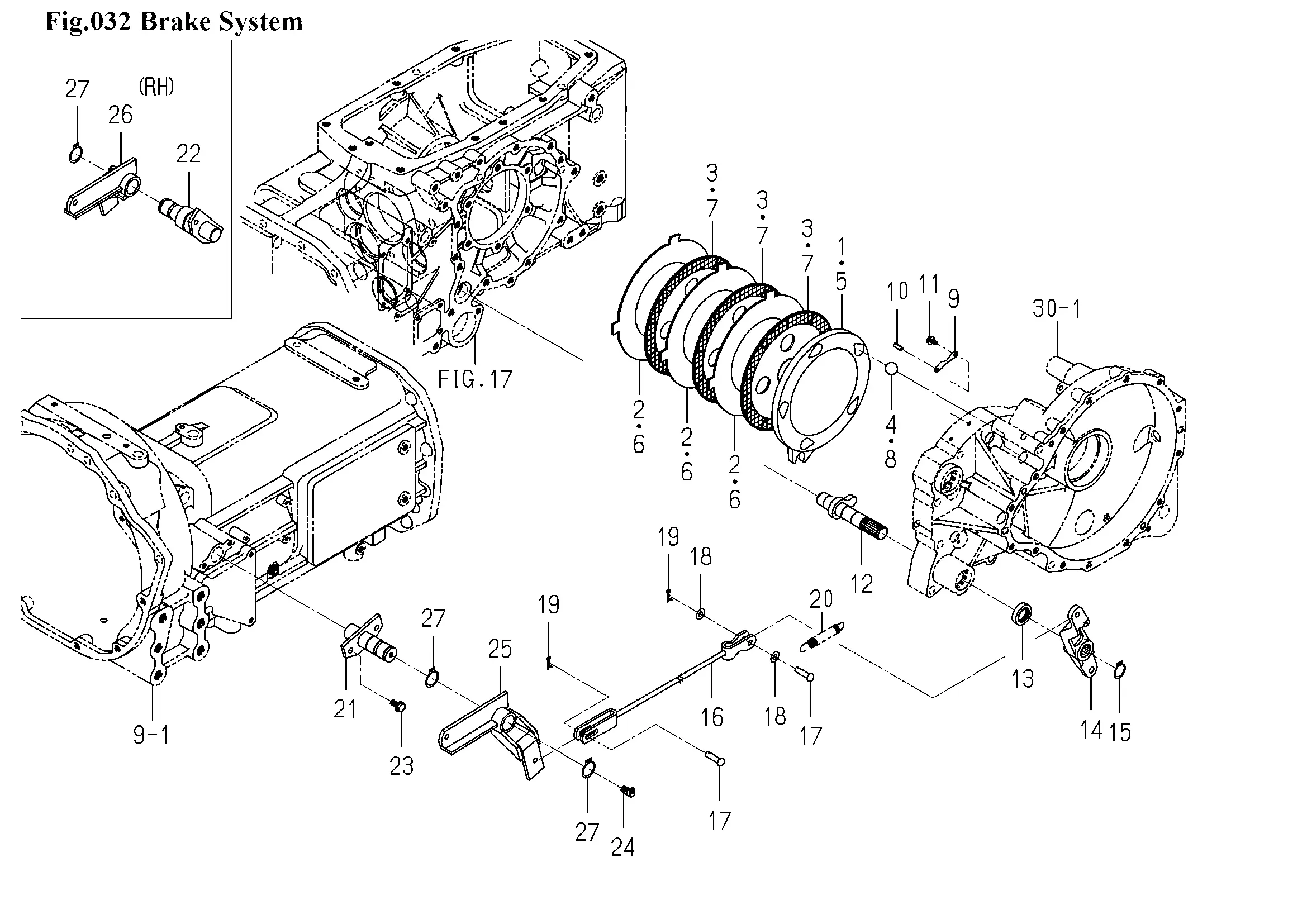

Bremse
Ersatzteile (27 Teile)
1
1831-310-001-00
2
1831-310-002-00
3
1831-310-003-00
4
STEELBALL
5
1831-310-004-00
6
1831-310-002-00
7
1831-310-003-00
8
STEELBALL
9
PLATE
10
PIN,SPRING/5X16 W
11
FLANGEBOLT/M6X10
12
CAM/BRAKE COMP
13
SEAL,OIL/TC22358
14
ARM/BRAKE
15
RING,SNAP/22 C
16
1815-310-200-00
17
PIN,YOKE A
18
WASHER,PL/M8
19
1836-271-001-00
20
SPRING/HE095
21
PIN COMP
22
1831-310-230-10
23
FLANGEBOLT/M8X16
24
NIPPLE,GREASE/PT1/8
25
1999-310-330-00
26
1999-310-340-00
27
RING,SNAP/25 C
