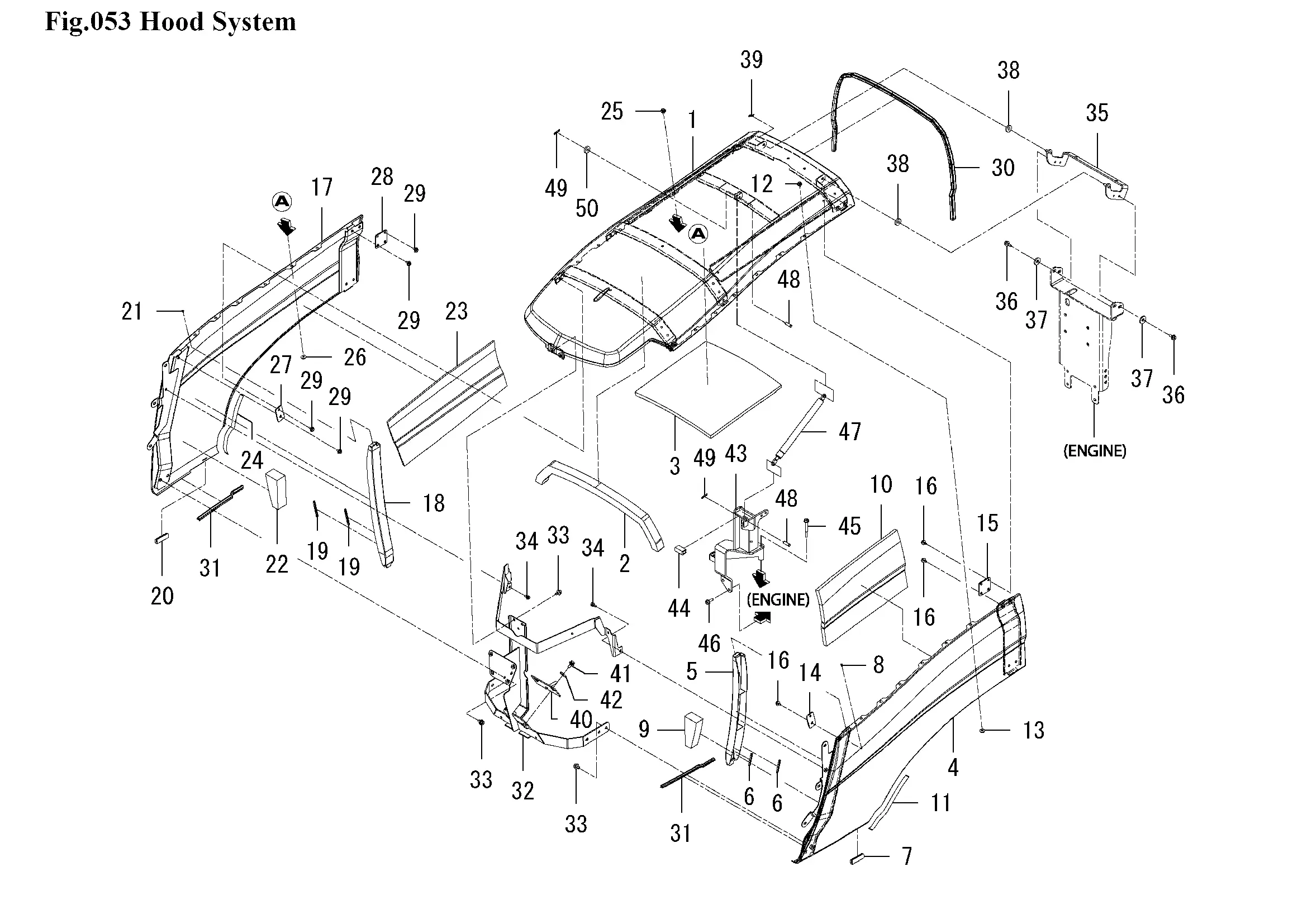

Motorhaube
Ersatzteile (51 Teile)
1
1837-601-610-00
2
1801-601-001-10
3
1833-601-067-00
4
1837-601-620-00
5
SHIELD/LH
6
1824-102-008-00
7
INSULATOR/025
8
SCREW,TAPPING
9
1837-601-062-10
10
1833-601-002-00
11
INSULATOR/220
12
1824-601-011-00
13
NUT,WASHER/M6
14
1824-601-002-20
15
1824-601-003-10
16
1824-601-011-00
17
1837-601-630-00
18
SHIELD/RH
19
1824-102-008-00
20
INSULATOR/025
21
SCREW,TAPPING
22
1837-601-063-10
23
1837-601-002-00
24
INSULATOR/220
25
1824-601-011-00
26
NUT,WASHER/M6
27
1824-601-002-20
28
1824-601-003-10
29
1824-601-011-00
30
INSULATOR/HOOD/1220
31
1833-601-004-00
32
1834-601-320-00
33
V211-660-801-60
34
V210-660-601-60
35
1833-601-660-00
36
V211-660-802-00
37
WASHER/24X9X3.2
38
CUSHION/RUBBER/10X25
39
PIN/SNAP
40
1833-601-620-10
41
V211-660-802-00
42
WASHER/24X9X3.2
43
1831-601-250-10
44
INSULATOR
45
V231-360-806-50
46
V231-360-802-00
47
1806-601-240-10
48
PIN/08X25
49
PIN/SNAP
50
CUSHION/RUBBER/10X25
ob
Stift, Öffner Motorhaube
