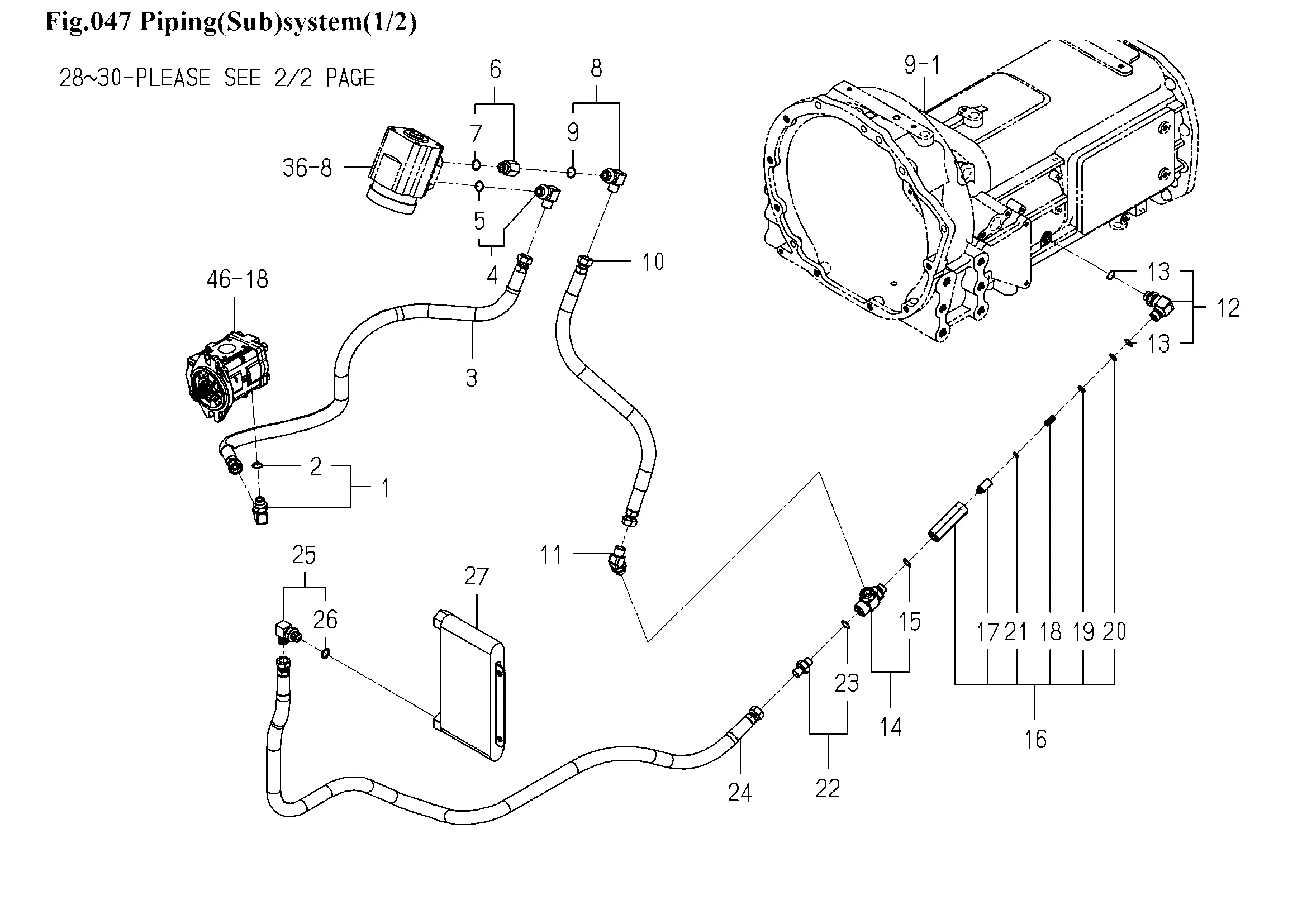

Hydraulikpumpe, Ölkühler
Ersatzteile (43 Teile)
1
ADAPTER/L/G3/8 ASSY
2
O-RING/1B,P14
3
1837-509-620-20
4
ADAPTER/L/G3/8 ASSY
5
O-RING/1B,P14
6
ADAPTER/G3/8 ASSY
7
O-RING/1B,P14
8
ADAPTER/L/G3/8 ASSY
9
O-RING/1B,P14
10
1837-509-660-00
11
ADAPTER (G3/8B-G3/8B
12
1806-509-290-00
13
O-RING/1B,P14
14
ADAPTER/G3/8ASSY
15
O-RING/1B,P14
16
1794-509-830-00
17
K220-002-002-00
18
SPRING/HC024
19
K220-002-004-00
20
RING,SNAP/15 C
21
COLLAR/06X10X02
22
1999-509-480-00
23
O-RING/1B,P14
24
1837-509-670-00
25
ADAPTER/L/G3/8 ASSY
26
O-RING/1B,P14
27
COOLER/OIL ASSY
28
1746-816-001-00
29
ADAPTER/L/G3/8 ASSY
30
O-RING/1B,P14
31
HOSE/1560 ASSY
32
1342-402-006-00
33
1999-509-480-00
34
O-RING/1B,P14
35
1815-509-011-00
36
1785-509-200-10
37
CARTRIDGE/20
38
FLANGEBOLT/M8X16
39
ADAPTER/L/G3/8 ASSY
40
O-RING/1B,P14
41
1837-509-620-20
42
ADAPTER/L/G3/8 ASSY
43
O-RING/1B,P14
