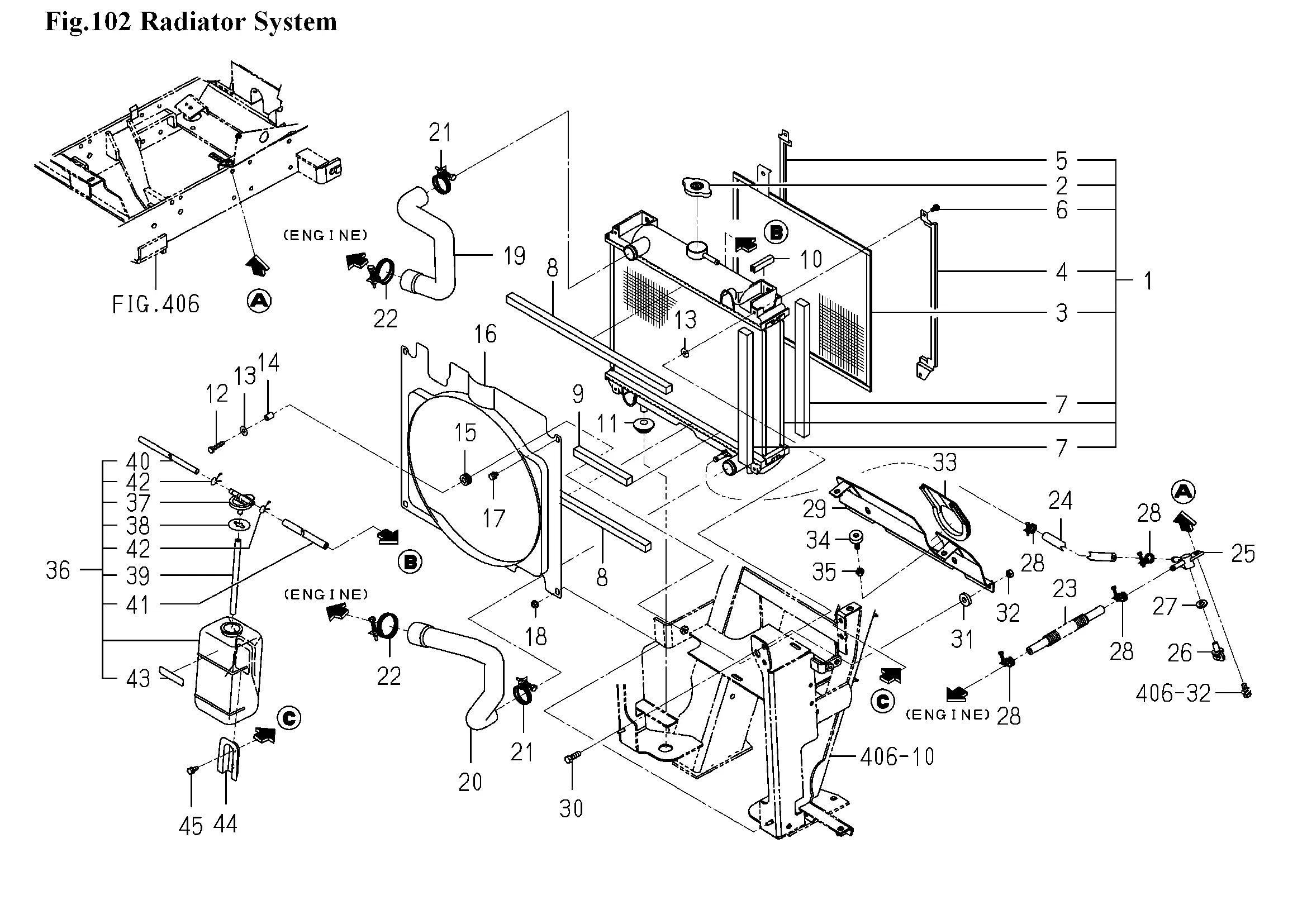

Kühler
Ersatzteile (46 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
INSULATOR
9
INSULATOR/15X15X140
10
PAD/50
11
BUSH,LEVER
11
Silentlager, 13x23x05
12
FLANGEBOLT/M6X30
13
WASHER
14
COLLAR
15
GROMMET
16
SHROUD
17
V210-360-601-20
18
NUT/WASHER/M6
19
HOSE/RADIATOR/UPPER
20
HOSE/RADIATOR/LOWER
21
J061-230-038-00
22
CLAMP/WIRE/36-44
23
Schlauch
24
HOSE/290
25
CONNECTOR
26
1424-101-203-00
27
PACKING
28
J061-210-015-00
29
1739-102-710-10
30
FLANGEBOLT/M8X25
31
CUSHION/RUBBER/10X25
32
NUT/M8
33
1725-102-071-00
34
INSULATOR
35
NUT/M8
36
RESERVETANK ASSY
37
CAP
38
PACKING
39
HOSE/RUBBER
40
PIPE
41
1705-102-252-20
42
CLAMP
43
6221-408-007-00
44
Halter
45
FLANGEBOLT/M6X12
