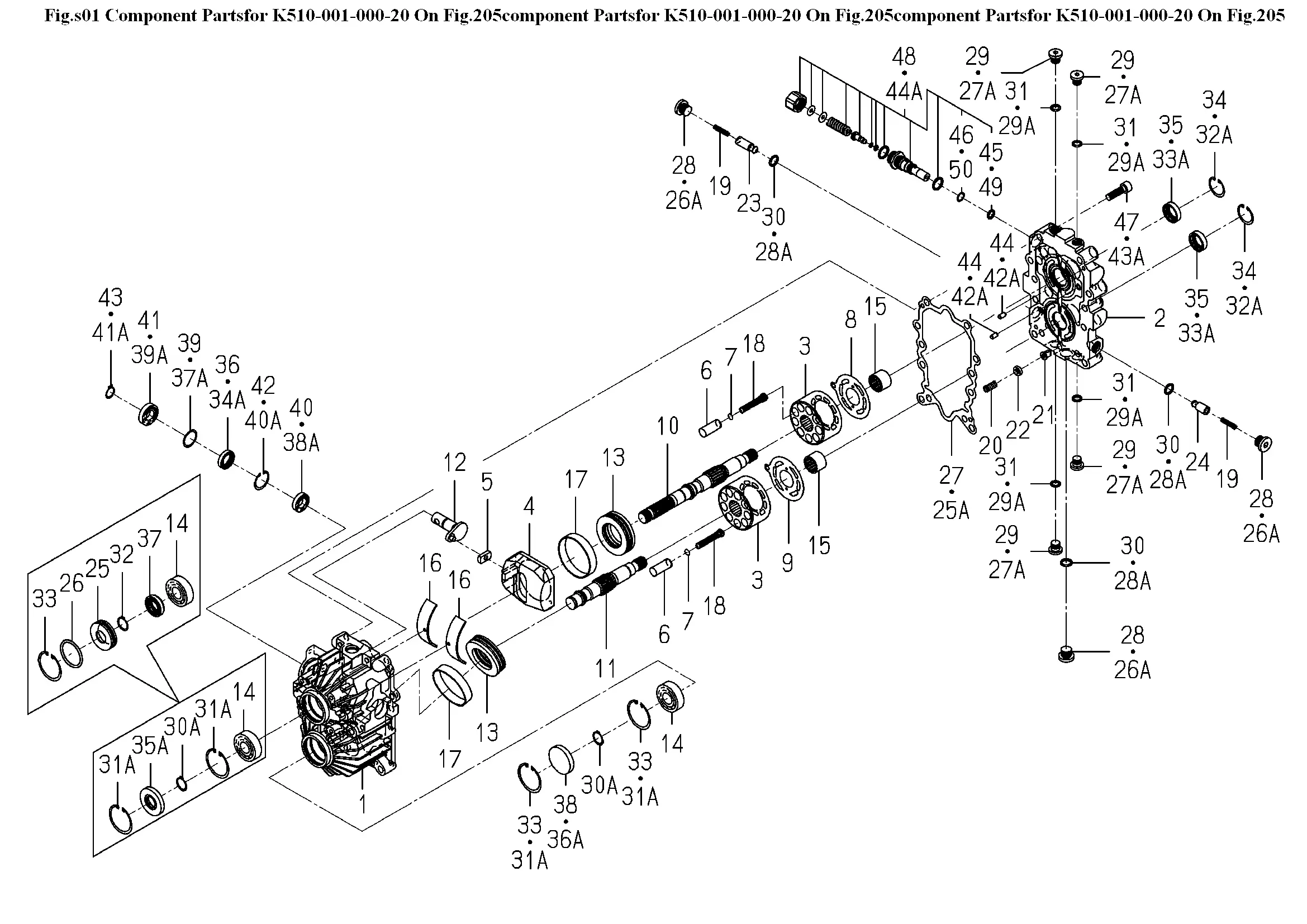

Einzelteile Hydrostat K510-001-000-20
Ersatzteile (50 Teile)
1
K510-008-001-00
1
K510-001-001-20
2
K510-001-004-00
3
K510-002-005-00
4
Verstellplatte
5
K510-001-007-00
6
K510-006-008-00
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
K510-001-012-10
11
K510-001-013-10
12
K510-001-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BUSH/68X71X14
18
SPRING/HC053
19
SPRING/HC030
20
SPRING/HC021
21
K510-003-022-00
22
K510-003-037-00
23
POPPET/CHECK/0.5
24
K510-001-024-00
25A
GASKET
26A
PLUG(G3/8)
27A
PLUG(PF1/4)
28A
O-RING/1B,P14
29A
O-RING/1B,P11
30A
RING,SNAP/20 C
31A
RING,SNAP/47 C
32A
RING,SNAP/32 C
33A
OIL SEAL
34A
SEAL/OIL
35A
SEAL,OIL/TC20477
36A
SEAL/47
37A
WASHER/25X30X1
38A
Lager
39A
Kugellager 6003 2 RS
40A
RING,SNAP/30 C
41A
RING,SNAP/17 C
42A
K510-001-036-00
43A
V220-541-003-50
44A
K510-001-100-00
45
O-RING/1B,P12
46
RING/BACK UP
48
K510-001-100-00
49
O-RING/1B,P12
50
RING/BACK UP
