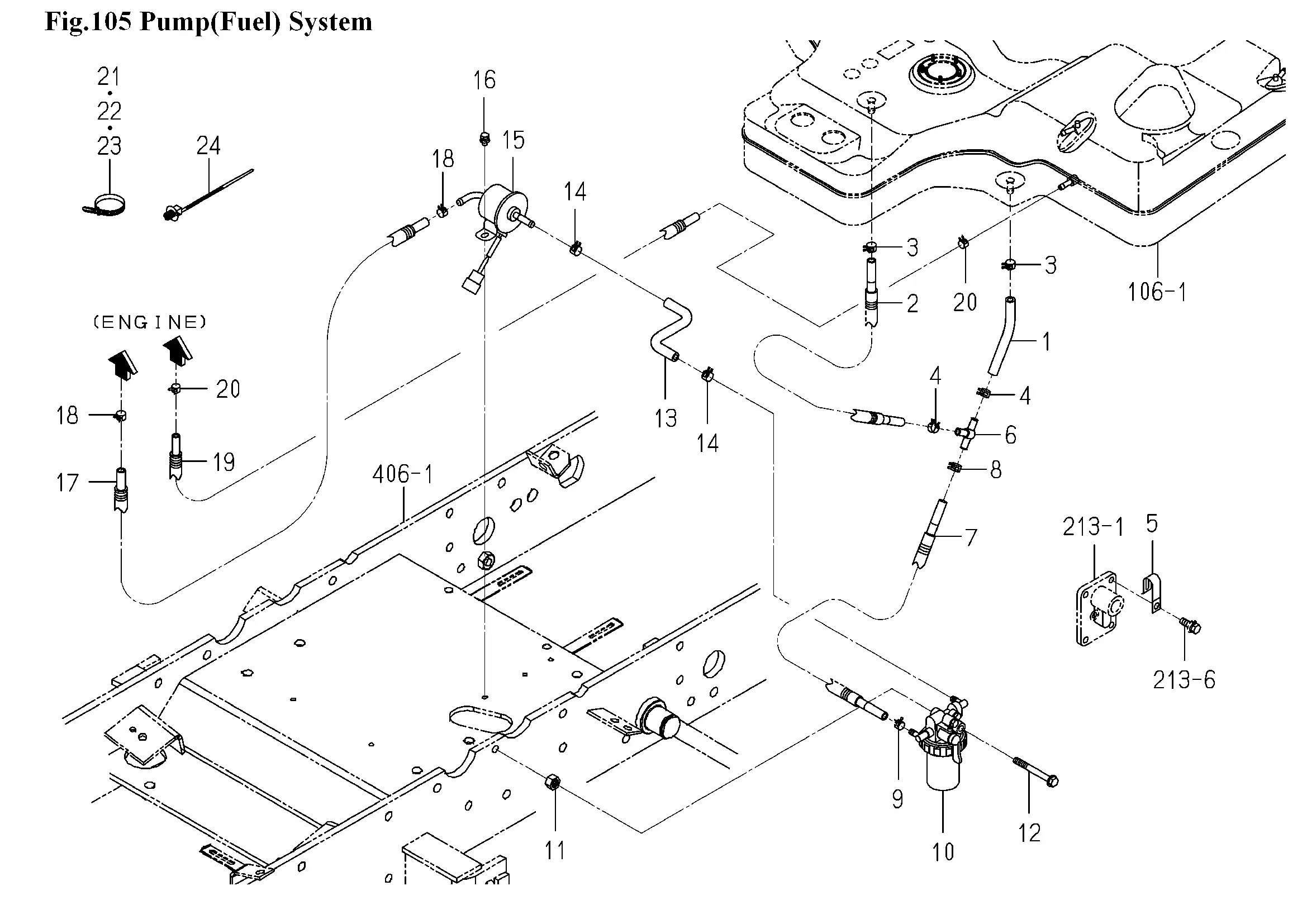

Kraftstofffilter, -Pumpe
Ersatzteile (24 Teile)
1
HOSE/08X13X70
2
HOSE/07X12X570 ASSY
3
CLIP/HOSE/11.9-12.6
4
CLIP/HOSE/11.9-12.6
5
HOLDER/JE/9-9
6
JOINT/T
7
HOSE/07X12X1250 ASSY
8
CLIP/HOSE/11.9-12.6
9
CLIP/HOSE/10.4-11.1
10
1725-105-220-10
11
NUT/M12
12
FLANGEBOLT/M8X70
13
HOSE/FUEL/84
14
CLIP/HOSE/12.6-13.4
15
Kraftstoffpumpe
16
FLANGEBOLT/M6X12
17
HOSE/07X12X800 ASSY
18
CLIP/HOSE/11.9-12.6
19
HOSE/06X10X1900 ASSY
20
CLIP/HOSE/10.4-11.1
21
1342-402-006-00
22
BAND,WIRE/140
23
BAND,WIRE/140
24
1725-690-071-00
