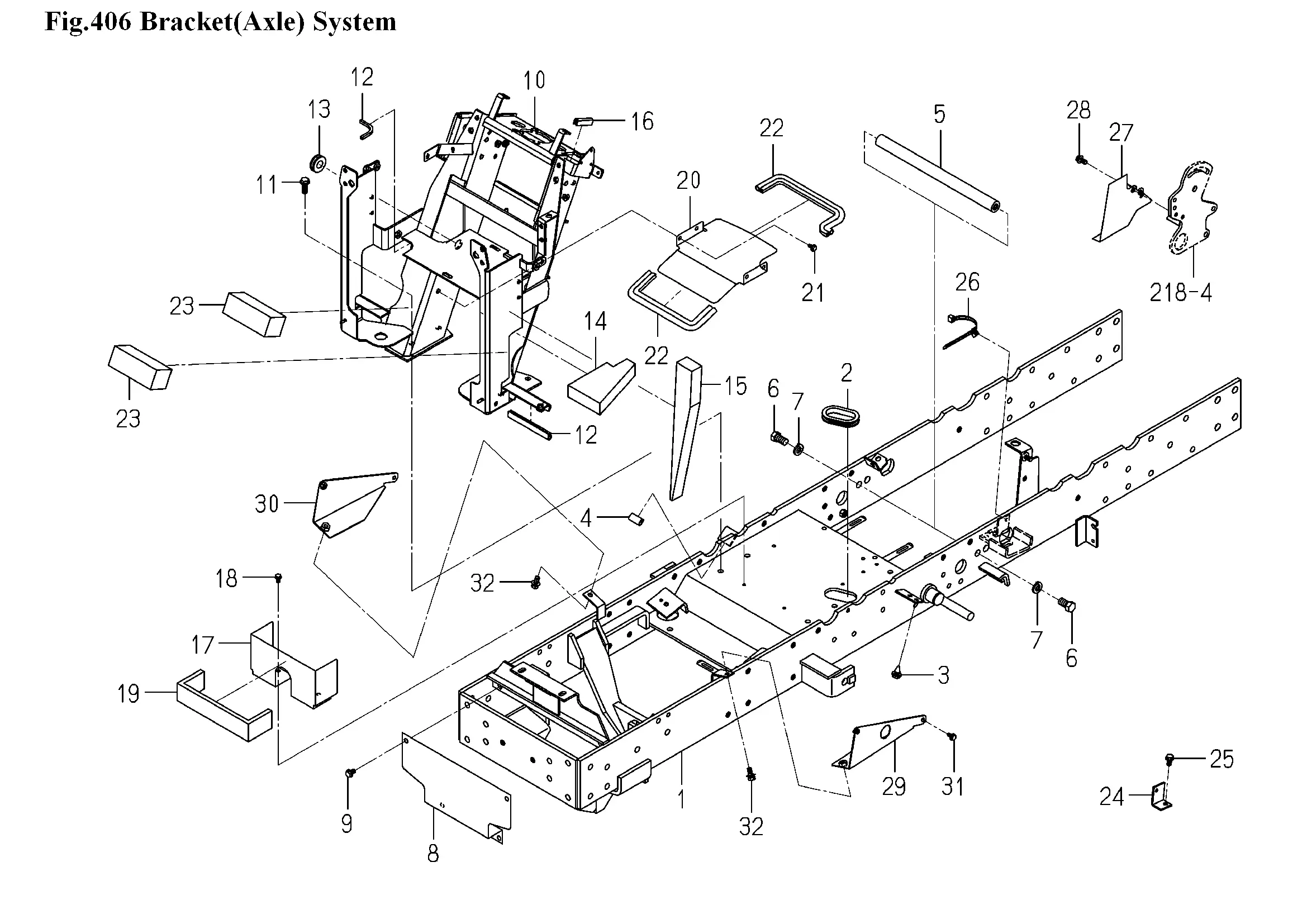

Rahmen
Ersatzteile (32 Teile)
1
1739-410-710-20
2
1725-410-078-00
3
RUBBER,CUSHION
4
TRIM/30
5
1725-410-001-00
6
BOLT/M14X25/7T
7
WASHER,SP/M14
8
1725-410-071-00
9
V231-360-801-20
10
1739-410-720-10
11
V231-361-002-00
12
TRIM/70
13
GROMMET/17X21X05
14
1725-410-073-00
15
1739-410-072-00
16
PAD/50
17
COVER/UNDER
18
FLANGEBOLT/M6X12
19
SEAL/45X10X315
20
NET
21
FLANGEBOLT/M6X12
22
INSULATOR/305
23
1725-410-005-00
24
1725-410-077-00
25
FLANGEBOLT/M8X16
26
1560-666-004-00
27
1739-410-730-00
28
FLANGEBOLT/M8X16
29
1739-410-740-10
30
PLATE/COVER/RH COMP
31
FLANGEBOLT/M6X12
32
BOLT,SP/M8X20
