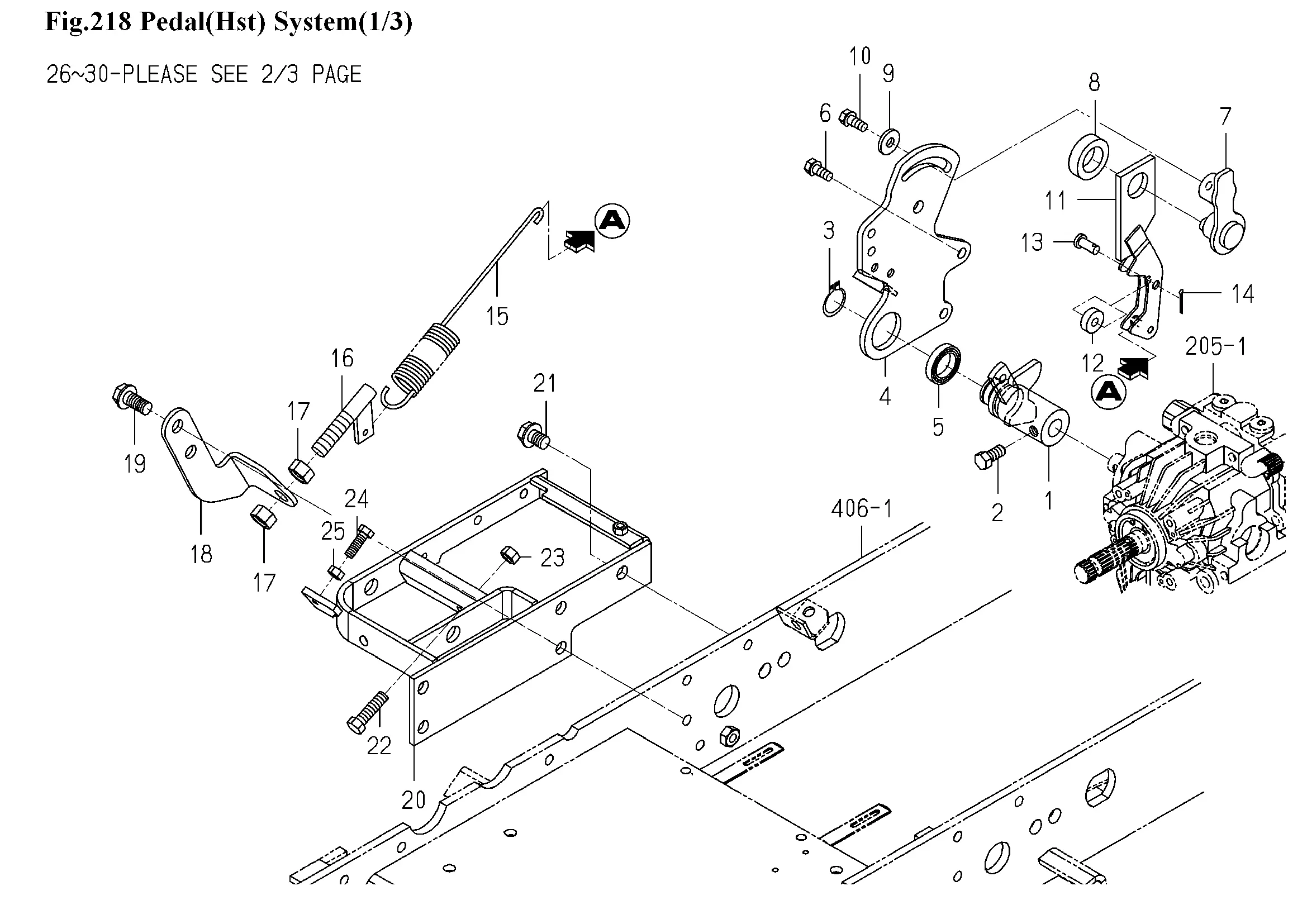

Pedal HST
Ersatzteile (67 Teile)
1
Schaltarm
2
BOLT/SM/M10X23
3
RING,SNAP/25 C
4
Platte
5
Kugellager
6
V211-560-802-00
7
LEVER/ADJUST COMP
8
COLLAR/25X40X11
9
WASHER/24X9X3.2
10
BOLT,S/M8X25/7T
11
ARM/NEUTRAL COMP
12
Lager
13
Bolzen 8x19
14
PIN,SPLIT/2.5X20
15
Feder
16
Gestänge
17
NUT/M14
18
Platte
19
FLANGEBOLT/M12X25
20
Grundplatte
21
FLANGEBOLT/M12X16
22
V201-261-003-50
23
NUT/M10
24
BOLT/TRIMED
25
NUT/M8
26
Pedal, HST
27
Buchse
28
NIPPLE,GREASE
29
V401-160-006-00
30
PEDAL/HST/F COMP
31
PAD/HST/R
32
V211-660-801-60
33
Pedal, HST
34
PEDAL/HST/R COMP
35
PAD/HST/R
36
V211-660-801-60
37
HUB/PEDAL/R COMP
38
PIN/GROOVE
39
Arm
40
Buchse
41
FLANGEBOLT/M12X16
42
Arm
43
Arm
44
PIN/GROOVE
45
Platte, 16x124
46
Platte, 16x062
47
WASHER,PL/M8
48
PIN,SPLIT/2.5X20
49
Platte
50
FLANGEBOLT/M8X16
51
ROD/HST/360
52
WASHER,PL/M8
53
PIN,SPLIT/2.5X20
54
1560-695-021-00
55
NUT/M8
56
WASHER,SP/M8
57
NUT/M8
58
DAMPER/OIL ASSY
59
Kombimutter-M8
60
PIN/08X46
61
NUT/WASHER/M10
62
WASHER,PL/M8
63
PIN,SPLIT/2.5X20
64
Platte
65
Feder
66
BOLT/M12X30/7T
67
WASHER,SP/M12
