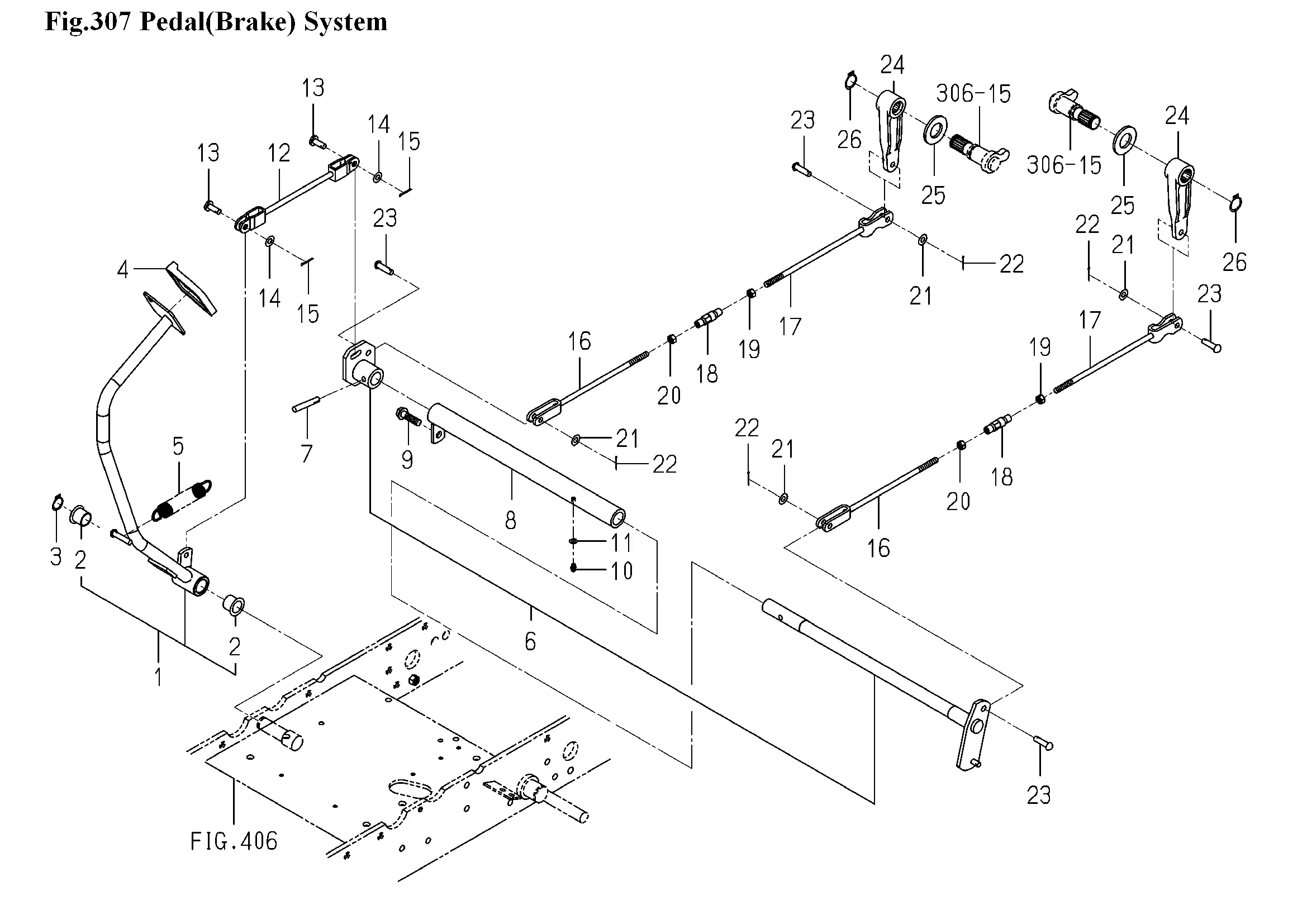

Pedal, Bremse
Ersatzteile (27 Teile)
1
PEDAL/BRAKE ASSY
1
Bremspedal TXG 237, geändert
2
BUSH/20X23X20
3
RING,SNAP/20 C
4
PAD
5
SPRING/HE126
6
1739-312-710-20
7
PIN,TAPER/8X50
8
1725-312-310-00
9
V231-361-003-50
10
NIPPLE,GREASE
11
V401-160-006-00
12
FORK COMP
13
PIN
14
WASHER,PL/M8
15
PIN,SPLIT/2.5X20
16
ROD
17
1704-310-210-10
18
TURNBUCKLE/M8
19
NUT/M8
20
NUT/LH/M08
21
WASHER,PL/M8
22
PIN,SPLIT/2X20
23
PIN,YOKE A
24
Arm
25
WASHER,PL/M24
26
RING,SNAP/22 C
