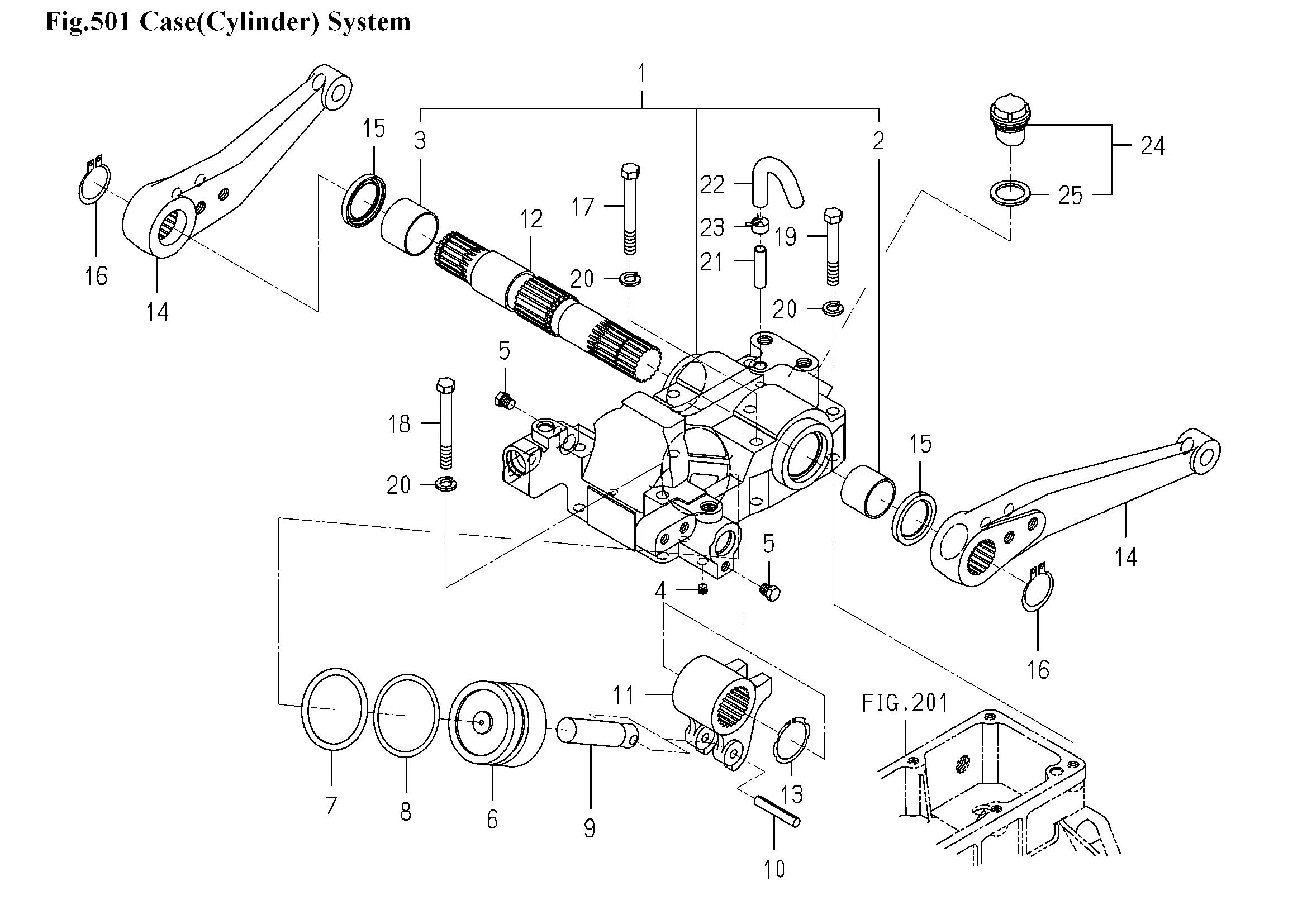

Zylinder, Hubarme Heckhydraulik
Ersatzteile (25 Teile)
1
1725-501-200-20
2
BUSH/35X39X30
3
BUSH/40X43X30
4
PLUG/SCREW
5
PLUG/SCREW/SEAL
6
PISTON
7
O-RING/1B,P65
8
RING,BACK UP
9
ROD
10
V580-140-805-00
11
CRANK/LIFT
12
1725-501-071-00
13
RING,SNAP/S40
14
ARM/LIFT/RH
15
SEAL,OIL/VC35506
16
RING,SNAP/35 C
17
V201-361-008-50
18
BOLT/M10X85/7T,SEAL
19
V201-361-007-00
20
WASHER,SP/M10
21
PIPE,BREATHER
22
Schlauch
23
J062-138-148-00
24
CAP,OIL
25
PACKING
