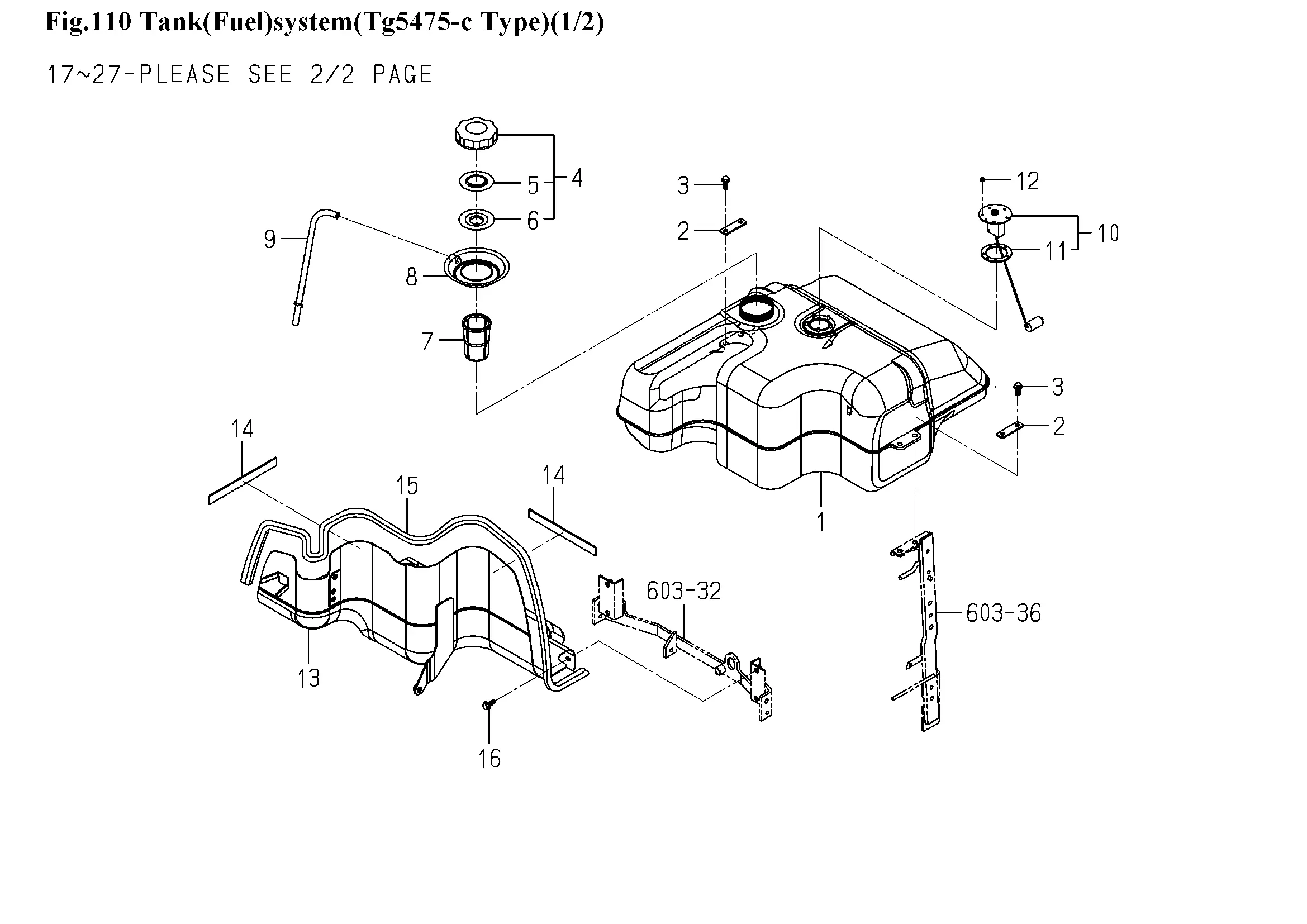

Tank
Ersatzteile (45 Teile)
1
Tank
2
1729-111-007-00
3
V231-360-802-00
4
1729-111-280-20
5
PLATE
6
PACKING
7
FILTER/FUEL
8
CUP/FUEL
9
HOSE/700
10
GAUGE/FUEL ASSY
11
PACKING/RUBBER
12
V360-260-004-00
13
1734-111-210-30
14
PLATE,RUBBER
15
1729-111-008-00
16
V231-360-802-00
17
Kraftstofffilter, kpl.
18
Hebel, Kraftstoffhahn
19
SEAL
20
1560-102-204-40
21
O-RING/1A,P21
22
1560-102-205-40
23
NUT,RING
24
O-RING/1A,G65
25
Kraftstofffilter
26
SPRING
27
O-RING/1A,P16
28
1513-102-332-00
29
BOLT/M8X80
30
WASHER,SP/M8
31
WASHER,PL/M8
32
PIPE
34
Schlauch 600
35
1650-111-034-00
36
CLIP/HOSE/14.7-15.9
37
HOSE/08X13X300
38
1650-111-034-00
39
Kraftstoffpumpe
40
FLANGEBOLT/M6X16
41
HOSE/06X10X365
42
1650-111-034-00
43
HOSE/FUEL/900 ASSY
44
J062-076-082-00
45A
1744-111-210-30
46
FLANGEBOLT/M6X16
