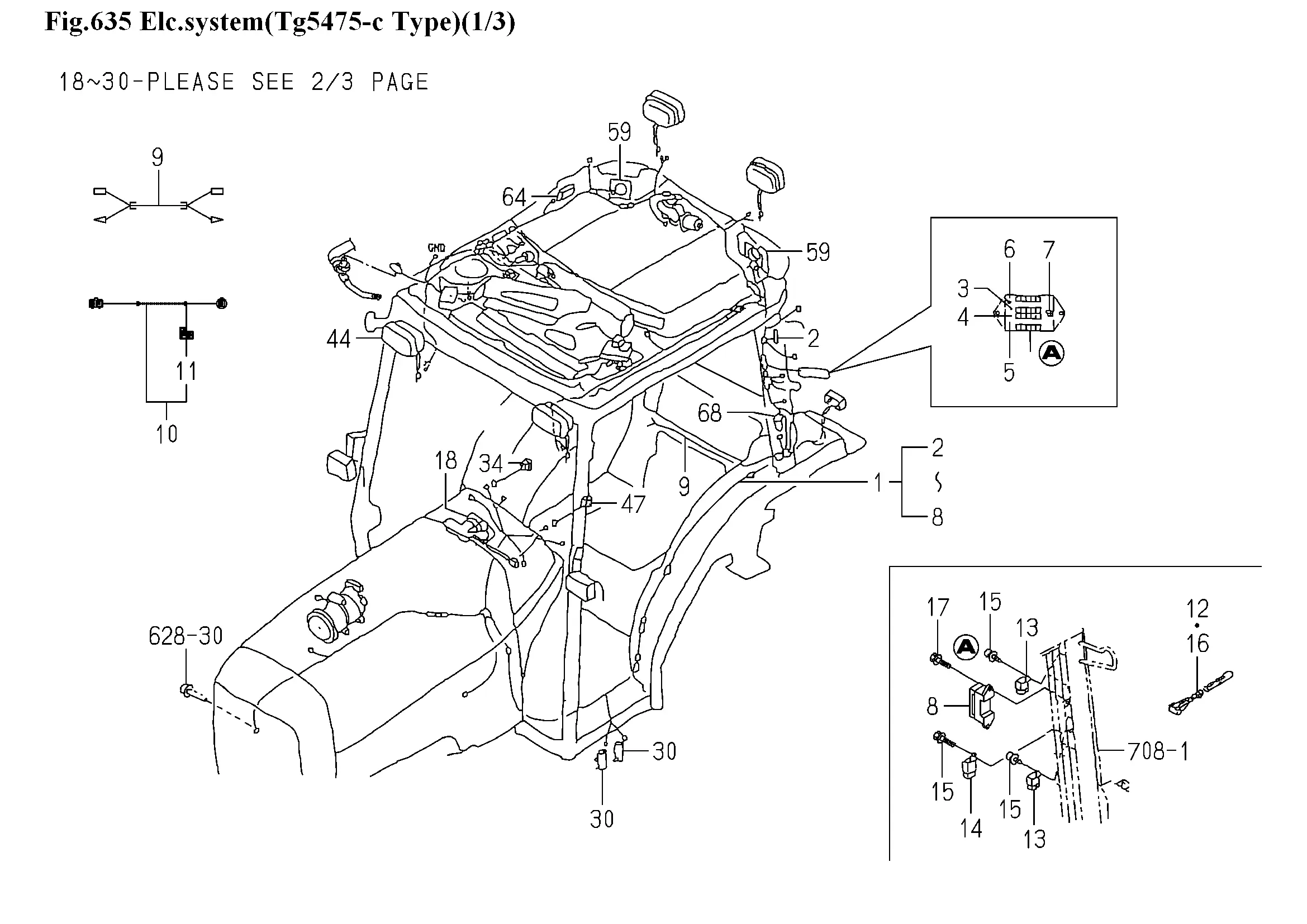

Kabelbaum, Kabine
Ersatzteile (68 Teile)
1
1747-658-210-00
2
DIODE
3
FUSE/BLADE/32V7.5A
4
FUSE/BLADE/32V15A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V05A
7
TOOL/FUSE
8
COVER/FUSE
9
1746-658-210-00
10
1747-658-200-10
11
DIODE
12
BAND,WIRE/140
13
Relais Motorstart
14
Relais 5 Pol., ACA3213-1
15
V210-360-601-20
16
BAND,WIRE/140
17
BOLT,SP/M6X16
18
MOTOR/WIPER/175 ASSY
19
GROMMET
20
V301-260-006-00
21
NUT,WASHER/M6
22
Halterung für Scheibenwischermotor
23
BOLT/M6X16X16
24
1673-705-008-10
25
Wischerarm
26
BLADE/WIPER/450 ASSY
27
TANK/WASHER/2M
28
GROMMET/W/T
29
Deckel, Tank Scheibenwaschanlage
30
PUMP/W/T
31
NUT,WASHER/M6
32
1729-658-270-10
33
FLANGEBOLT/M8X16
34
Switch Wiper Assy
35
1746-658-002-00
36
Nozzle Washer Assy
37
1704-666-058-10
38
1650-658-005-00
39
1691-658-003-00
40
1757-705-011-00
41
CAP/22X38
42
1704-666-058-10
43
Ventil
44
1696-658-340-20
45
Halter, Arbeitsscheinwerfer
46
V363-260-008-00
47
REAR DIFF SWITCH
48
DIFF LOSTING MARK
49
1711-666-052-10
50
CAP/22X38
51
BOLT,SP/M6X16
52
CLAMP,WINKER B
53
1729-658-003-30
54
1742-658-220-10
55
1742-658-001-10
56
1719-720-051-00
57
FLANGEBOLT/M6X12
58
BOLT/M6X20/16
59
Lautsprecher
60
1673-666-621-00
61
V111-174-001-60
62
V360-260-004-00
63
1783-658-001-00
64
Beleuchtung, innen
65
1729-658-234-00
66
SCREW,SP/M5X20
67
V360-260-005-00
68
1742-658-210-30
