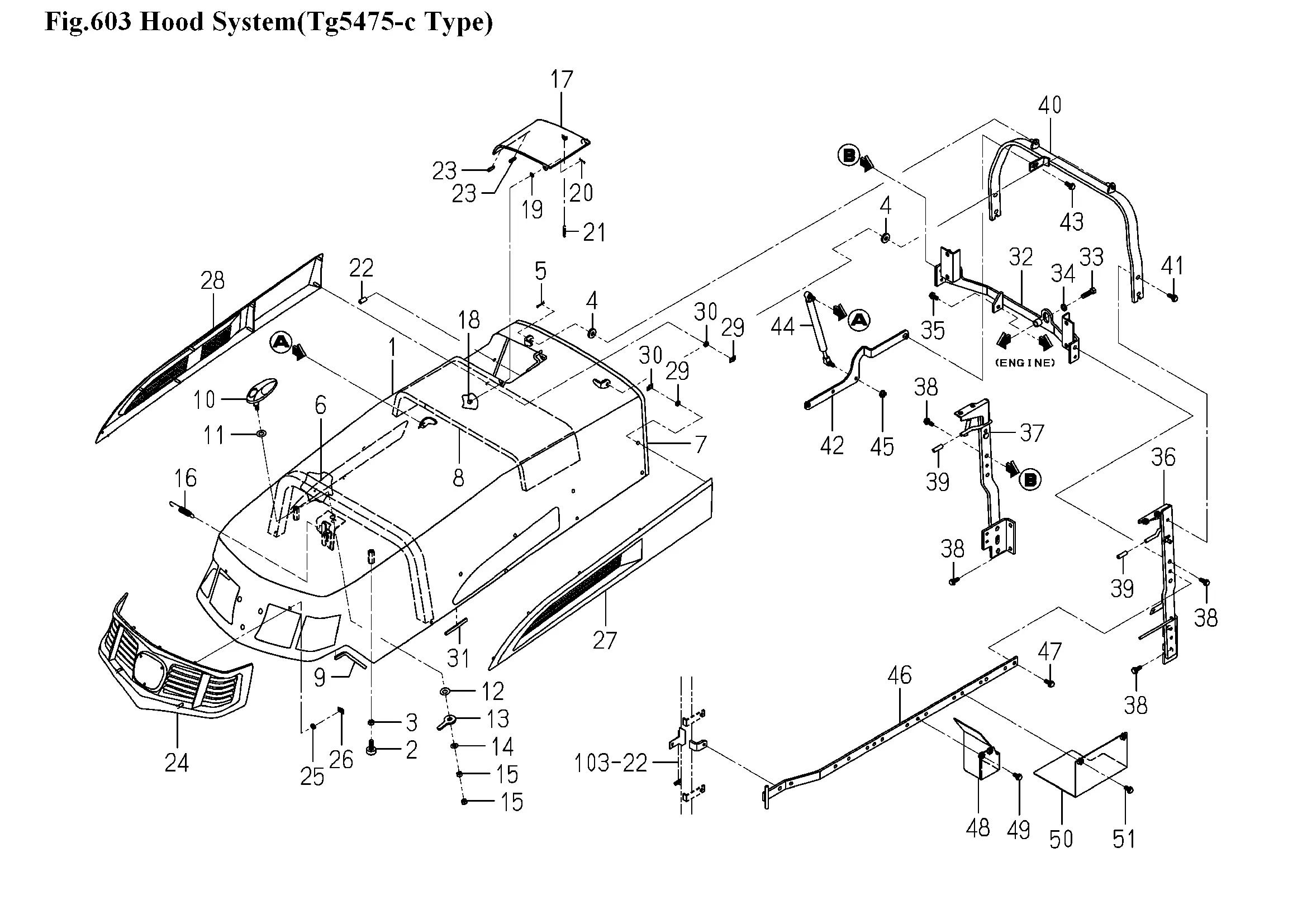

Motorhaube
Ersatzteile (51 Teile)
1
1734-601-200-70
2
1421-602-005-10
3
NUT/M8/7T
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
1734-601-006-10
7
Kantenschutz
8
Dämmmatte
9
TRIM/150
10
Handgriff
11
WASHER/12X25X02
12
3610-440-018-00
13
ARM/PLATE
14
WASHER,PL/M8
15
NUT/M8
16
SPRING/HE089
17
COVER COMP
18
PIN/06X07
19
V411-260-006-00
20
PIN/SNAP
21
SPRING/HE036
22
TUBE/06X10X20
23
TRIM/20
24
1729-601-001-20
25
WASHER/6X14X3
26
NUT,SPEED/M6
27
1734-601-001-10
28
Leiste, re
29
WASHER/6X14X3
30
NUT,SPEED/M6
31
TRIM/85
32
1734-601-300-00
33
V203-361-003-50
34
WASHER,SP/M10
35
FLANGEBOLT/M8X16
36
1734-601-310-20
37
1734-601-320-20
38
V231-360-802-00
39
TUBE/07X09X30
40
1729-601-240-10
41
V231-360-802-00
42
1734-601-250-30
43
V231-360-802-00
44
DUMPER/HOOD ASSY
45
Kombimutter-M8
46
1748-601-220-00
47
V231-360-802-00
48
1748-601-210-00
49
FLANGEBOLT/M8X16
50
1748-601-230-00
51
FLANGEBOLT/M8X16
