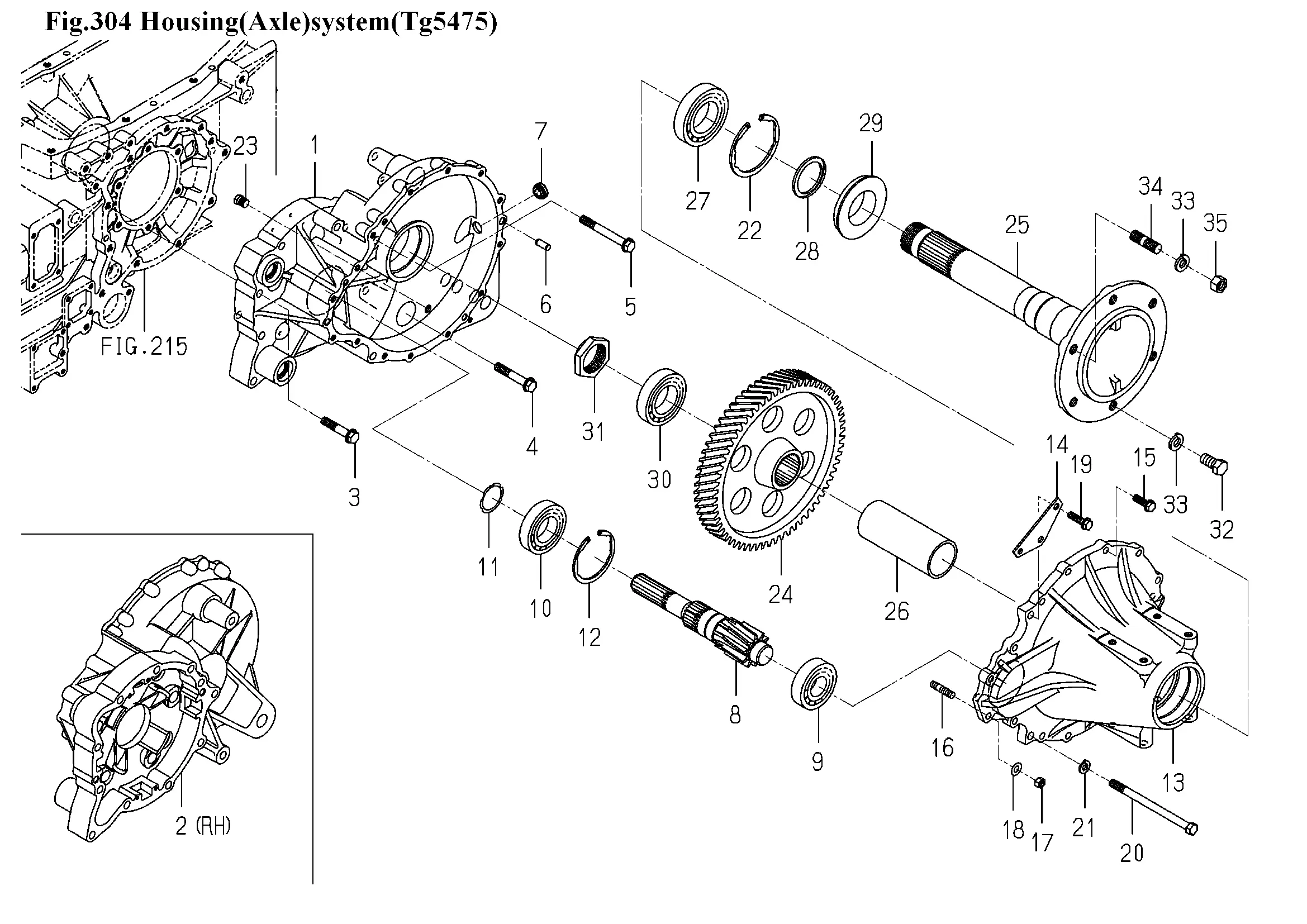

Achsgehäuse, hinten
Ersatzteile (35 Teile)
1
Zwischengehäuse, li
2
Zwischengehäuse, re
3
FLANGEBOLT/M12X60
4
V231-361-207-00
5
V231-361-210-00
6
PIN,ST,B/10X24
7
GAUGE/LEBEL
8
1734-306-003-10
9
V600-410-630-70
10
BEARING,RB/6209
11
V706-140-045-00
12
RING,SNAP/R85
13
1734-306-004-20
14
1734-306-010-00
15
FLANGEBOLT/M10X30
16
STUD/M10X30/7T
17
V304-460-010-00
18
WASHER,SP/M10
19
V231-361-003-50
20
1734-306-008-00
21
WASHER,SP/M12
22
V707-140-100-00
23
PLUG/SCREW/SEAL
24
1734-306-006-10
25
SHAFT/WHEEL
26
COLLAR/56X65X156
27
BEARING,RB/6211
28
COLLAR/55X70X4
29
SEAL/OIL/UNITIGHTS
30
BEARING,RB/6201R
31
NUT/M50X1.5
32
1746-306-001-00
33
1746-306-002-00
34
BOLT,STUD/M16X30
35
NUT/M16
