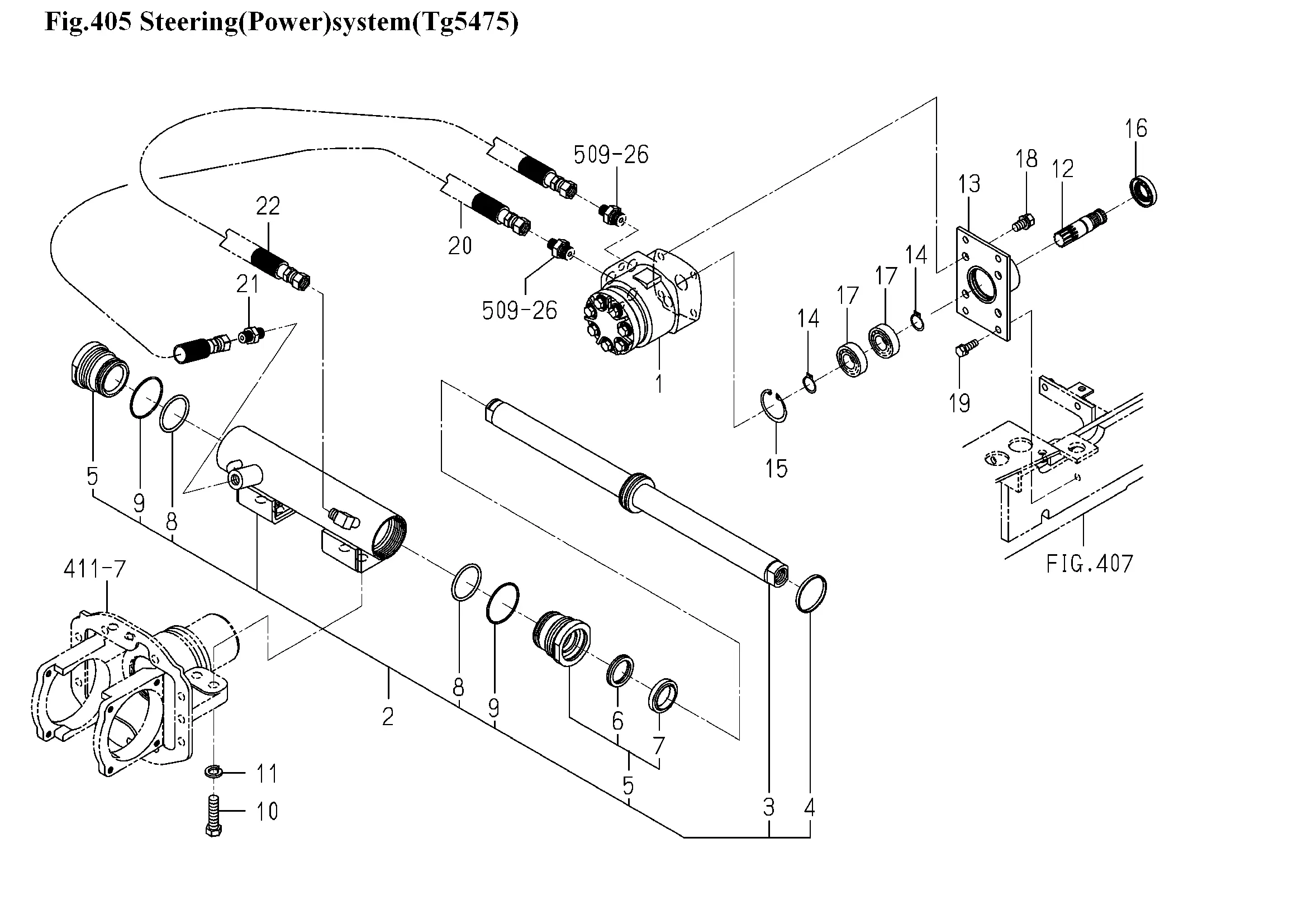

Lenkzylinder
Ersatzteile (22 Teile)
1
1646-407-670-20
2
K167-007-000-10
3
ROD/PISTON COMP
4
PACKING/PISTON
5
COVER/ROD SET
6
PACKING/ROD
7
SEAL/DUST
8
O-RING/1B,P44
9
O-RING/1A,S53
10
Feingewindeschraube, M12x1,25x45
11
WASHER,SP/M12
12
SHAFT
13
Gehäuse, Hydraulikpumpenhalter
14
RING,SNAP/20 C
15
RING,SNAP/42 C
16
Wellendichtring
17
BEARING/BALL
18
BOLT,S/M10X20
19
V211-560-802-00
20
HOSE/325 ASSY
21
Adapter
22
1734-407-210-20
