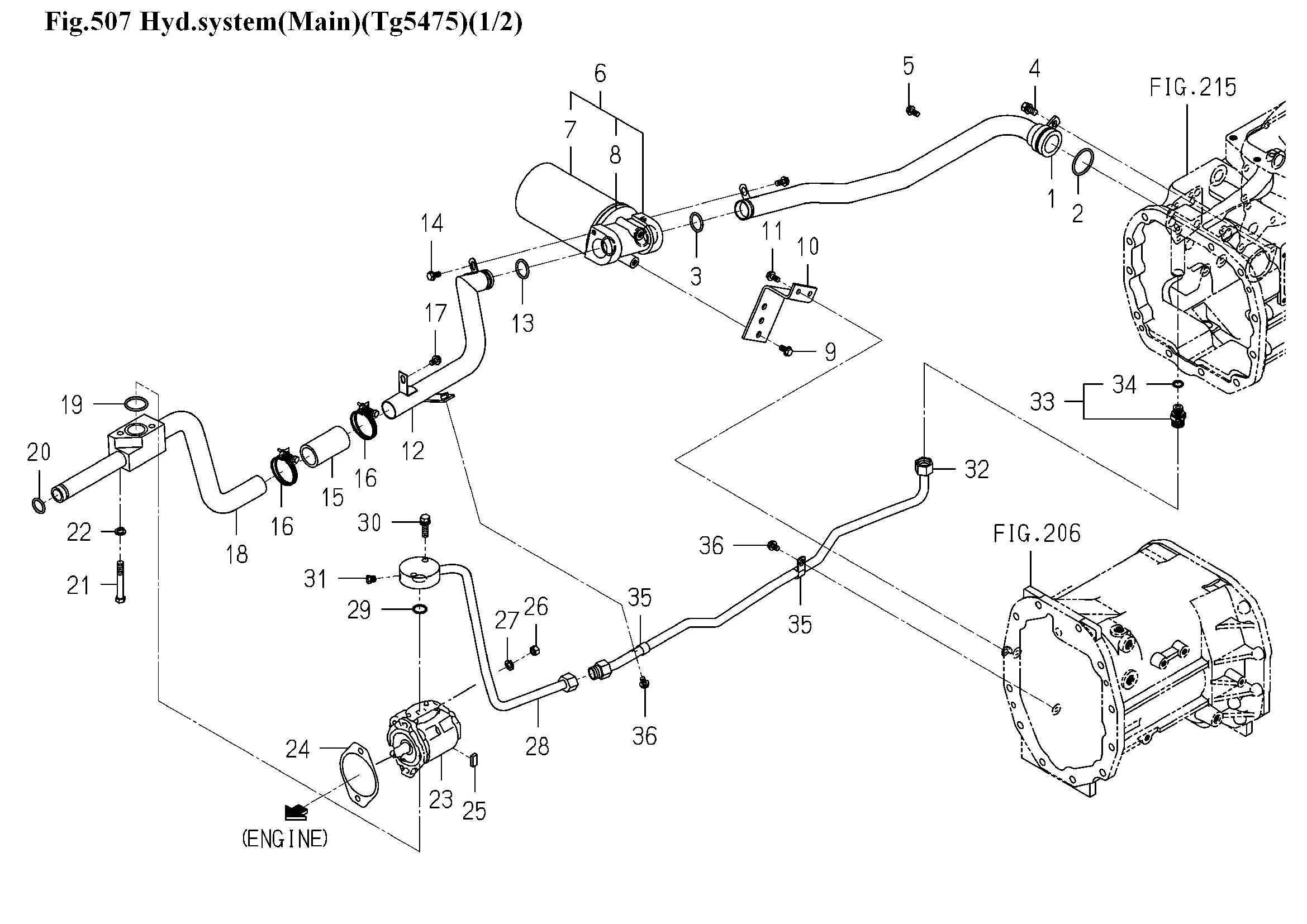

Hydraulikfilter, Leitungen
Ersatzteile (85 Teile)
1
PIPE/SUC/REAR COMP
2
O-RING/1B,P44
3
O-RING/1A,P28
4
BOLT,S/M10X20
5
V231-360-801-20
6
FILTER/SUCTION/20
7
Hydraulikfilter
8
O-Ring
9
V231-361-002-50
10
1747-508-051-00
11
FLANGEBOLT/M8X16
12
1742-508-220-30
13
O-RING/1A,P28
14
V231-360-801-20
15
Verbindungsschlauch
16
CLAMP/WIRE/36-44
17
V231-360-801-20
18
PIPE/SUC/FRONT COMP
19
O-RING/1B,P34
20
RING/O
21
V201-361-007-00
22
WASHER,SP/M10
23
Hydraulikpumpe
24
GASKET/PUMP
25
Dichtung
26
NUT/M10
27
WASHER,SP/M10
28
Hydraulikleitung
29
O-RING/1B,P20
30
BOLT,S/M10X35/7T
31
PLUG/SCREW/SEAL
32
1742-508-310-20
33
1729-508-290-20
34
O-RING/1B,P14
35
1675-508-003-00
36
V231-360-801-20
37
K200-114-000-30
38
VALVE/PRV/B ASSY
39
O-RING/1B,P20
40
O-RING/AS568/013
41
O-RING/AS568/014
42
O-RING/AS568/015
43
K200-114-100-10
44
O-RING/1B,P20
45
O-RING/1B,S16
46
FILTER/LINE/12X18X15
47
PLUG/SCREW/SEAL
48
Ventil
49
O-RING/1B,P20
50
O-RING/1B,P10A
51
O-RING/1B,P12
52
O-RING/1B,P14
53
1742-508-270-20
54
1729-508-290-20
55
O-RING/1B,P14
56
Steuerventil
57
Abdeckung
58
V211-260-806-50
59
V211-260-805-00
60
VALVE,RELIEF ASSY
61
O-RING/1B,P12
62
O-RING/1B,P18
63
K231-008-000-20
64
O-RING/1B,P10A
65
RING/BACK UP
66
COLLAR/11X21X03
67
RING/SNAP
68
SEAL,DUST
69
O-RING/1B,P22
70
O-RING/1B,P16
71
NUT/M10
72
1568-507-001-10
73
COVER/SHAFT COMP
74
V201-260-802-00
75
NUT/M8
76
KNOB
77
SCREW/M6X40
78
V401-160-006-00
79
PIPE/PTO/H COMP
80
ADAPTOR/PF1/4 ASSY
81
O-RING/1B,P11
82
ADAPTER/L/PF1/4 ASSY
83
O-RING/1B,P11
84
HOLDER/10
85
V231-360-801-20
