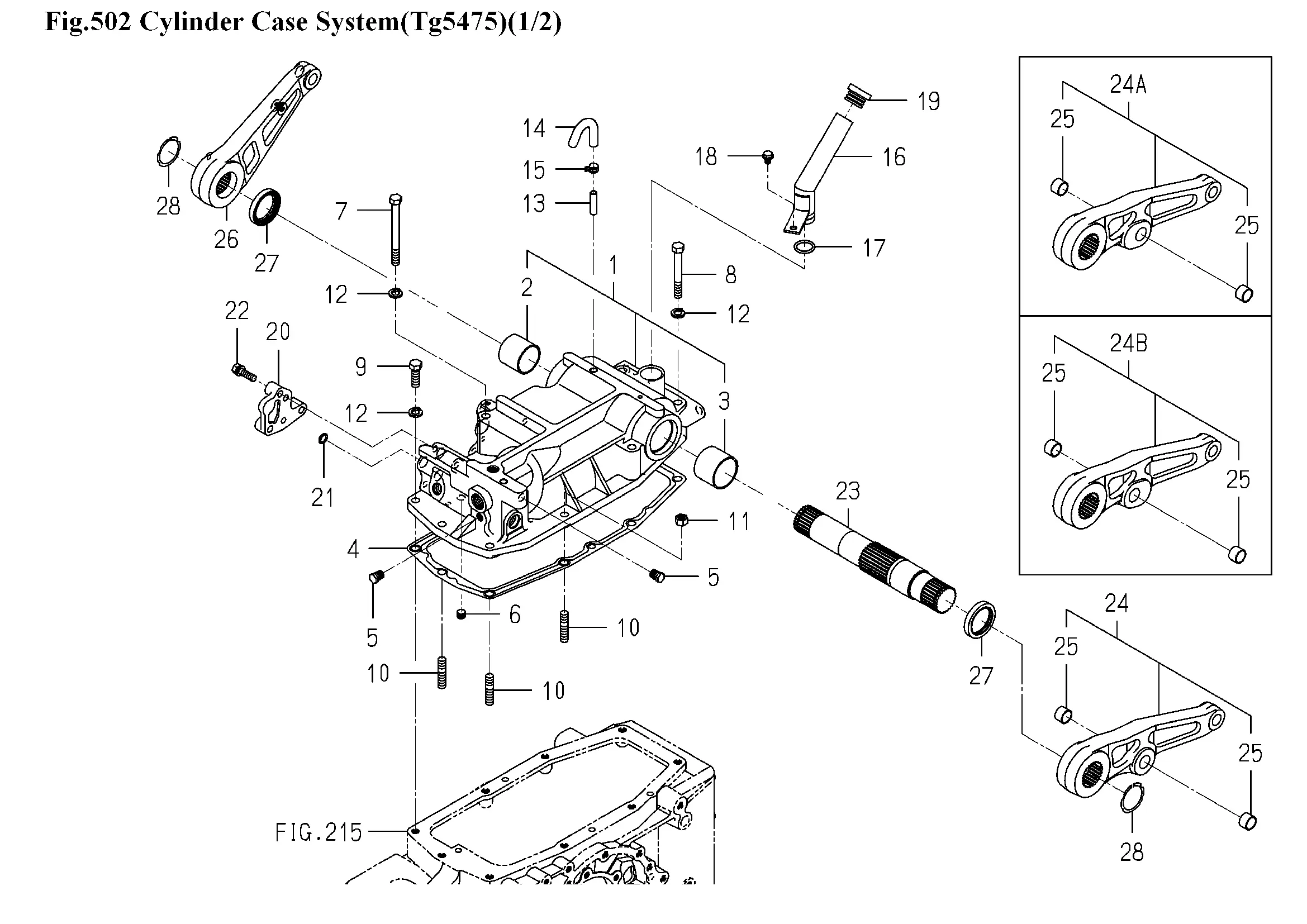

Heckhydraulik
Ersatzteile (50 Teile)
1
Gehäuse, Zylinder
2
BUSH/45X50X42
3
BUSH/50X55X42
4
GASKET/CASE/CYLINDER
5
PLUG/SCREW/SEAL
6
PLUG/SCREW/SEAL
7
V201-361-212-00
8
BOLT/M12X90/7T
9
V201-361-203-50
10
STUD/M12X32/7T
11
V304-460-012-00
12
WASHER,SP/M12
13
PIPE,BREATHER
14
1716-501-006-10
15
J062-138-148-00
16
1742-501-210-10
17
O-RING/1B,P26,HS90
18
V231-360-801-20
19
CAP/OIL(30)
20
COVER
21
O-RING/1B,P14
22
BOLT,SEMS
23
BAR
24B
Hubarm, links
25
Buchse 20/23/15
26
ARM/LIFT/RH
27
SEAL,OIL/TC45609
28
V706-140-045-00
29
PISTON
30
RING
31
O-RING/1B,P75
32
ROD
33
V580-140-805-00
35
Hebel
36
1744-501-001-00
37
BOLT/M14X30/7T
38
WASHER,SP/M14
39
Hydraulikzylinder
40
NIPPLE,GREASE
41
PIN/22X89
42
PIN COMP
43
FLANGEBOLT/M8X16
44
1744-501-200-00
45
ADAPTER/L/G3/8 ASSY
46
O-RING/1B,P14
47
ADAPTER/90
48
1440-105-006-00
49
FLANGEBOLT/M8X16
50
1744-501-210-00
51
FLANGEBOLT/M8X16
