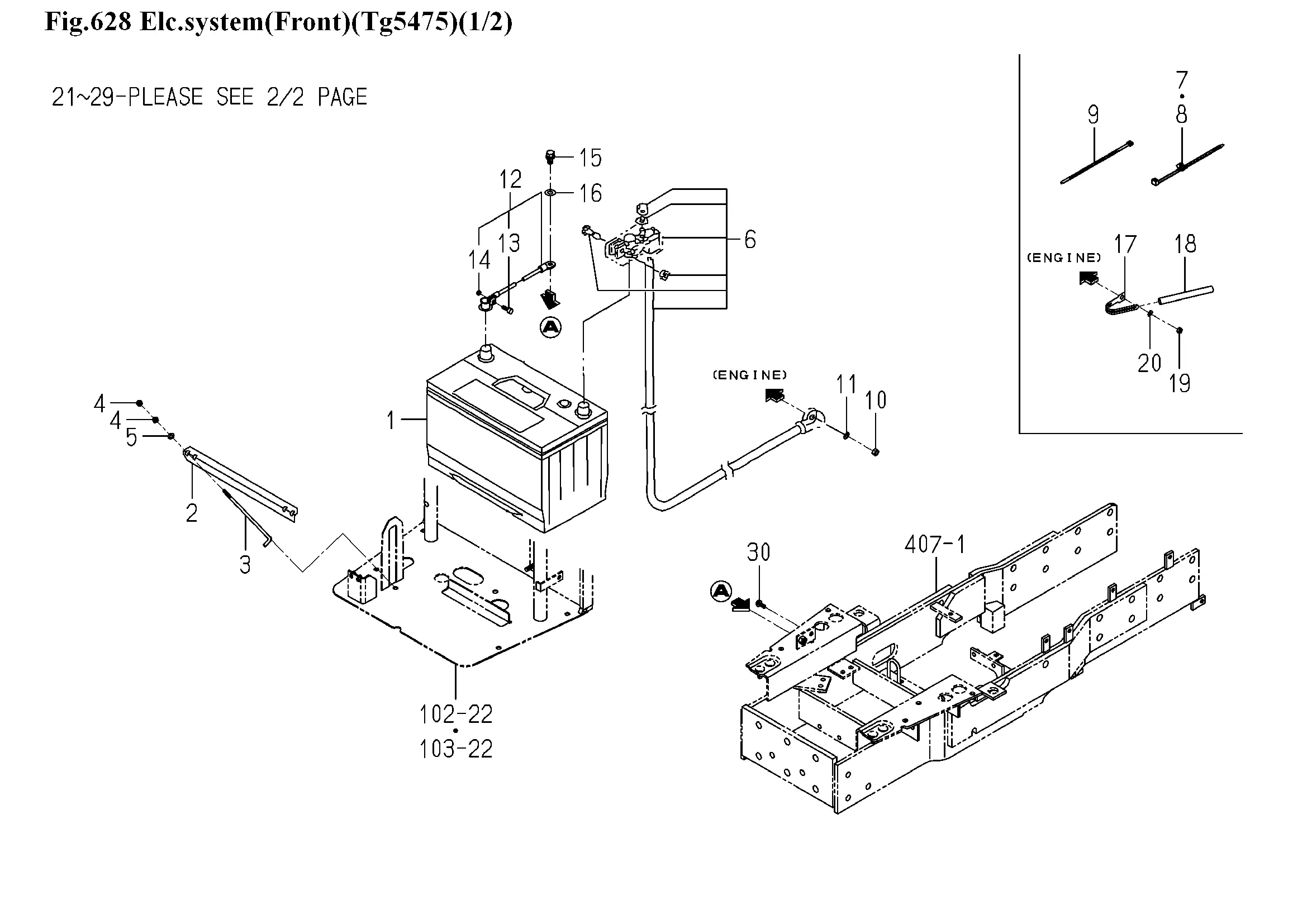

Batterie, Scheinwerfer
Ersatzteile (35 Teile)
1
Batterie, 12V, 95 Ah
2
1422-687-001-10
3
BOLT/BATTERY
4
V301-260-006-00
5
V411-260-006-00
6
1748-650-200-00
7
1560-666-004-00
8
1560-666-004-00
9
BAND,WIRE/140
10
NUT/M8
11
WASHER,SP/M8
12
CABLE/EARTH ASSY
13
1725-112-212-00
14
1725-112-213-00
15
BOLT,S/M10X20
16
V411-260-010-00
17
CLAMP
18
TUBE/120
19
V301-260-006-00
20
V401-160-006-00
21
1674-652-200-20
22
1674-652-202-10
23
SCREW/M6X30
24
SPRING/HC016
25
1746-650-210-10
26
1746-650-220-10
27
V111-165-001-20
28
1740-680-530-20
29
FLANGEBOLT/M6X16
30
FLANGEBOLT/M6X16
31
BAND,WIRE/140
32
1342-402-006-00
33
Kabel, Temperaturfühler
34
1747-650-002-00
35
HARNESS,GLOW
