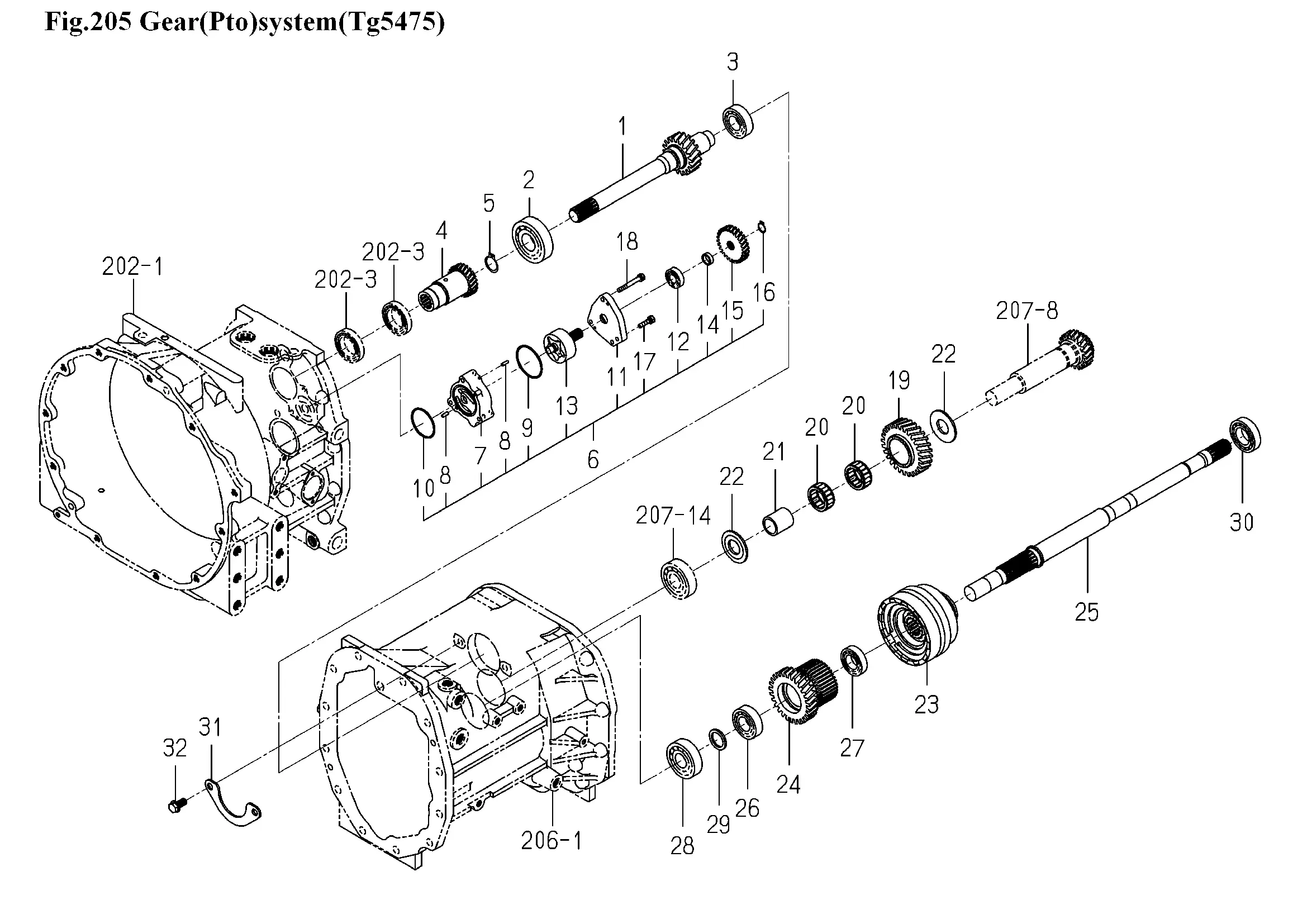

Getriebe, PTO
Ersatzteile (32 Teile)
1
GEAR/HELICAL/18
2
V600-410-630-60
3
BEARING,RB/6205
4
1747-209-052-00
5
RING,SNAP/25 C
6
1747-209-510-10
7
1747-209-054-10
8
6213-129-003-00
9
O-RING/1A,S53
10
O-RING/1A,S48
11
1747-209-056-10
12
BEARING,RB/6002
13
1747-209-500-00
14
COLLAR/15X19X06
15
1747-209-053-00
16
Sicherungsring 15x1
17
BOLT,S/M6X20/7T
18
BOLT,S/M6X50/7T
19
Zahnrad, Z27
20
BEARING/NEEDLE
21
BUSH/25X32X36
22
WASHER/25X55X04
23
Kupplung, PTO
24
Zahnrad, Z27
25
SHAFT/DRIVE/PTO
26
BEARING,RB/6205
27
BEARING/BALL
28
BEARING/BALL
29
COLLAR/26X35X03
30
BEARING/BALL
31
PLATE
32
V231-361-002-00
