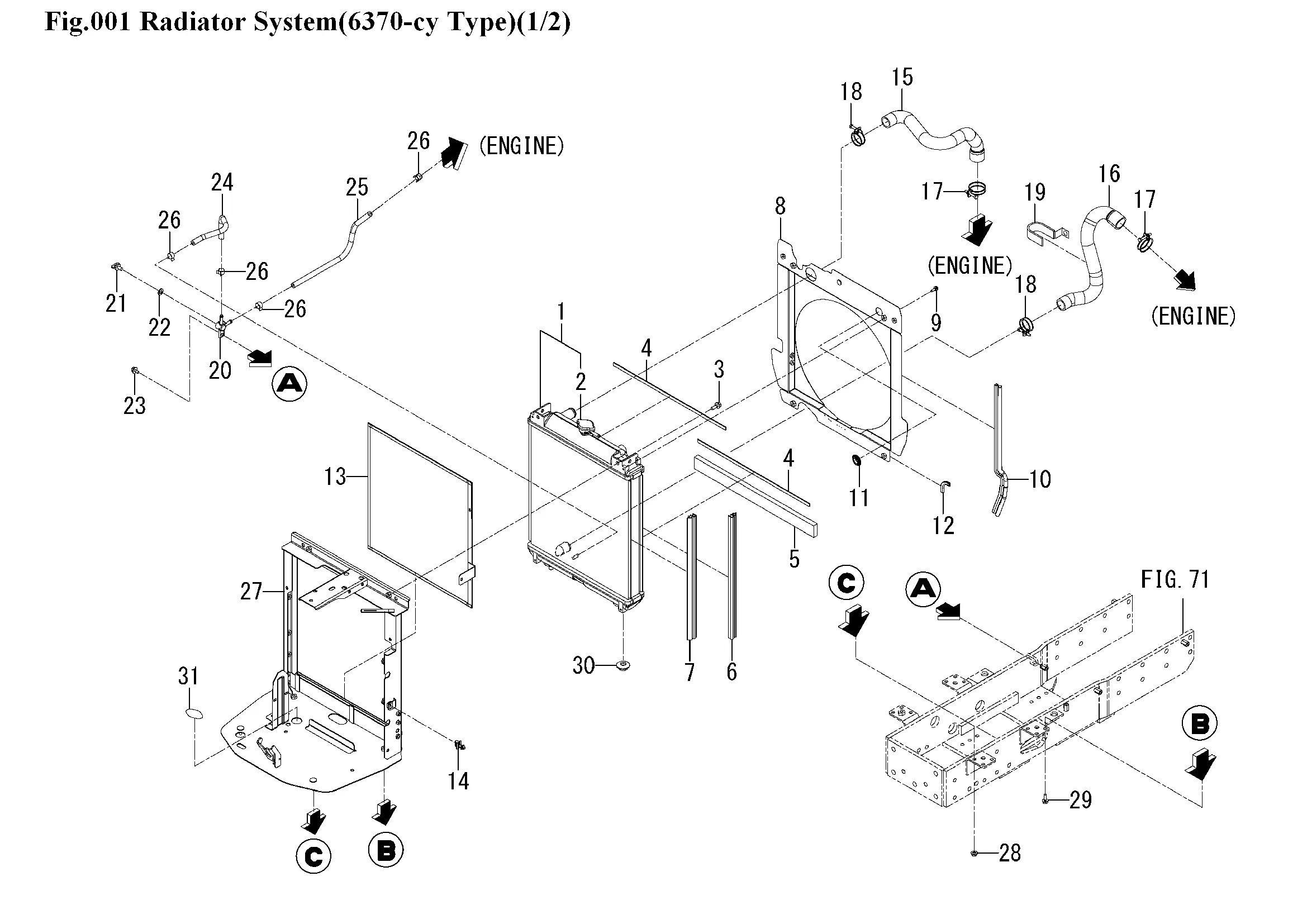

Kühler
Ersatzteile (60 Teile)
1
RADIATOR ASSY
2
CAP
3
1746-803-003-00
4
INSULATOR/10X10X450
5
INSULATOR/40X480
6
INSULATOR/425
7
INSULATOR/425
8
1792-102-250-10
9
1746-804-002-00
10
INSULATOR/455
11
3670-272-001-00
12
INSULATOR/55
13
PROTECTOR/NET COMP
14
LATCH ASSY
15
HOSE/RADIATOR/INLET
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
J061-230-038-00
19
CLAMP
20
CONNECTOR
21
1424-101-203-00
22
PACKING
23
BOLT,SP/M8X20
24
HOSE/270
25
HOSE/350
26
CLIP/HOSE/14.7-15.9
27
1792-102-220-50
28
1746-816-001-00
29
1746-804-003-00
30
BUSH,LEVER
31
1801-504-002-00
32
1785-102-210-30
33
1746-817-001-00
34
WASHER,PL/M8
35
SPRING/HT020
36
1792-102-240-00
37
PIN/SNAP
38
1801-102-004-00
39
CAP/PARKING
40
RESERVETANK ASSY
41
CAP
42
PACKING
43
1690-102-214-00
44
1690-102-215-00
45
1690-102-216-00
46
HOSE/RUBBER
47
BAND,WIRE/140
48
1792-102-006-00
49
1746-804-003-00
50
1792-102-004-20
51
INSULATOR/700
52
TRIM/160
53
PROTECTOR/185
54
1746-804-001-00
55
NUT/WASHER
56
1792-102-270-10
57
TUBE/07X09X30
58
1815-802-001-00
59
1792-102-280-10
60
NUT,WASHER/M6
