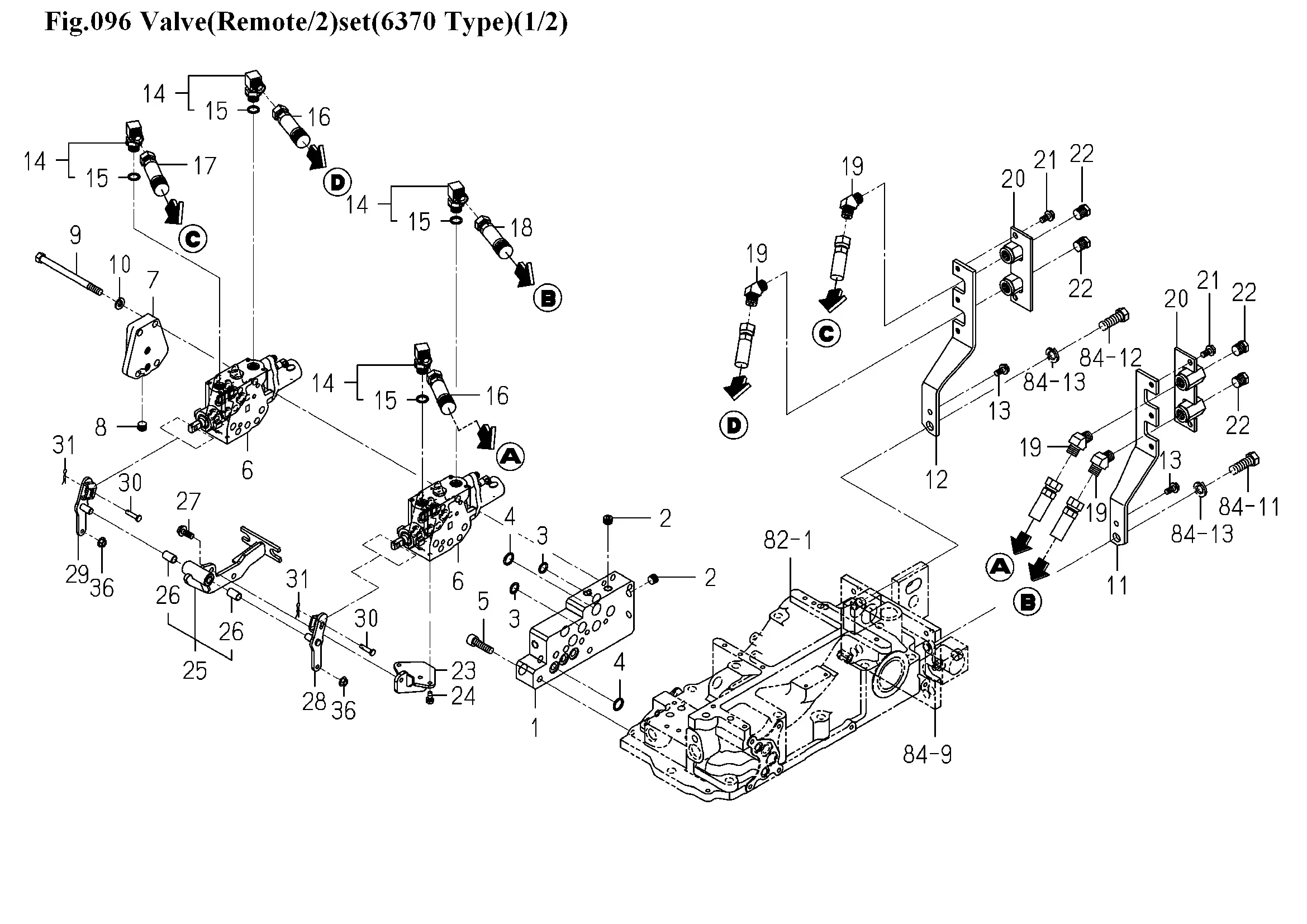

Zusatzsteuergerät
Ersatzteile (43 Teile)
1
1815-512-002-30
2
PLUG/SCREW/SEAL
3
O-RING/1B,P14
4
O-RING/1B,P16
5
V220-541-003-50
6
VALVE/CONTROL/075/4
7
1792-511-002-00
8
PLUG/SCREW/SEAL
9
V201-361-013-00
10
WASHER,SP/M10
11
1815-512-003-00
12
1815-512-004-00
13
FLANGEBOLT/M8X16
14
ADAPTER/L/G3/8 ASSY
15
O-RING/1B,P14
16
1801-509-250-00
17
1801-511-220-00
18
Schlauch, 750
19
ADAPTER/45/R3/8XG3/
20
1815-512-310-00
21
FLANGEBOLT/M8X16
22
PLUG/SCREW/SEAL
23
1816-512-220-10
24
BOLT,S/M6X16/7T
25
1816-512-240-00
26
BUSH/10X12X20
27
V231-360-802-00
28
1816-512-200-10
29
1816-512-210-10
30
PIN/06X23
31
PIN/SNAP
32
CABLE/FIRST/G ASSY
33
CABLE/SECOND/G ASSY
34
JOINT/BALL/M06
35
V301-260-006-00
36
NUT/FLANGE/M06
37
BRACKET/LEVER COMP
38
FLANGEBOLT/M8X16
39
LEVER/SUBCON ASSY
40
BUSH/10X12X15
41
1815-512-001-10
42
1719-312-001-00
43
GRIP/THROTTLE
