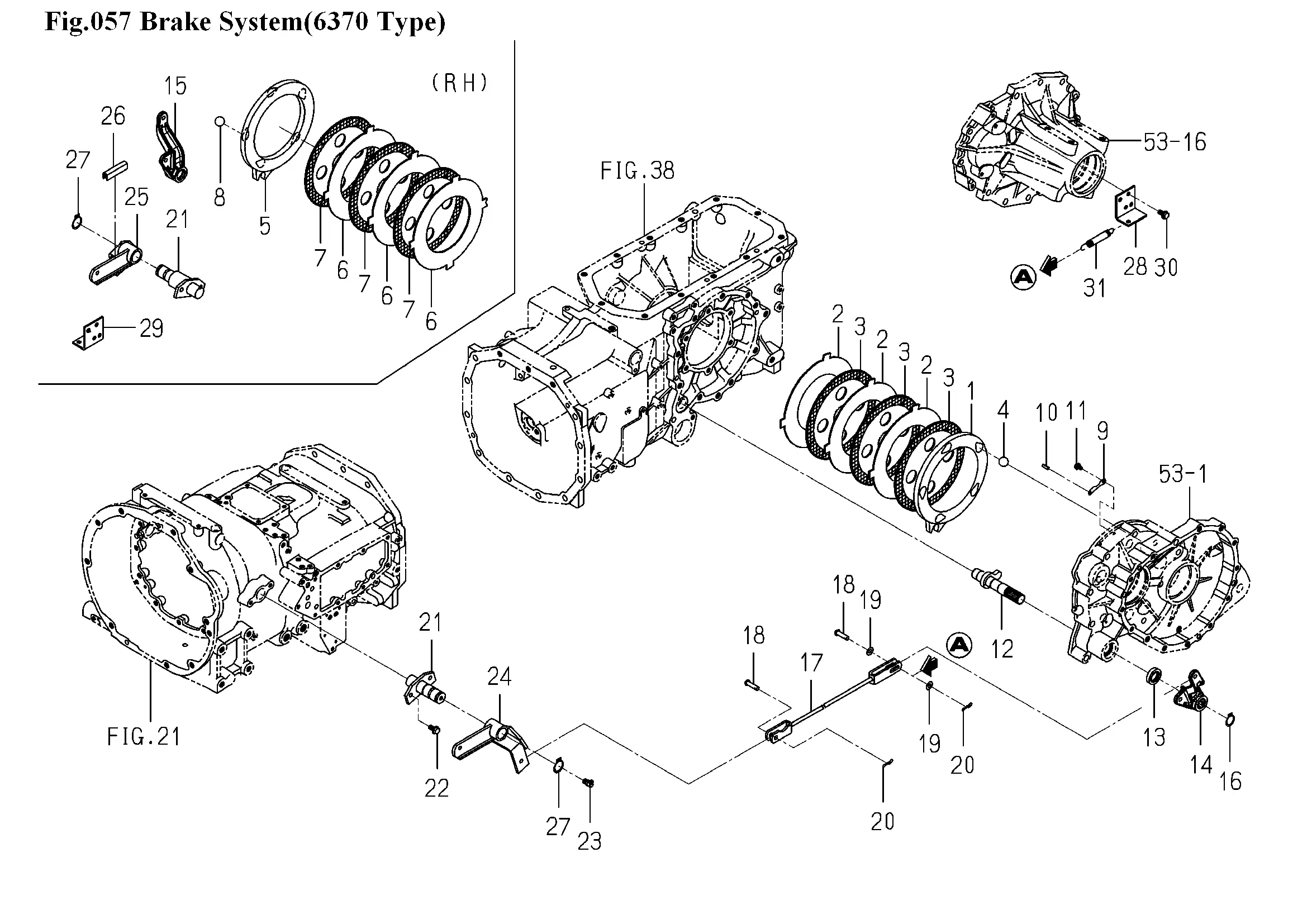

Bremse
Ersatzteile (31 Teile)
1
PLATE/PRESSURE/LH
2
PLATE/SEPARATER
3
PLATE/FRICTION
4
STEELBALL
5
PLATE/PRESSURE/RH
6
PLATE/SEPARATER
7
PLATE/FRICTION
8
STEELBALL
9
PLATE
10
PIN,SPRING/5X16 W
11
FLANGEBOLT/M6X10
12
CAM/BRAKE COMP
13
SEAL,OIL/TC22358
14
1815-310-001-00
15
1815-310-002-10
16
RING,SNAP/22 C
17
ROD/FORK COMP
18
PIN,YOKE A
19
WASHER,PL/M8
20
Splint
21
1792-310-320-00
22
FLANGEBOLT/M8X16
23
NIPPLE,GREASE/PT1/8
24
ARM/BRAKE/LH COMP
25
ARM/BRAKE/RH COMP
26
1650-720-014-00
27
RING,SNAP/25 C
28
1729-310-001-00
29
1729-310-002-00
30
FLANGEBOLT/M8X16
31
SPRING/HE095
