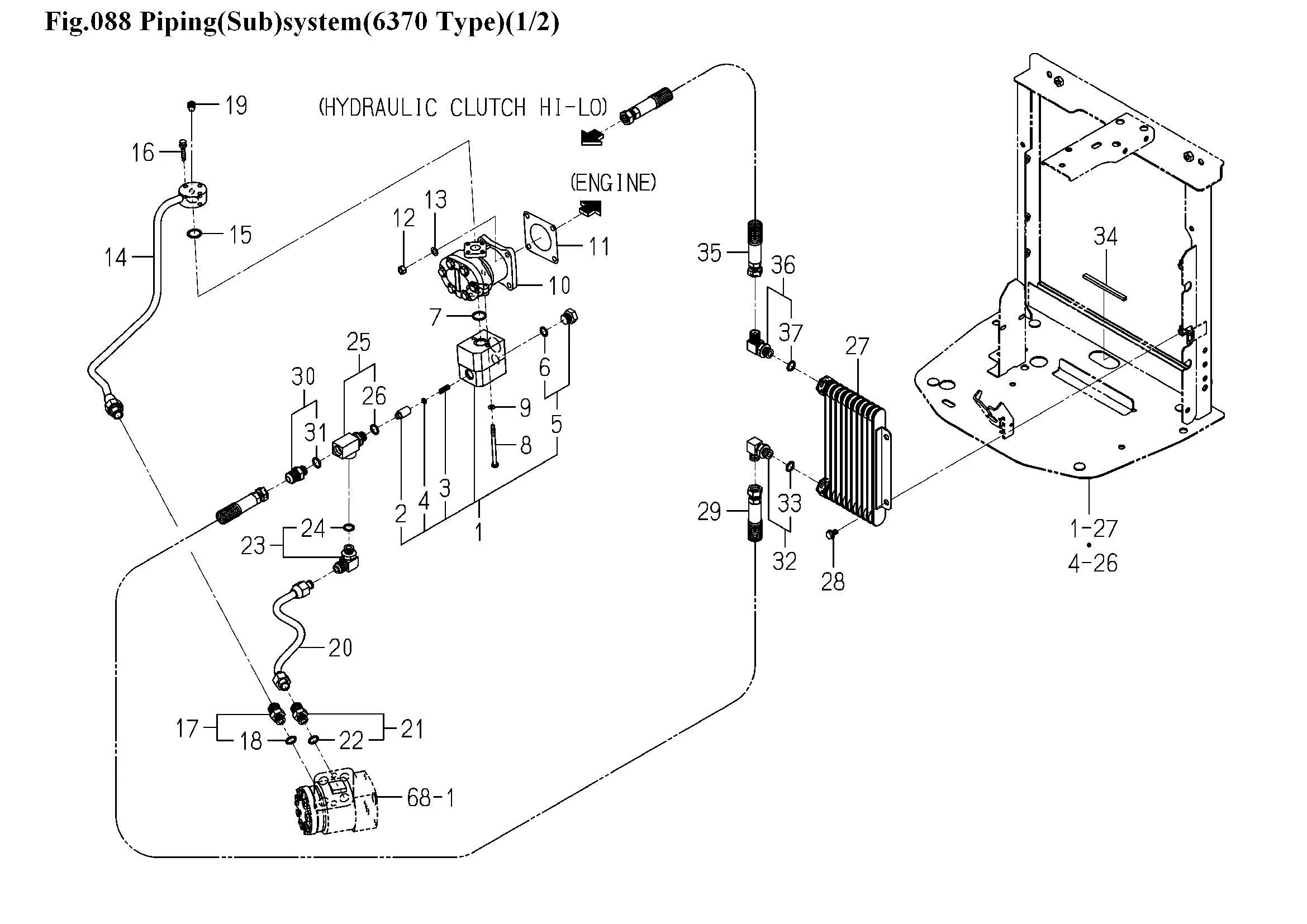

Ölkühler
Ersatzteile (80 Teile)
1
Mengenteiler
2
Einsatz
3
SPRING/HC024
4
COLLAR/06X10X02
5
PLUG/G3/8 ASSY
6
O-RING/1B,P14
7
O-RING/1B,P20
8
V200-360-608-00
9
V401-160-006-00
10
Hydraulikpumpe
11
PACKING,OIL PUMP
12
NUT/M8
13
WASHER,SP/M8
14
Druckleitung
15
O-RING/1B,P20
16
BOLT,S/M6X35/7T
17
ADAPTER/PF3/8 ASSY
18
O-RING/1B,P14
19
PLUG/SCREW/SEAL
20
Leitung, Rücklauf
21
ADAPTER/PF3/8 ASSY
22
O-RING/1B,P14
23
ADAPTER/L/PF3/8 ASSY
24
O-RING/1B,P14
25
ADAPTER/G3/8ASSY
26
O-RING/1B,P14
27
COOLER/OIL ASSY
28
V231-360-801-20
29
1792-509-310-00
30
ADAPTER/PF3/8 ASSY
31
O-RING/1B,P14
32
ADAPTER/L/G3/8 ASSY
33
O-RING/1B,P14
34
RUBBER,HOOK
35
1792-509-280-00
36
ADAPTER/L/G3/8 ASSY
37
O-RING/1B,P14
38
ADAPTER/L/G3/8 ASSY
39
O-RING/1B,P14
40
1342-402-006-00
41
BAND,WIRE/140
42
CLAMP
43
TUBE/120
44
1792-509-250-00
45
ADAPTER/PF1/4 ASSY
46
O-RING/1B,P11
47
1792-509-210-00
48
ADAPTER/L/PF1/4 ASSY
49
O-RING/1B,P11
50
VALVE/REVERSE/233/S/
51
VALVE/PRV/B ASSY
52
O-RING/1B,P20
53
O-RING/AS568/013
54
O-RING/AS568/014
55
O-RING/AS568/015
56
SOLENOID/HW/04/ SET
57
K200-231-201-00
58
SPRING/PLATE/03
59
V783-160-501-10
60
VALVE/CLUTCH PEDAL/2
61
SOLENOID/HW/01/ SET
62
K200-231-201-00
63
SPRING/PLATE/03
64
K200-099-002-00
65
O-RING/1B,P18
66
SPRING/HC020
67
GASKET/HVA1/097
68
BOLT/M8
69
V580-140-801-80
70
ADAPTER/G3/8 ASSY
71
O-RING/1B,P14
72
GASKET/REVERSE
73
FILTER/PORT/09
74
V211-260-804-50
75
V201-260-808-50
76
WASHER,SP/M8
77
SENSOR/PRESSURE ASSY
78
ORING/11
79
PLUG(PF1/4)
80
O-RING/1B,P11
