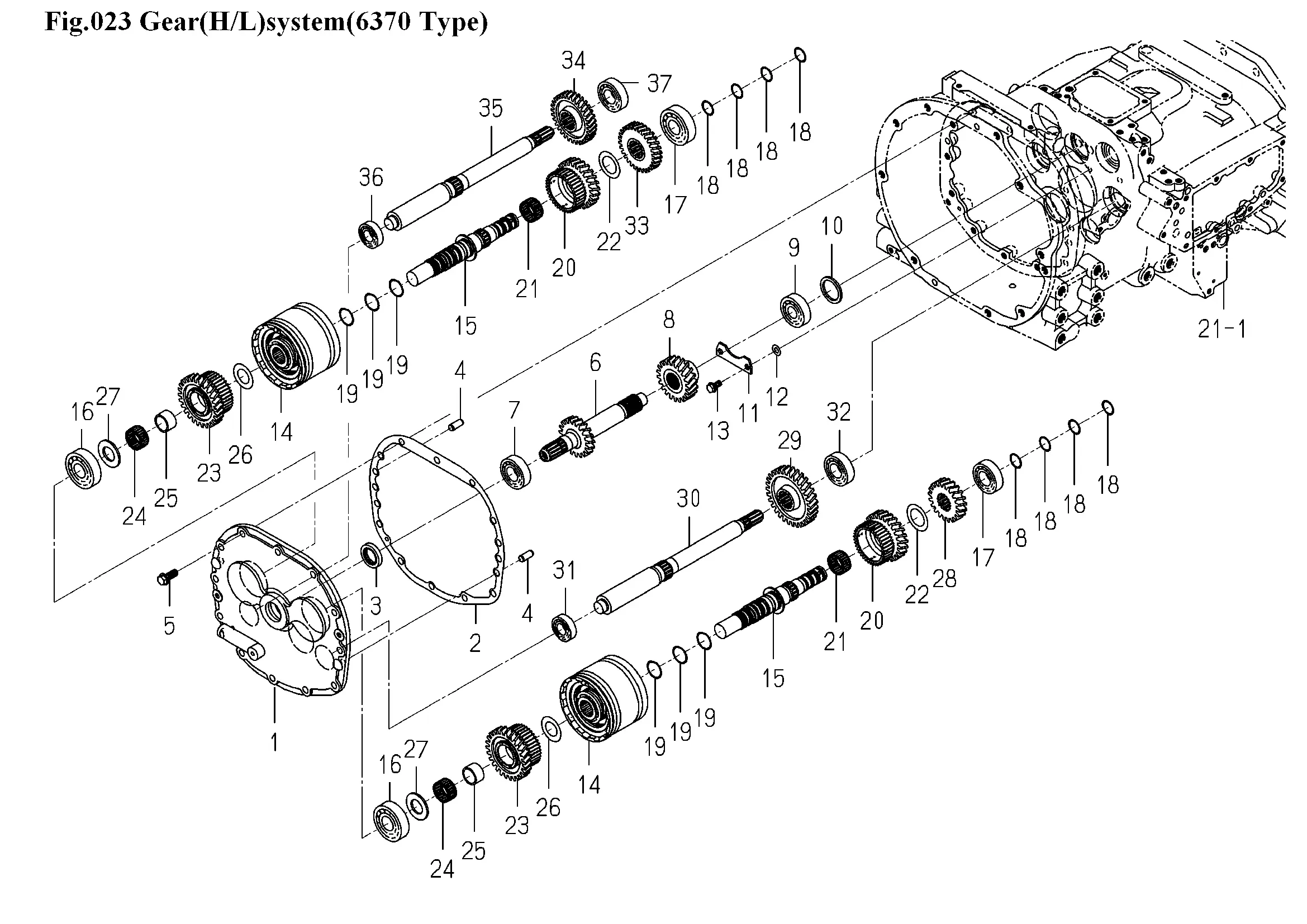

Gear(H/L)system(6370 Type)
Ersatzteile (37 Teile)
1
1792-203-210-20
2
Dichtung
3
SEAL,OIL/TC25407
4
PIN,ST,B/10X24
5
V231-361-002-50
6
1792-203-001-00
7
BEARING,RB/6205
8
1792-203-002-00
9
BEARING/BALL
10
1792-259-018-00
11
PLATE/I/25X76
12
WASHER,PL/M8
13
FLANGEBOLT/M8X16
14
CLUTCH/H/L ASSY
15
Welle
16
V600-410-630-50
17
BEARING/BALL 6205SH2
18
RING/SEAL/25X02
19
RING/30
20
1792-203-003-10
21
BEARING/NEEDLE
22
WASHER/36X46X02
23
1792-203-004-10
24
BEARING/NEEDLE
25
1792-203-011-00
26
1650-203-011-20
27
COLLAR/25X46X3
28
1792-203-005-00
29
1792-203-006-00
30
1792-203-009-10
31
1729-202-001-00
32
BEARING,RB/6205
33
1792-203-007-00
34
GEAR/HELICAL/31
35
1792-203-009-10
36
1729-202-001-00
37
BEARING,RB/6205
