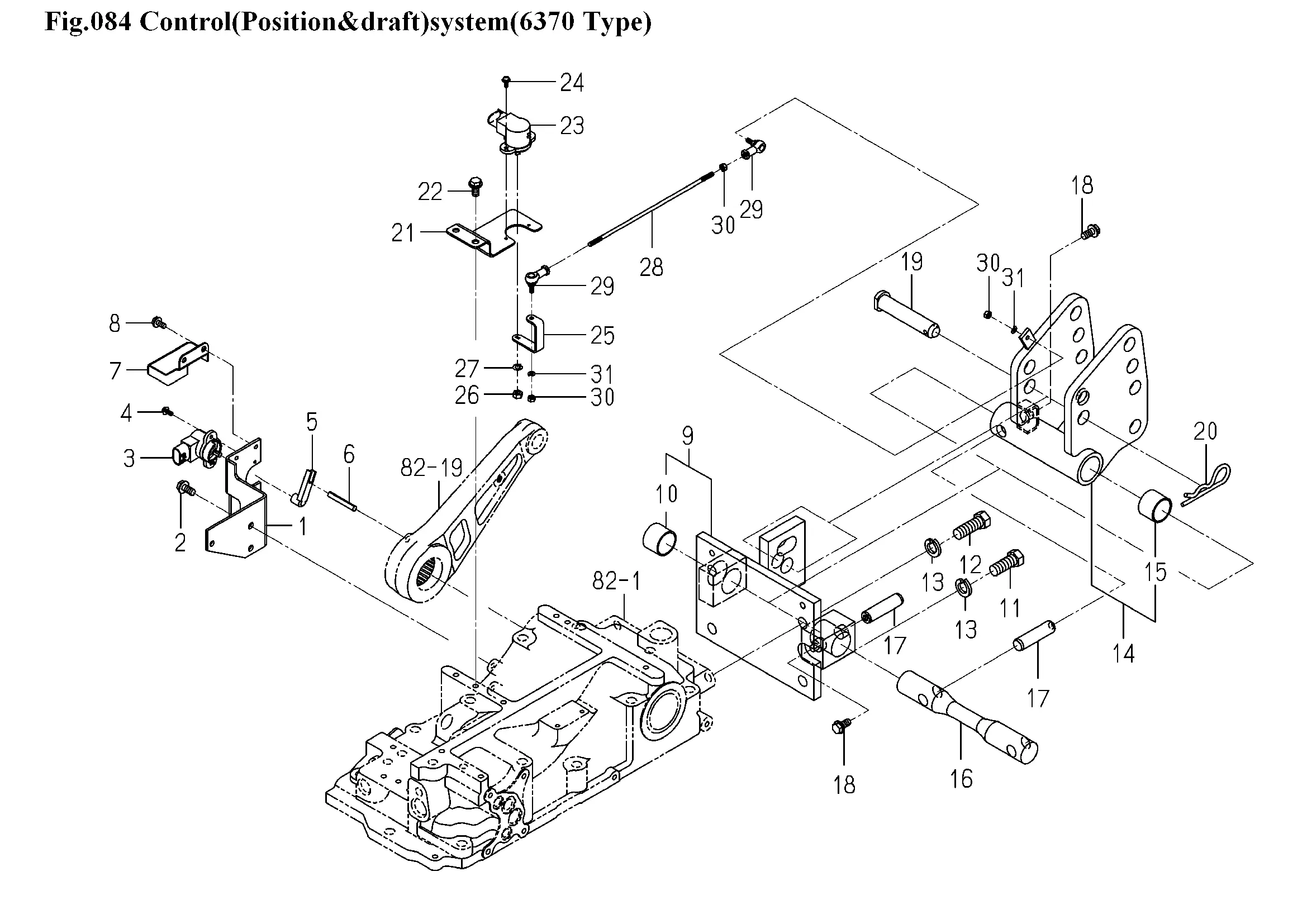

Schaltgestänge, Heckhydraulik
Ersatzteile (31 Teile)
1
1815-505-002-10
2
FLANGEBOLT/M8X16
3
SENSOR/ANGLE/11 ASSY
4
SCREW,SP/M4X12
5
ARM
6
V580-140-604-50
7
1815-505-003-00
8
FLANGEBOLT/M6X10
9
1796-514-260-10
10
BUSH/30X34X25
11
BOLT/M14X35/7T
12
V201-361-404-00
13
WASHER,SP/M14
14
1815-514-310-00
15
BUSH/30X34X25
16
1742-506-001-10
17
1796-514-001-10
18
FLANGEBOLT/M8X16
19
PIN/19X122
20
PIN,HAIR (19) *
21
1815-505-001-10
22
FLANGEBOLT/M8X16
23
SENSOR/ANGLE/75 ASSY
24
SCREW,SP/M4X12
25
1796-505-002-00
26
V301-260-006-00
27
V401-160-006-00
28
1796-505-003-00
29
JOINT/BALL/M05
30
V301-260-005-00
31
V401-160-005-00
