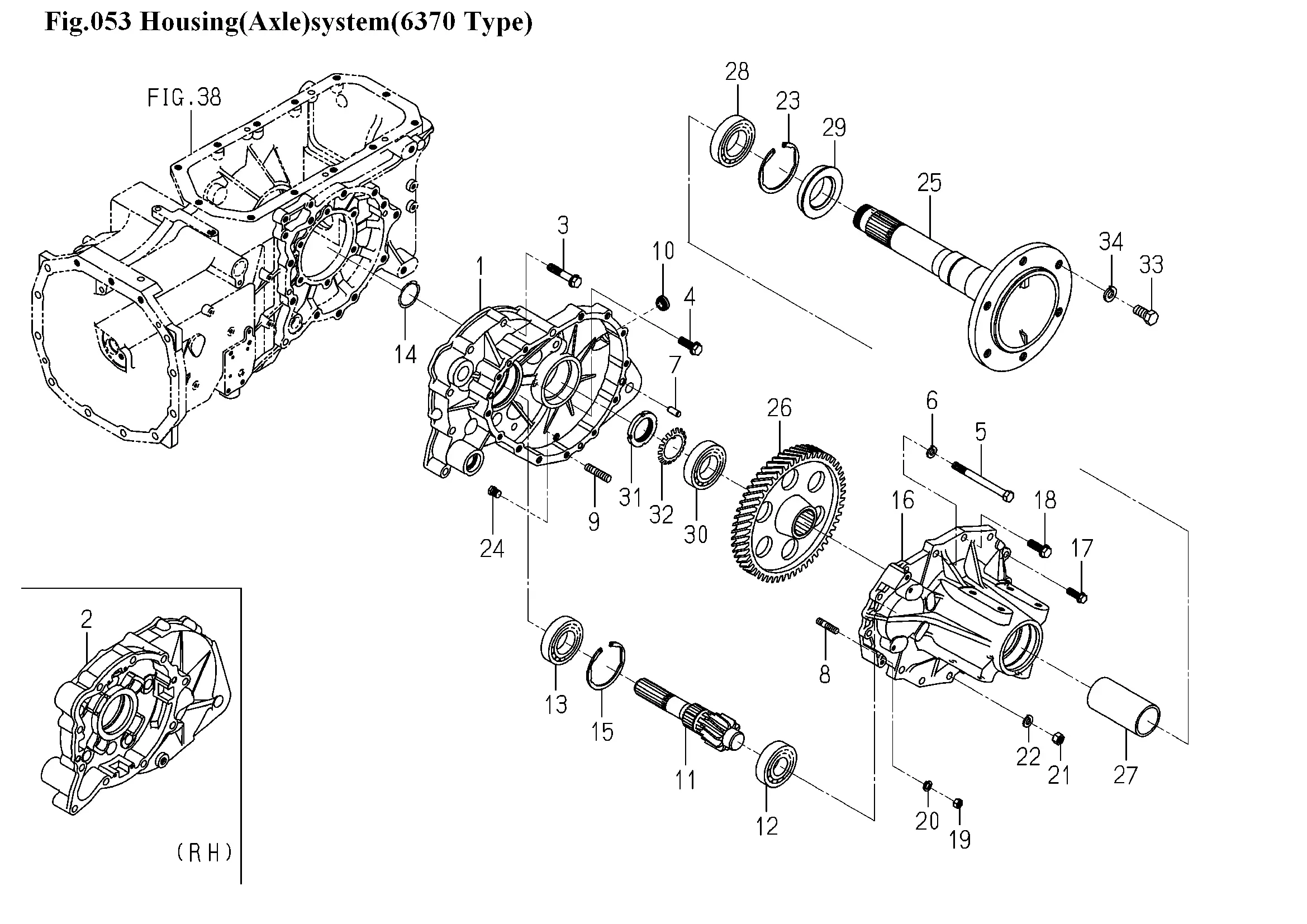

Achsgehäuse, hinten
Ersatzteile (34 Teile)
1
METAL/SPACER/LH
2
METAL/SPACER/RH
3
FLANGEBOLT/M12X60
4
FLANGEBOLT/M12X35
5
BOLT/M12X130/7T
6
WASHER,SP/M12
7
PIN,ST,B/10X24
8
STUD/M10X30/7T
9
STUD/M12X35/7T
10
GAUGE/LEBEL
11
GEAR/HELICAL/10
12
V600-410-630-70
13
BEARING,RB/6209
14
V706-140-045-00
15
RING,SNAP/R85
16
HOUSING/AXLE/AT
17
FLANGEBOLT/M10X30
18
FLANGEBOLT/M12X35
19
V304-460-010-00
20
WASHER,SP/M10
21
V304-460-012-00
22
WASHER,SP/M12
23
V707-140-090-00
24
PLUG/SCREW/SEAL
25
1654-306-001-10
26
1792-306-002-00
27
COLLAR/120
28
BEARING,RB/6210
29
SEAL/OIL ASSY
30
BEARING,RB/6209
31
NUT,ADAPTER/AN09
32
WASHER/BEARING
33
1746-306-001-00
34
1746-306-002-00
