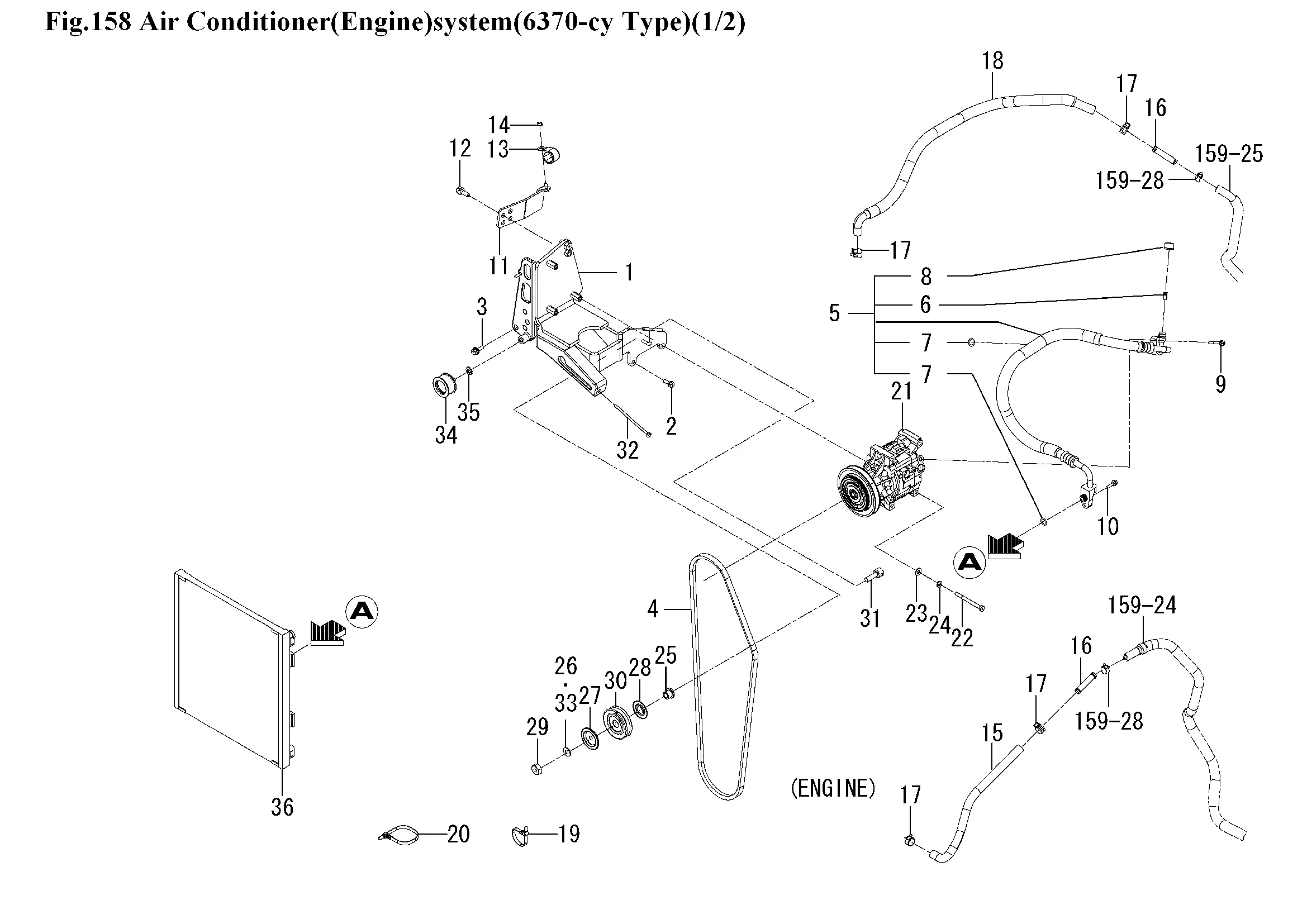

Kompressor, Klimaanlage
Ersatzteile (64 Teile)
1
1795-780-200-20
2
V211-560-802-00
3
V211-660-802-00
4
BELT/V/MP/55
5
1792-780-210-10
6
1729-780-512-00
7
O-RING
8
PLUG
9
V210-360-604-50
10
BOLT/SP
11
1797-780-250-20
12
V211-261-002-50
13
1792-780-004-00
14
NUT/WASHER/M6
15
1716-780-005-20
16
1800-780-007-00
17
CLIP/HOSE/18-22
18
HOSE/HEATER/L/600
19
BAND,WIRE/140
20
1342-402-006-00
21
3824-248-990-20
22
V201-360-808-00
23
WASHER,PL/M8
24
WASHER,SP/M8
25
1599-782-531-10
26
WASHER/W
27
COVER/G1
28
COVER/G2
29
NUT
30
1599-782-540-10
31
SHAFT
32
BOLT/M06X110
33
V411-260-010-00
34
PULLEY/FT/45X20 ASSY
35
WASHER,SP/M10
36
CONDENSER ASSY
37
BOLT/SP
38
1792-780-290-10
39
1792-780-280-40
40
1815-802-001-00
41
1757-780-002-00
42
1757-780-003-00
43
WASHER/6X24X2
44
1815-802-002-00
45
RECEIVER/DRYER ASSY
46
V210-360-602-00
47
1729-780-250-10
48
1759-308-001-00
49
NET/CONDENSER/310X35
50
JOINT/RECEIVER/LH
51
O-RING
52
BOLT/SP
53
PIPE/LIQUID ASSY
54
O-RING
55
BOLT/SP
56
BOLT/S
57
RAIL/NET/CONDENSER
58
BOLT/M6X16X16
59
SCREW/M6X12
60
PIPE/SUCTION ASSY
61
1729-780-512-00
62
O-RING
63
PLUG
64
V210-360-604-50
