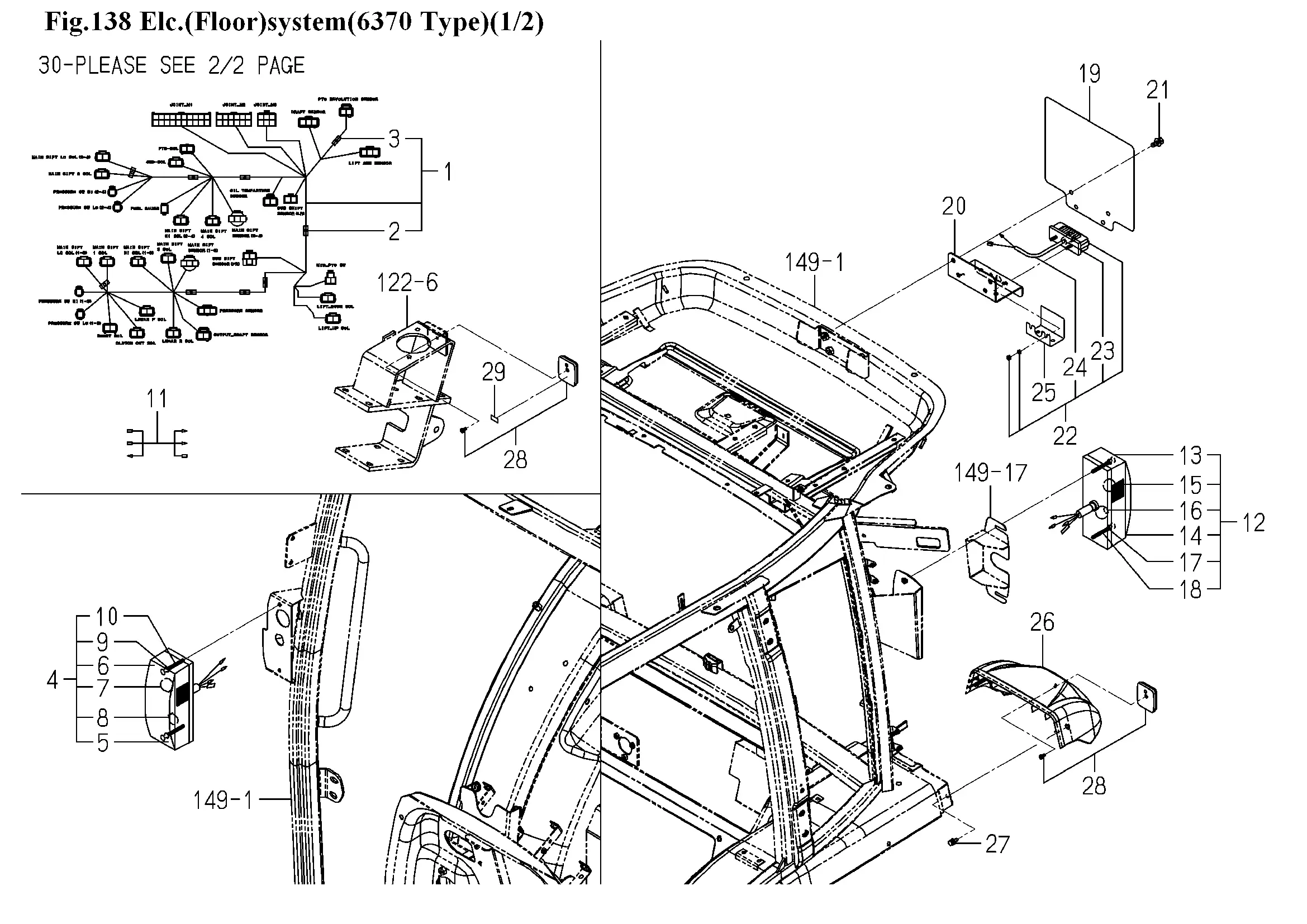

Beleuchtung, hinten
Ersatzteile (52 Teile)
1
1815-654-500-10
2
1800-654-202-00
3
1801-654-201-00
4
LAMP/COMBINATIO ASSY
5
LENS
6
LENS
7
1564-654-213-00
8
1566-656-204-00
9
1792-652-233-00
10
SCREW
11
1801-654-260-00
12
LAMP/COMBINATIO ASSY
13
LENS
14
LENS
15
1564-654-213-00
16
BULB/12V21-5W
17
1792-652-233-00
18
SCREW
19
PLATE/NUMBER/E4
20
PLATE
21
FLANGEBOLT/M8X16
22
LAMP/NUMBERPLAT SET
23
1674-654-271-00
24
HARNESS/LAMP
25
GUARD/LIGHT
26
1792-606-001-10
27
BOLT,SP/M6X16
28
1674-654-400-10
29
1674-654-004-00
30
SENSOR/REVOLUTION/L
31
BOLT,SP/M6X16
32
1732-654-001-00
33
SWITCH/OIL/PRESSURE
34
Sensor
35
BOLT,SP/M6X16
36
SWITCH/PUSH ASSY
37
SENSOR/REVOLUTION/R
38
BOLT,SP/M6X16
39
Bremslichtschalter
40
ARM
41
BOLT,SP/M6X16
42
1815-654-510-00
43
FLANGEBOLT/M6X40
44
1815-654-001-00
45
V210-260-601-00
46
SWITCH,SAFETY ASSY
47
Schraube M4x30
48
Platte
49
BAND,WIRE/140
50
SOCKET/12V ASSY
ob
Taster heben-EHR
ob
Taster senken-EHR
