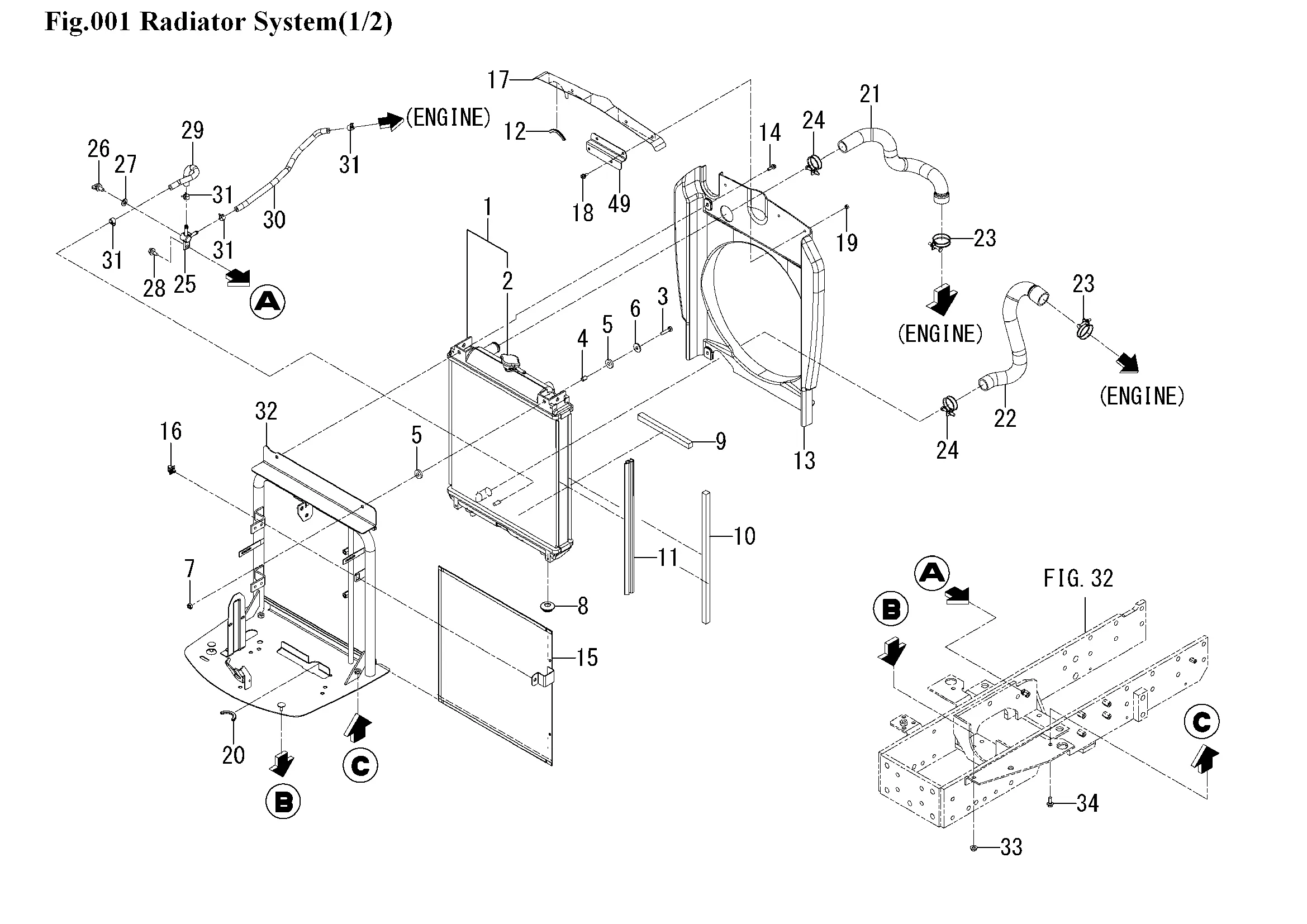

Kühler
Ersatzteile (49 Teile)
1
RADIATOR ASSY
2
CAP
3
V211-360-803-00
4
1824-102-004-00
5
CUSHION/RUBBER/10X25
6
WASHER/24X9X3.2
7
1746-817-001-00
8
BUSH,LEVER
9
INSULATOR/15X15X190
10
INSULATOR
11
INSULATOR/425
12
INSULATOR
13
SHROUD/400
14
V210-660-602-00
15
Netz, Kühler
16
LATCH ASSY
17
1824-102-005-00
18
BOLT/SP
19
V301-260-006-00
20
INSULATOR
21
HOSE/RADIATOR/INLET
22
HOSE/RADIATOR/OUTLET
23
CLAMP/WIRE/36-44
24
J061-230-038-00
25
CONNECTOR
26
1424-101-203-00
27
PACKING
28
BOLT,SP/M8X20
29
HOSE/08X15X220 ASSY
30
Schlauch, 8x15x360
31
J062-138-148-00
32
1834-102-200-00
33
1746-816-001-00
34
FLANGEBOLT
35
8664-555-065-00
36
Haken
37
WASHER,PL/M8
38
1719-312-001-00
39
SPRING/HT020
40
1801-102-290-30
41
PIN/SNAP
42
RESERVETANK ASSY
43
CAP
44
PACKING
45
1690-102-214-00
46
1690-102-215-00
47
1690-102-216-00
48
HOSE/RUBBER
49
1834-102-240-00
