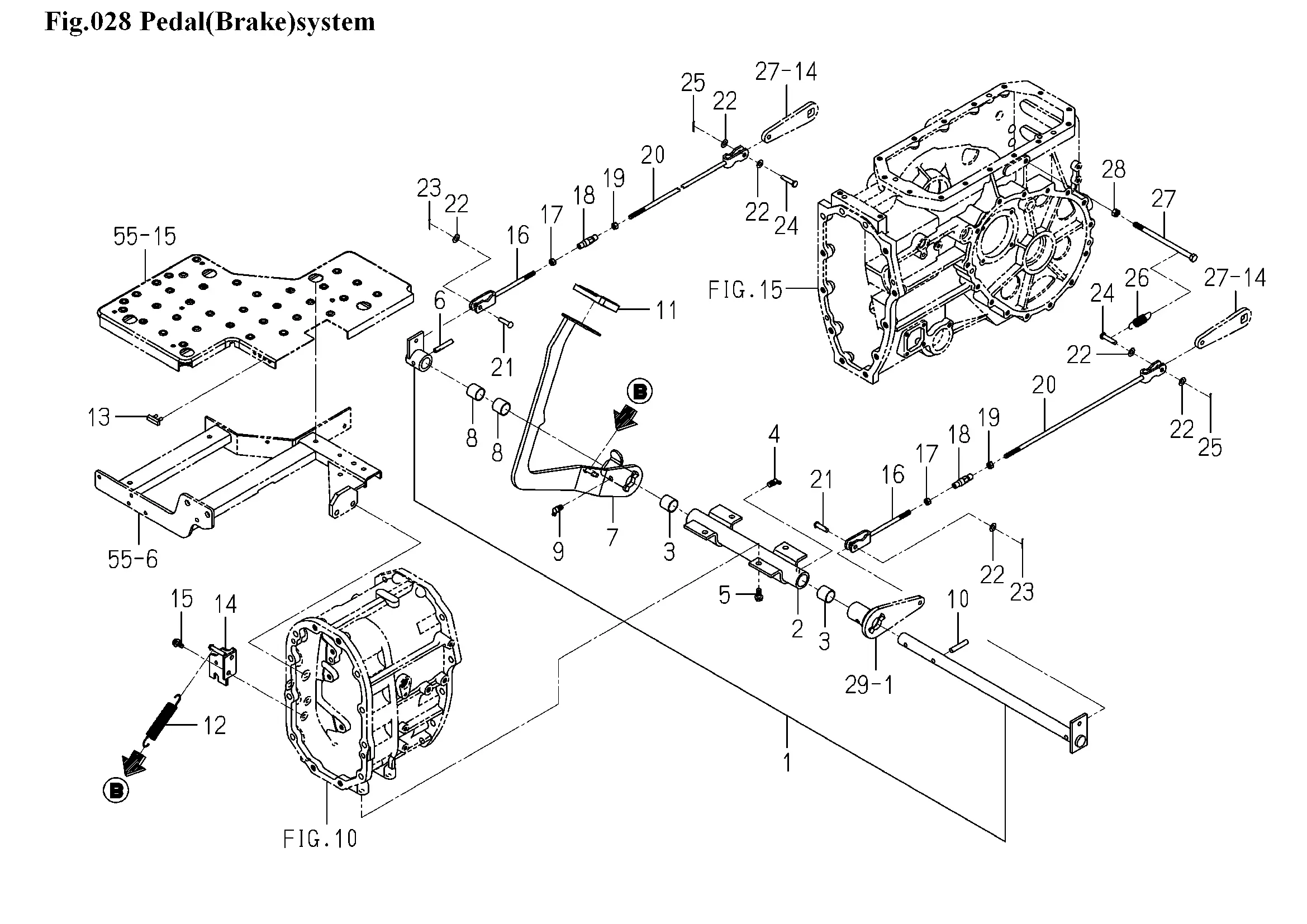

Pedal, Bremse
Ersatzteile (28 Teile)
1
1834-312-500-00
2
1821-312-260-00
3
BUSH/25X28X25
4
NIPPLE,GREASE/PT1/8
5
BOLT,S/M10X20/7T
6
PIN,TAPER/8X50
7
1834-312-530-00
8
BUSH/25X28X25
9
NIPPLE,GREASE/PT1/8
10
1776-312-004-00
11
PAD
12
SPRING/HE108
13
INSULATOR
14
1834-312-550-00
15
FLANGEBOLT/M8X16
16
1696-135-230-10
17
NUT/LH/M08
18
TURNBUCKLE/M8
19
NUT/M8
20
1773-312-260-10
21
PIN,YOKE A
22
WASHER,PL/M8
23
PIN,SPLIT/2X20
24
PIN/8X36
25
PIN,SPLIT/2.5X20
26
SPRING/HE066
27
V201-261-017-00
28
NUT/M10
