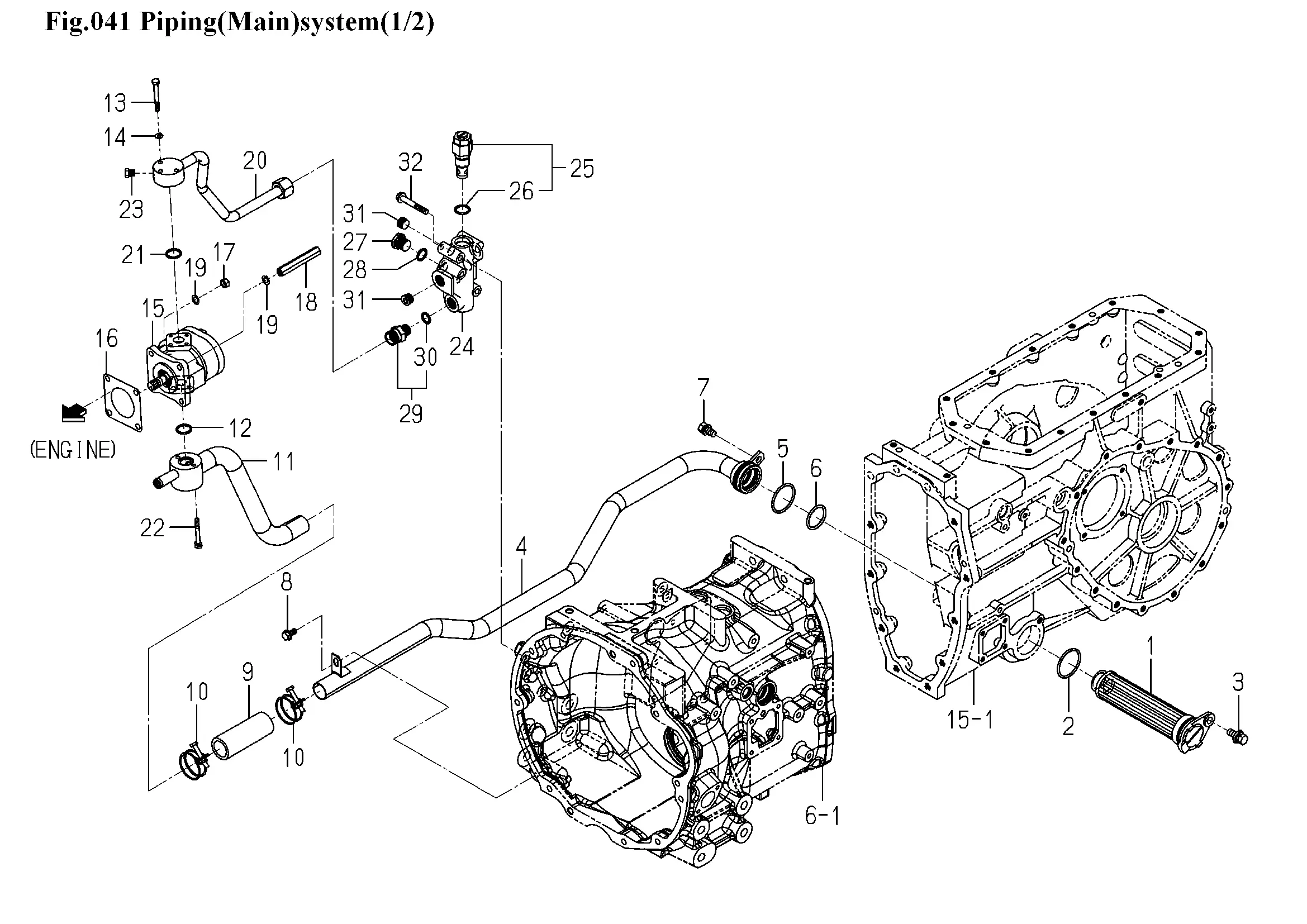

Hydraulikpumpe, Hydraulikleitung
Ersatzteile (70 Teile)
1
1805-508-260-00
2
O-RING/1A,G45
3
BOLT,SP/M10X25
4
1805-508-210-20
5
O-RING/1A,G45
6
O-RING/1A,G35
7
BOLT,S/M10X20/7T
8
FLANGEBOLT/M8X16
9
1824-508-003-00
10
J061-232-040-00
11
1834-508-220-00
12
O-RING/1B,P20
13
BOLT/M6X55/7T
14
V401-160-006-00
15
Hydraulikpumpe, kpl.
16
PACKING,OIL PUMP
17
NUT/M8
18
NUT/M08
19
WASHER,SP/M8
20
Hydraulikleitung
21
O-RING/1B,P20
22
BOLT,S/M6X35/7T
23
PLUG/SCREW/SEAL
24
1805-508-311-00
25
VALVE/RELIEF/07 ASSY
26
O-RING/1B,P20
27
PLUG/M18
28
O-RING/1B,P16
29
1729-508-290-20
30
O-RING/1B,P14
31
PLUG/SCREW/SEAL
32
FLANGEBOLT/M8X55
33
1834-508-510-00
34
1729-508-290-20
35
O-RING/1B,P14
36
1834-508-051-00
37
1710-508-551-01
38
HOLDER/PIPE
39
FLANGEBOLT/M8X16
40
1773-508-320-01
41
HOLDER/PIPE
42
1710-508-551-01
43
V231-360-803-50
44
1834-508-520-00
45
1729-508-290-20
46
O-RING/1B,P14
47
CONTROL VALVE ASSY
48
K211-026-100-00
49
SPRING
50
SPRING
51
PLUG
52
O-RING/1B,P12
53
PLUG/SCREW/SEAL
54
V211-260-804-00
55
O-RING/1B,P14
56
VALVE
57
O-RING/1B,P12
58
O-RING/1B,P18
59
K231-008-000-20
60
O-RING/1B,P10A
61
RING/BACK UP
62
COLLAR/11X21X03
63
RING/SNAP
64
SEAL,DUST
65
O-RING/1B,P22
66
O-RING/1B,P16
67
1821-508-003-00
68
NUT/M10
69
HANDLE,ADJUST
70
V111-164-001-60
