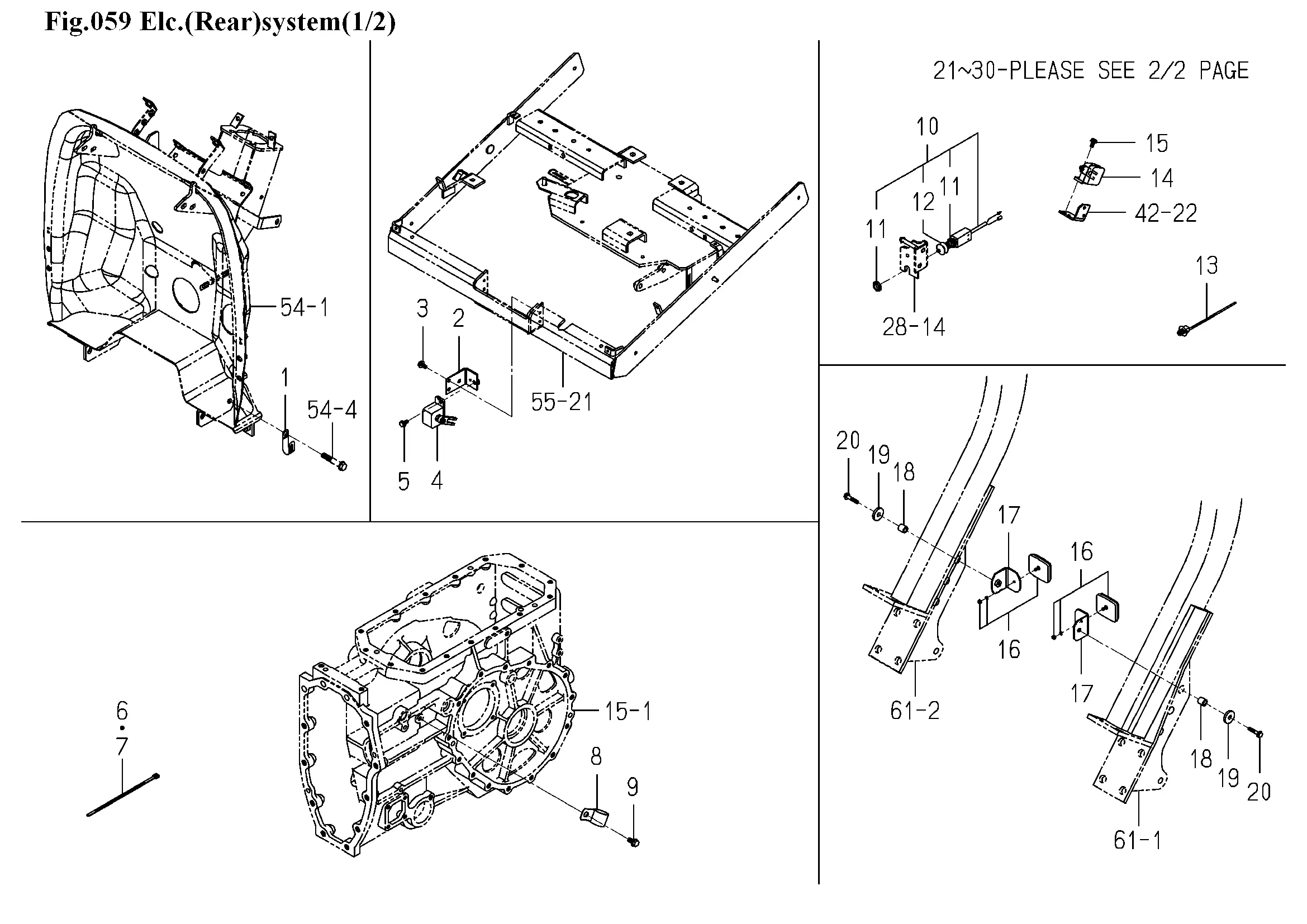

Schalter, Beleuchtung
Ersatzteile (40 Teile)
1
CLAMP,HARNESS
2
1821-654-200-00
3
FLANGEBOLT/M6X12
4
Schalter
5
FLANGEBOLT/M6X12
6
BAND,WIRE/140
7
BAND,WIRE/140
8
CLIP B
9
FLANGEBOLT/M8X16
10
1772-654-280-10
11
1772-654-281-00
12
BOOT
13
1725-690-071-00
14
Schalter (Gabel 3 Positionen)
15
FLANGEBOLT/M6X12
16
1674-654-400-10
17
1834-654-220-00
18
3805-632-001-00
19
3814-440-006-00
20
FLANGEBOLT/M6X30
21
LAMP/COMBINATION/REA
22
INSULATOR/LAMP
23
1834-654-230-00
24
TRIM/70
25
PLUG/7P
26
HARNESS/SOCKET ASSY
27
1650-654-036-00
28
V120-265-003-00
29
LAMP/NUMBERPLAT SET
30
1674-654-271-00
31
HARNESS/LAMP
32
GUARD/LIGHT
33
PLATE
34
FLANGEBOLT/M8X16
35
PLATE/NUMBER/E4
36
BOLT,SP/M8X20
37
Kombimutter-M8
38
HOLDER/JE/9-9
39
HOLDER/JE/9-9
40
V231-360-801-20
