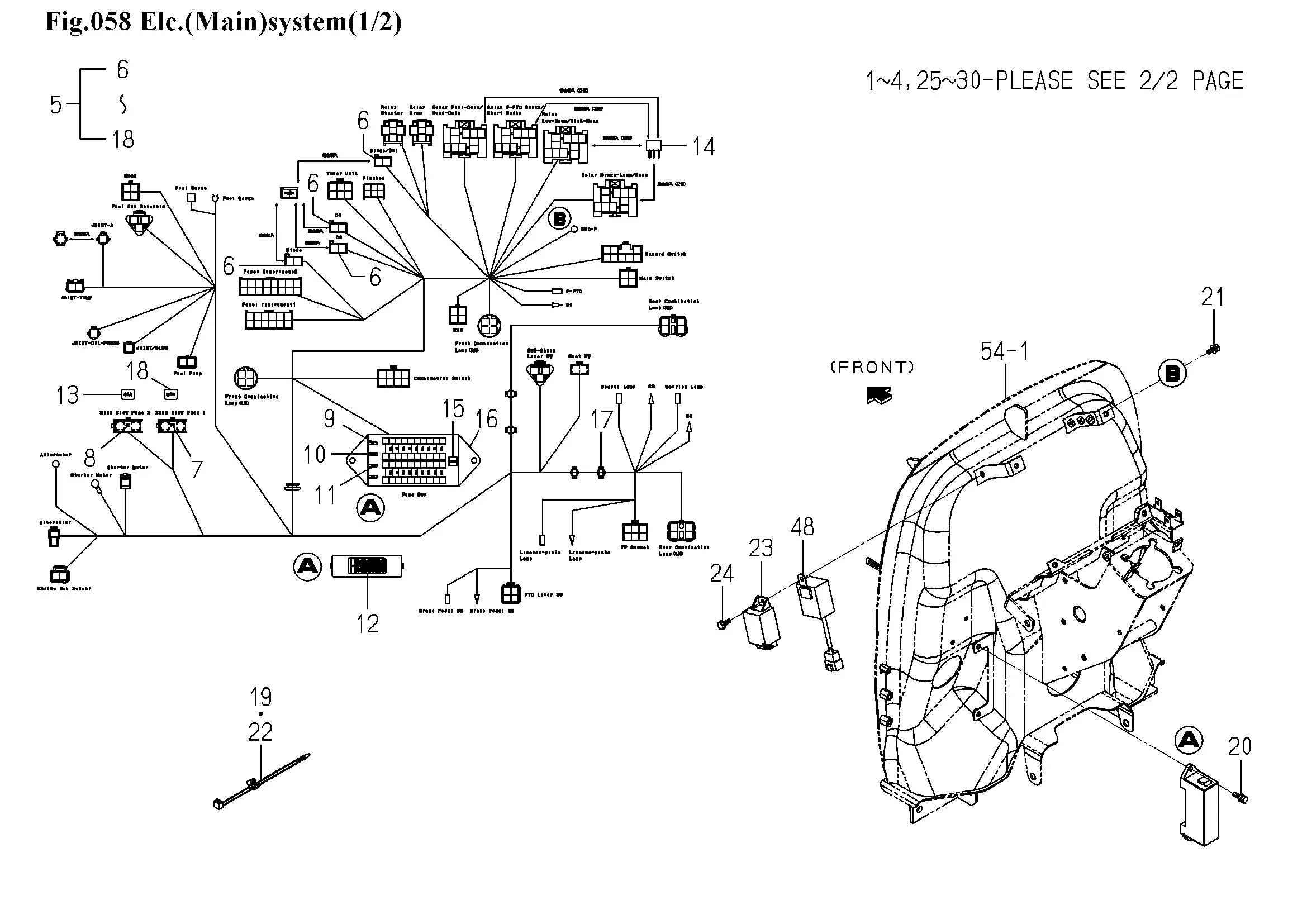

Kabelbäume, Relais
Ersatzteile (48 Teile)
1
1716-680-200-20
2
KEY
3
NUT/RING
4
COVER/SWITCH
5
Kabelbaum kpl.
6
DIODE
7
FUSE/SLOW BLOW/50A
8
FUSE/SLOW BLOW/40A
9
FUSE/BLADE/32V05A
10
FUSE/BLADE/32V10A
11
FUSE/BLADE/32V15A
12
1834-652-501-10
13
1834-652-502-00
14
RELAY/5P ASSY
15
TOOL/FUSE
16
COVER/FUSE
17
1805-652-207-00
18
1834-652-503-00
19
1560-666-004-00
20
V210-660-602-00
21
V210-660-601-60
22
1560-666-004-00
23
1739-681-220-10
24
FLANGEBOLT/M6X16
25
1834-652-210-00
26
V231-360-802-00
27
SWITCH/HAZARD ASSY
28
BULB/LAMP/14V60MA
29
SWITCH/COMBINATION/E
30
Kombischalter, Blink,Licht,Hupe
31
1544-623-232-00
32
LEVER
33
KNOB
34
BOOT/HORN
35
1738-680-211-00
36
1738-680-212-00
37
V120-365-001-60
38
RELAY ASSY
39
1757-730-004-00
40
LAMP/COMBINATION/FRO
41
1674-654-211-00
42
Glühlampe 12V _SW
43
1772-654-221-00
44
1772-654-222-00
45
1772-654-223-00
46
1725-690-071-00
47
BAND,WIRE/140
48
RELAY/CONTROL/ENGINE
