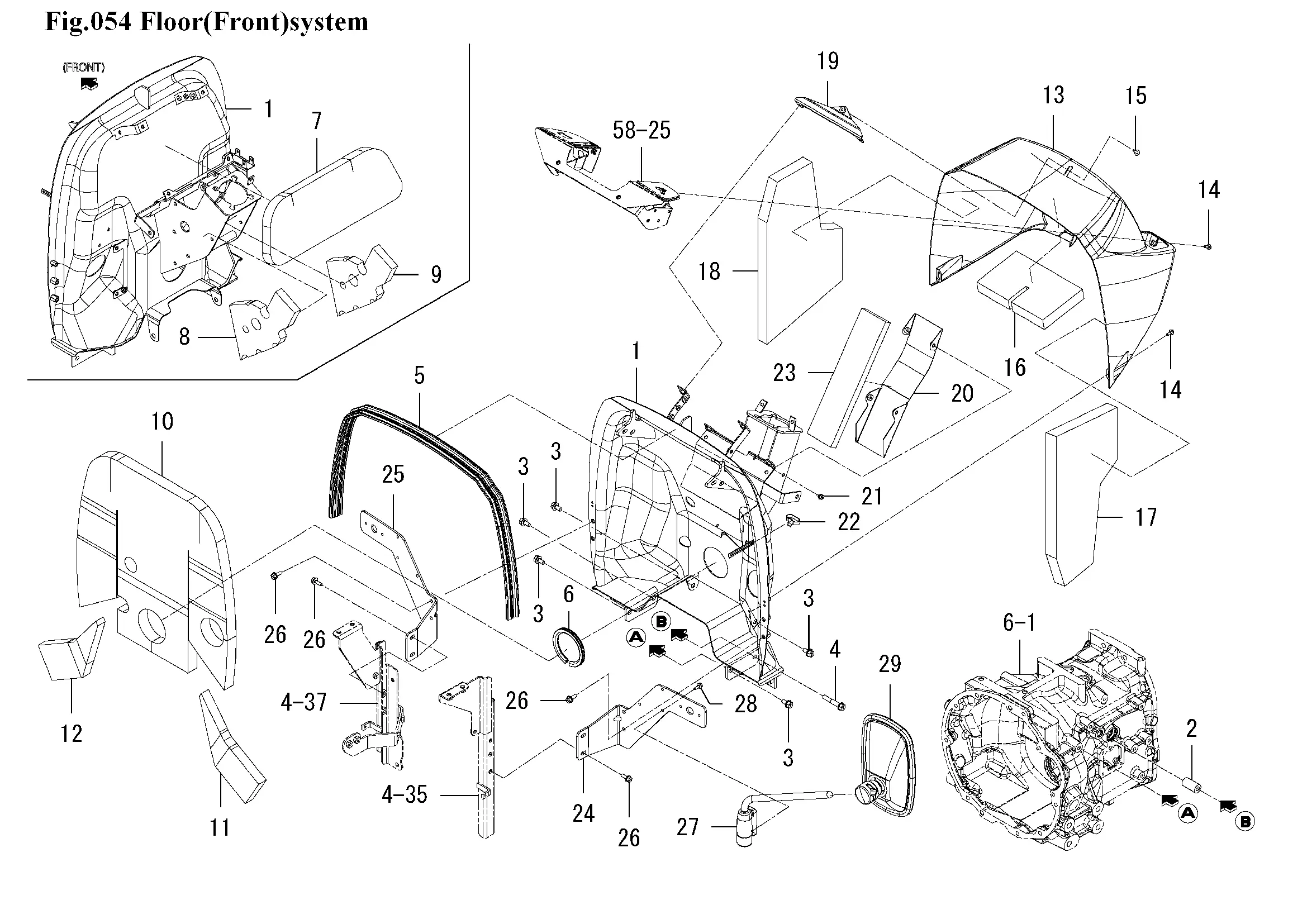

Konsole, Spiegel
Ersatzteile (29 Teile)
1
1834-630-200-00
2
1834-630-001-00
3
V231-361-001-60
4
V231-361-005-50
5
1805-630-002-00
6
1764-603-002-00
7
1834-630-021-00
8
1834-630-023-00
9
1834-630-024-00
10
1834-630-026-00
11
1834-630-027-00
12
1834-630-028-00
13
COVER/DASH
14
SCREW,SP/M6X16
15
SCREW/TRUSS/M06X16
16
1834-630-022-00
17
1834-630-032-00
18
1834-630-033-00
19
PLATE/DASH/E1 COMP
20
1821-630-250-00
21
V210-360-601-20
22
1560-666-004-00
23
1834-630-025-00
24
PLATE/MIRROR/LH
25
PLATE/MIRROR/RH
26
V231-360-802-00
27
ARM/MIRROR ASSY
28
FLANGEBOLT/M6X16
29
MIRROR ASSY
