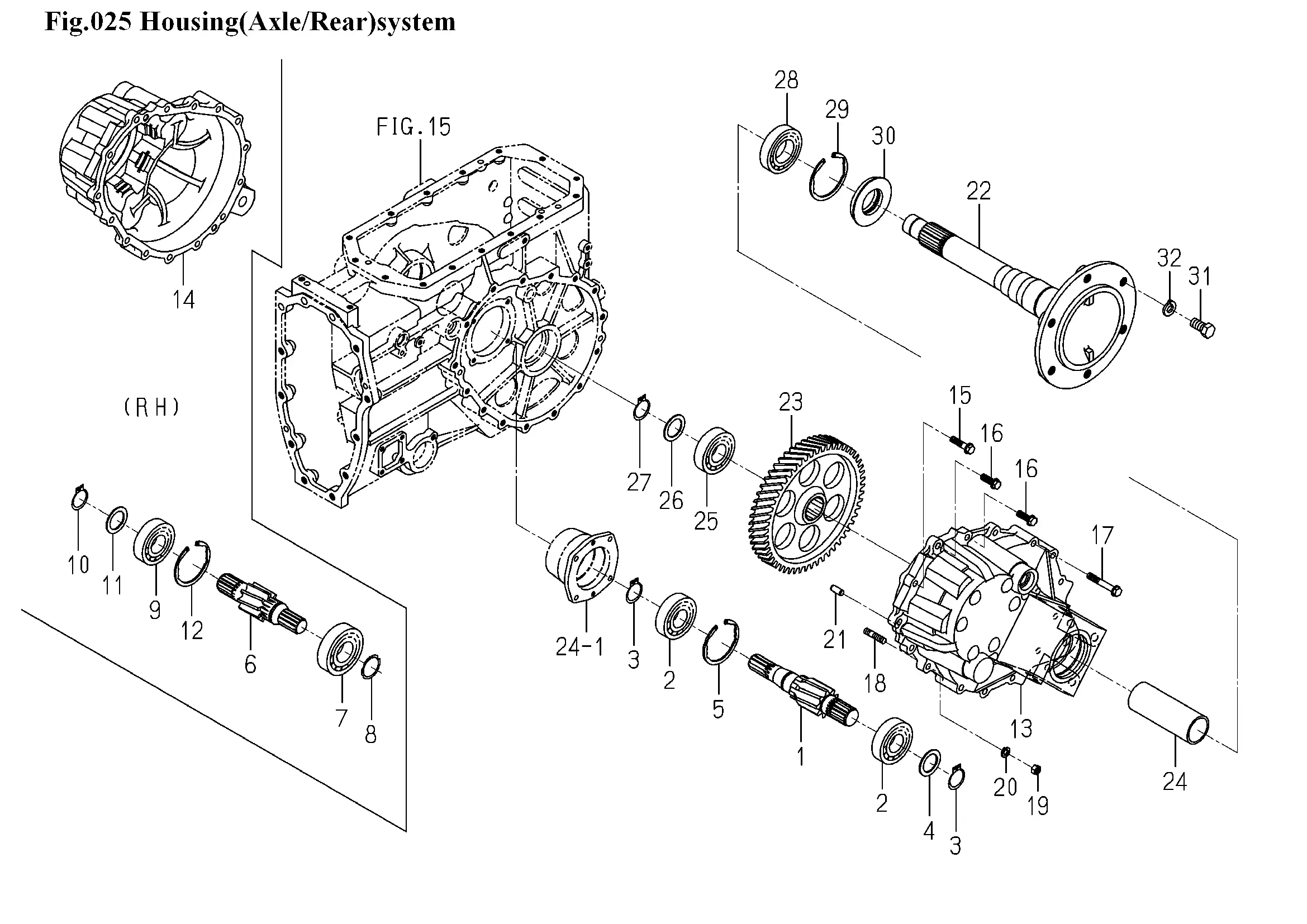

Achstrichter, Antriebswellen, hinten
Ersatzteile (32 Teile)
1
1805-306-001-20
2
V600-410-630-70
3
RING,SNAP/35 C
4
1824-306-005-00
5
RING,SNAP/R80
6
1805-306-002-20
7
BEARING/BALL/6308C
8
RING,SNAP/S40
9
V600-410-630-70
10
RING,SNAP/35 C
11
1824-306-005-00
12
RING,SNAP/R80
13
1821-306-006-00
14
1821-306-007-00
15
V231-361-004-00
16
FLANGEBOLT/M10X30
17
V231-361-006-50
18
STUD/M10X30/7T
19
V304-460-010-00
20
WASHER,SP/M10
21
PIN,ST,B/10X24
22
SHAFT/WHEEL/E4
23
1805-306-003-10
24
COLLAR/46X54X146
25
V600-410-630-70
26
1824-306-005-00
27
RING,SNAP/35 C
28
BEARING/BALL/6209C
29
RING,SNAP/R85
30
1550-307-005-00
31
1746-306-001-00
32
1746-306-002-00
