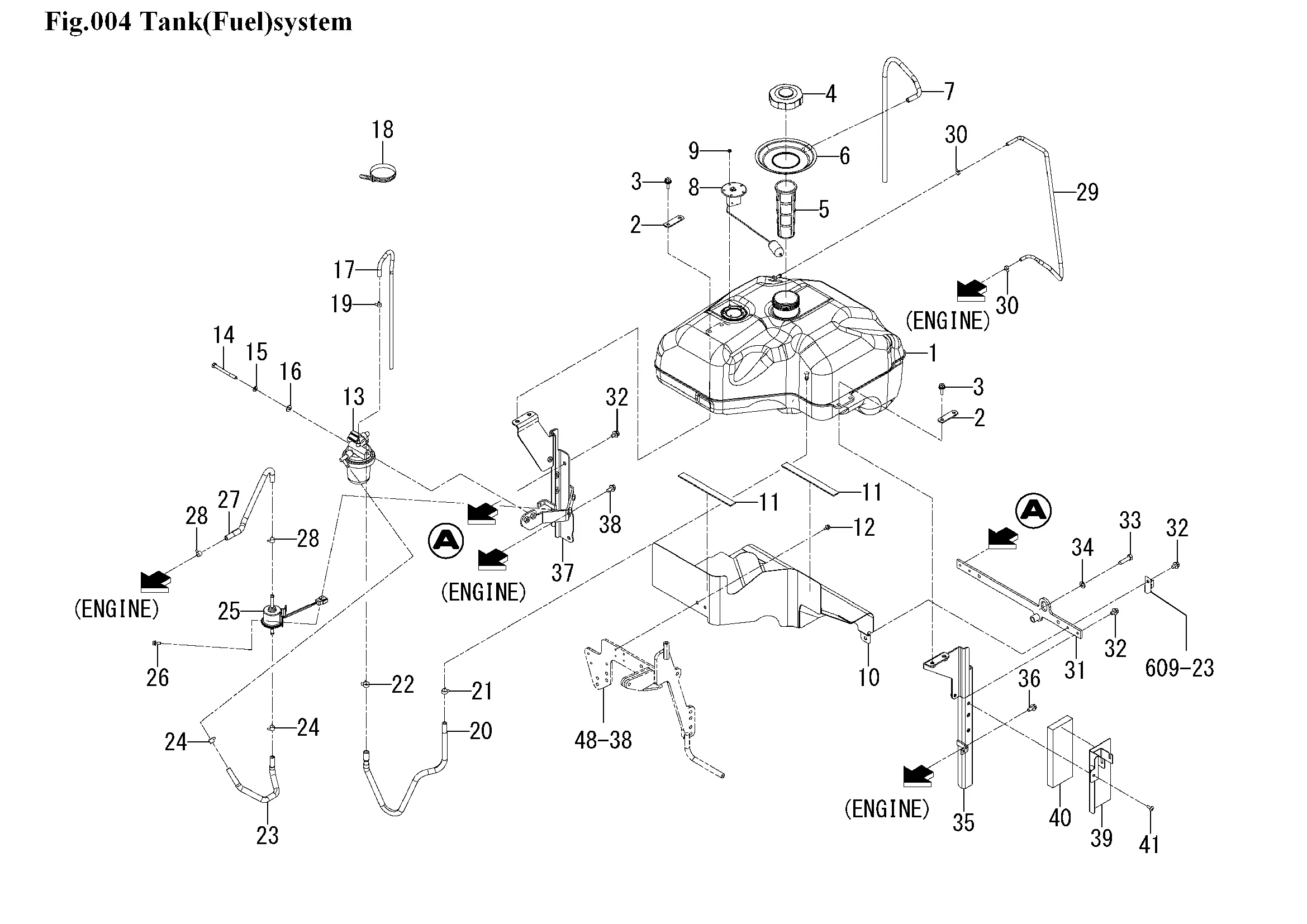

Kraftstofffilter, -Pumpe, Tank
Ersatzteile (41 Teile)
1
1824-111-001-00
2
1729-111-007-00
3
BOLT,SP/M8X25/7T
4
CAP/FUEL ASSY
5
FILTER/FUEL
6
CUP/FUEL
7
HOSE/700
8
GAUGE/FUEL ASSY
9
V360-260-004-00
10
1824-111-210-20
11
1836-111-006-00
12
V210-660-601-60
13
FILTER/FUEL ASSY
14
BOLT/M8X80
15
WASHER,SP/M8
16
WASHER,PL/M8
17
PIPE
18
BAND,WIRE/140
19
CLIP/HOSE/8.7-9.3
20
HOSE/FUEL/630 ASSY
21
CLIP/HOSE/12.6-13.4
22
J062-138-148-00
23
HOSE/08X13X300
24
1650-111-034-00
25
PUMP/FUEL ASSY
26
V210-660-601-60
27
HOSE/08X13X300
28
1650-111-034-00
29
HOSE/FUEL/900 ASSY
30
CLIP/HOSE/8.7-9.3
31
1834-111-270-00
32
V211-660-801-60
33
V203-361-003-50
34
WASHER,SP/M10
35
1834-111-220-00
36
V211-660-802-00
37
1834-111-230-00
38
V211-660-802-00
39
1834-111-210-00
40
1834-111-010-00
41
SCREW/TRUSS/M06X16
